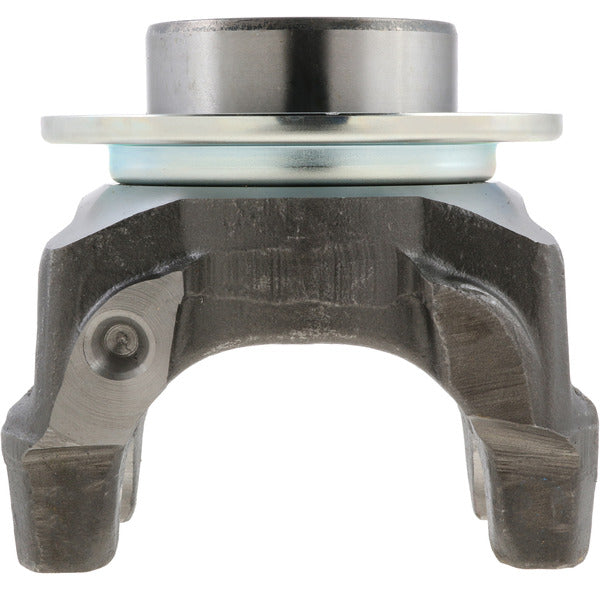

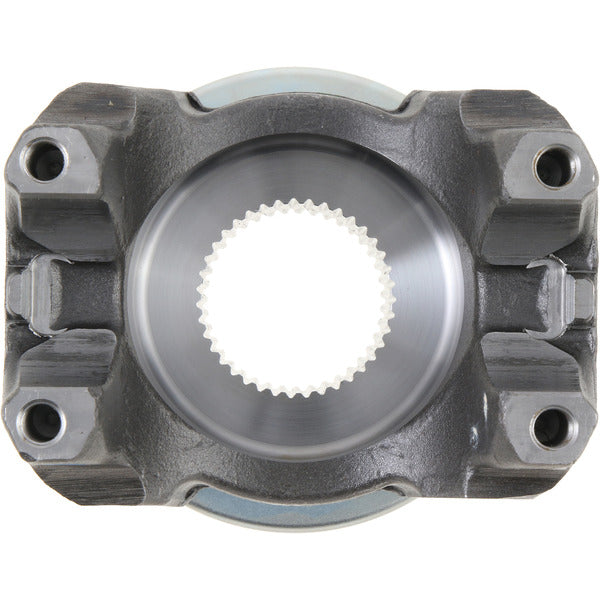

Spicer 1100-4-1551-1X End Yoke

Vendor: Spicer/Dana, Sku: 100-4-1551-1x

Previous Product | Next Product
Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications

U-Joint Series: SPL 100
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.625 Inch
U-Joint Width (B): 4.957 Inch
End Yoke Length(C) :
- Center Line to End of Spline 		4.75 Inch
Hub Diameter (D): 3.000 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point 		2.024 Inch
Number of Splines (F): 39
Bore Length (G): 2.281 Inch
Counter Bore Depth: 0.25 Inch

VMRS: 022003072


How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****


For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:
CONTACT US |  CHAT | (574) 287-9650

Sku: 100-4-1551-1x
Vendor: Spicer/Dana
$205.22
