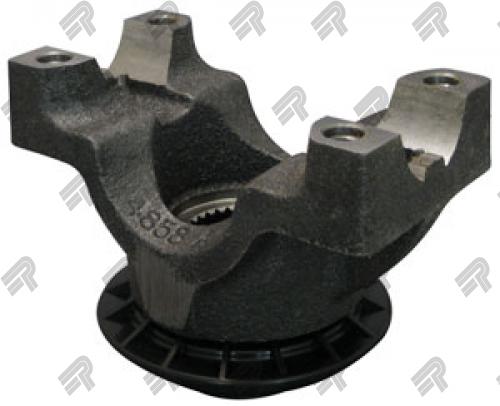

PTI 4104-03 End Yoke

Vendor: PTI, Sku: 4104-03

Previous Product | Next Product
Product Description

Drive Shaft End Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.


U-Joint Series: 1410
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 4.188 Inch
End Yoke Length(C) :
- Center Line to End of Spline 		3.525 Inch
Hub Diameter (D): 1.812 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point 		1.343 Inch
Number of Splines (F): 31
Bore Length (G): 1.640 Inch
Rear Axle Type:
Ford 10.50 Inch
Ford 9.75 Inch
Ford OEM Number:
F81Z4851AB
VMRS: 024001003


How to Measure a Driveshaft Slip Yoke.

Applications for the Ford 10.5"
    Excursion: 2000 - 2004 (Rear)
    F250: 1999 - 2005 (Rear)
    F350: 1999 - 2004 (Rear)

Ford OEM#: F81Z4851AB



****

This part is compatible with:
Strap Kit: Spicer 3-70-28X U-Joint Strap Kit

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
