Spicer 3-3-7001X Slip Yoke

Vendor: Spicer/Dana, Sku: 3-3-7001X

Product Description

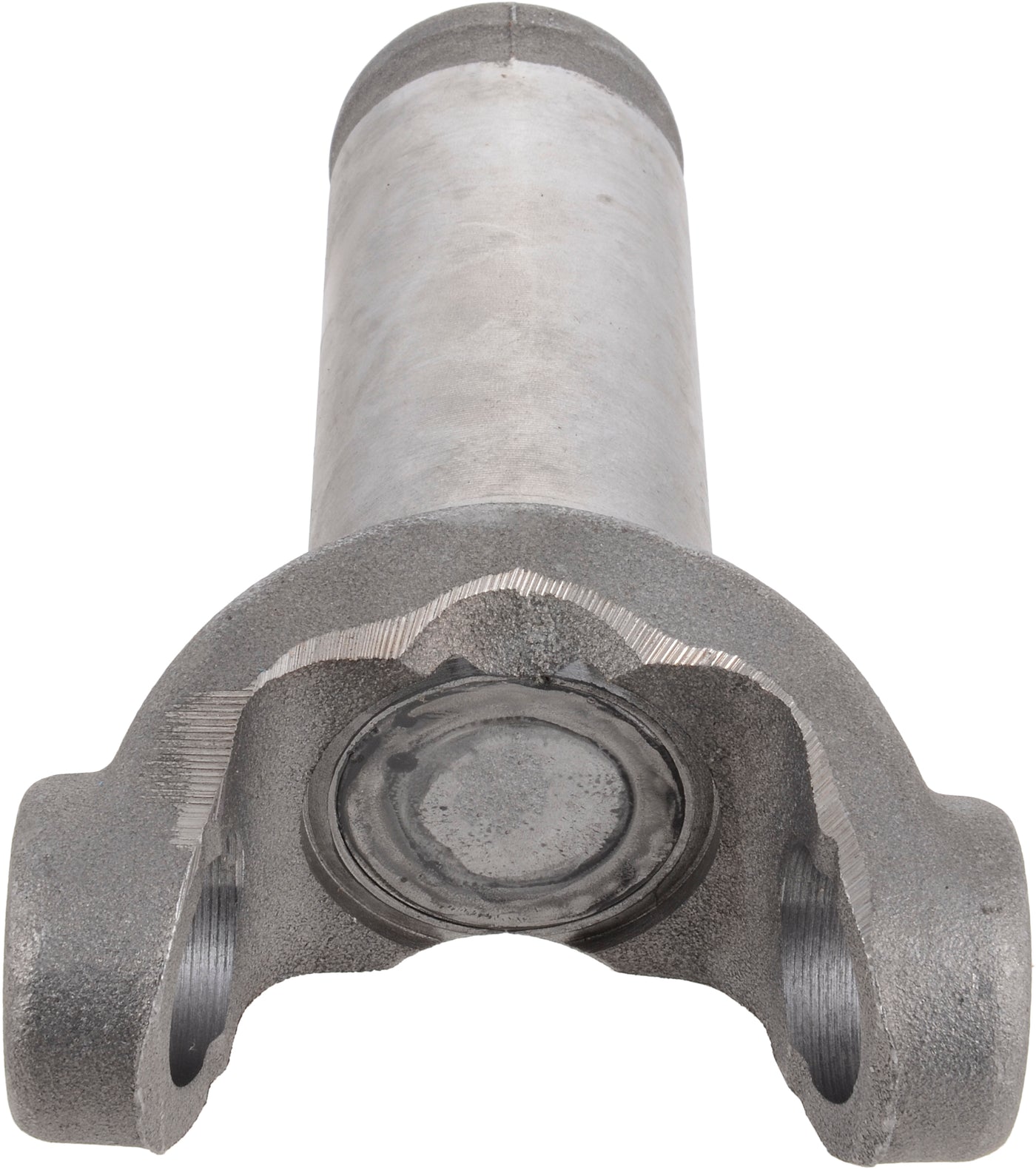

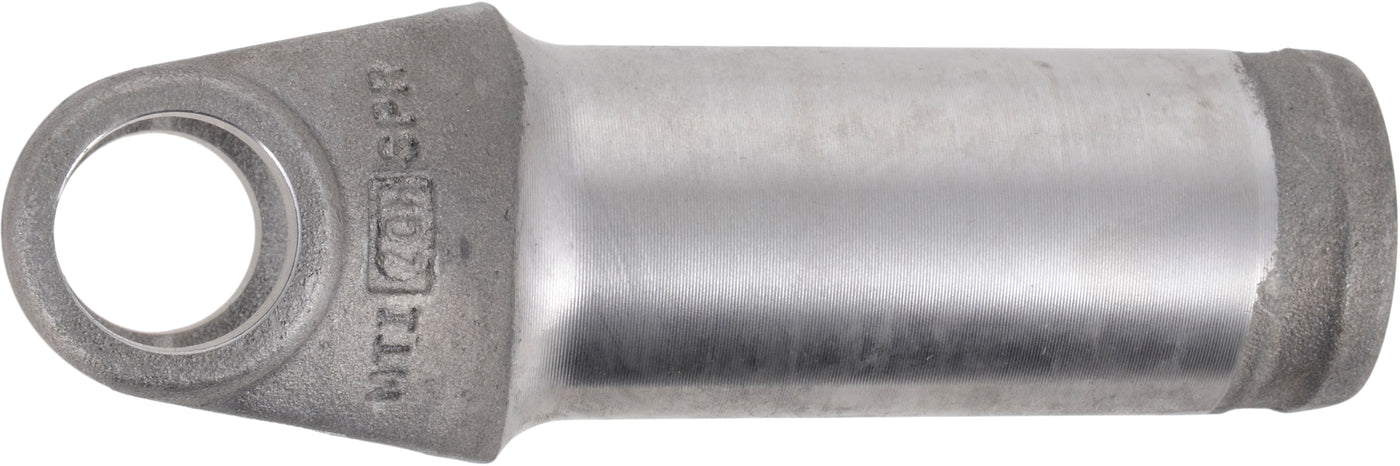

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1410
U-Joint Lock Up (B): 4.188 Inch
U-Joint Cap Diameter (A): 1.188 Inch
Style: Outside Snap Ring
Center Line to End of Spline (C): 6.720 Inch
Center Line to Face Plug: 1.220 Inch
Spline Outside Diameter (E): 1.587 Inch
Spline Count (F): 23/24
Greasable: No
Material: Steel

VMRS: 024002038Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Alternate Part Numbers / Interchanges:
Neapco N3-3-7001X Slip Yoke Assembly

Compatible parts:
Spicer 3-53-2571 Midship Tube Shaft
Spicer 212007X Boot Kit

Sku: 3-3-7001X
Vendor: Spicer/Dana
$96.07
