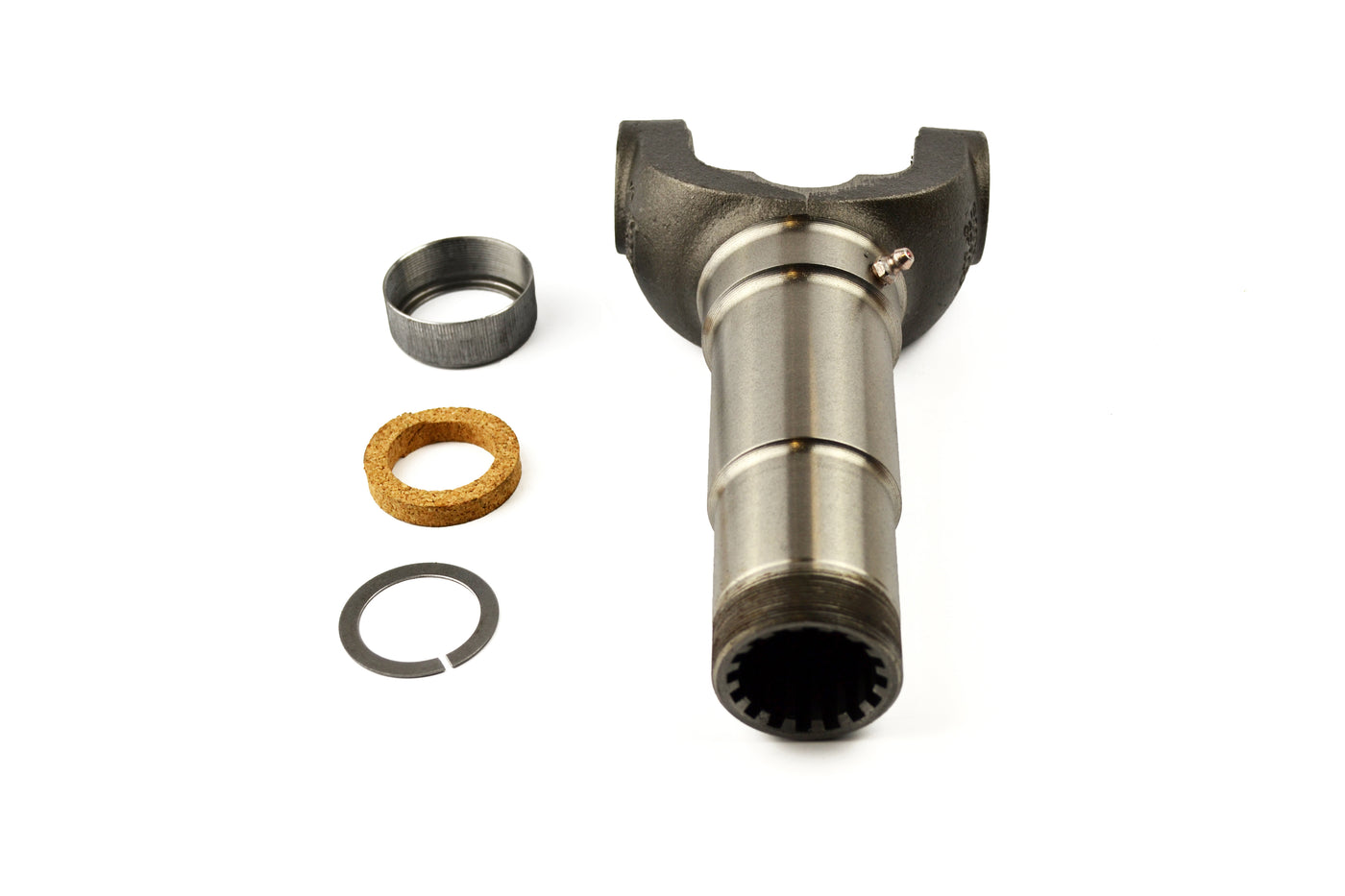

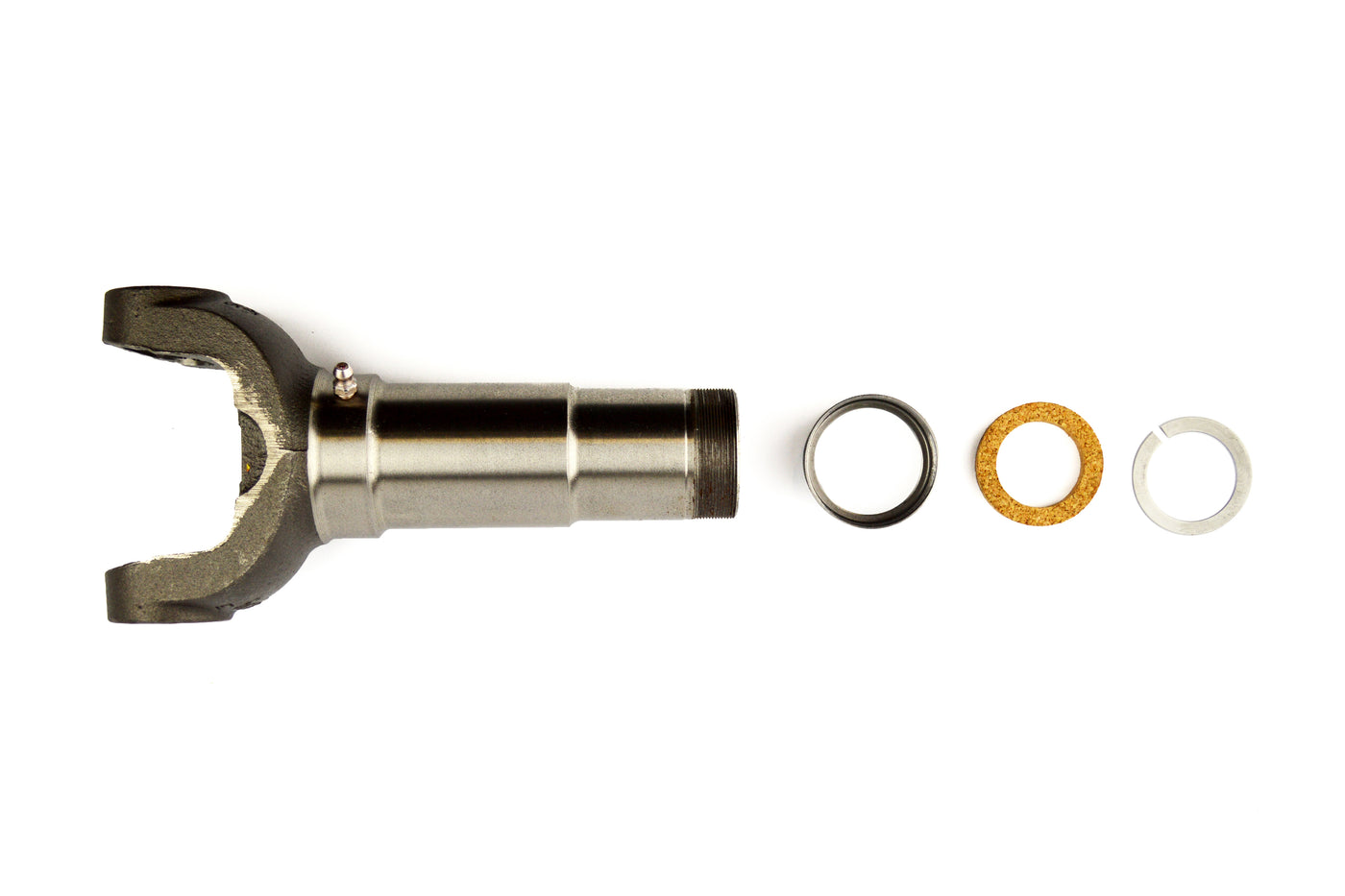

Spicer 3-3-508KX Slip Yoke

Vendor: Spicer/Dana, Sku: 3-3-508KX

Previous Product | Next Product
Product Description

Mid Drive Shaft Slip Yoke

 This part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650


Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1410
U-Joint Width (B): 4.188 Inch
U-Joint Cap Diameter (A): 1.188 Inch
Center Line to End of Spline (C): 7.812 Inch
Center Line to Face of Plug: 1.344 Inch
Spline Outside Diameter (E): 1.500 Inch
Spline Count (F): 16
Greasable: Yes - Greasable
Joint Angle: 28.0 Degree
Material: Steel
Dust Cap: D3A

VMRS: 024002038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Alternate Part Numbers / Interchanges:
Neapco N3-3-508KX Slip Yoke Assembly
PTI P3-3-508KX Slip Yoke Assembly

Compatible Parts:
Spicer D3A Slip Yoke Dust Cap

Sku: 3-3-508KX
Vendor: Spicer/Dana
$98.48
