Neapco N20RLS40-2A1S Slip Yoke

Vendor: Neapco, Sku: N20RLS40-2A1S

Product Description

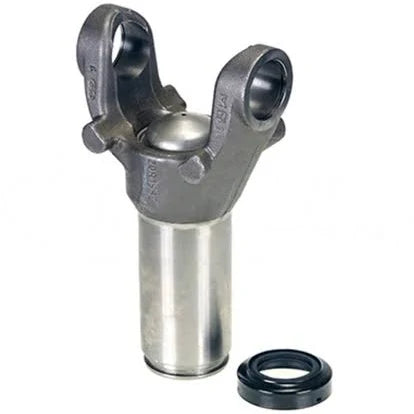

Drive Shaft Slip Yoke

Specifications

U-Joint Series:	20R
Bearing Cap Diameter (A):	2.06 Inch
U-Joint Width (B):	6.88 Inch
CL to End of Spline (C):	11.45 Inch
CL to Face of Washer:	2.92 Inch
Joint Angle:	32 Degrees
Spline Diameter (E):	2.500 Inch
Spline Count (F):	16

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Sku: N20RLS40-2A1S

Vendor: Neapco

$563.26

Maximum quantity available reached.
