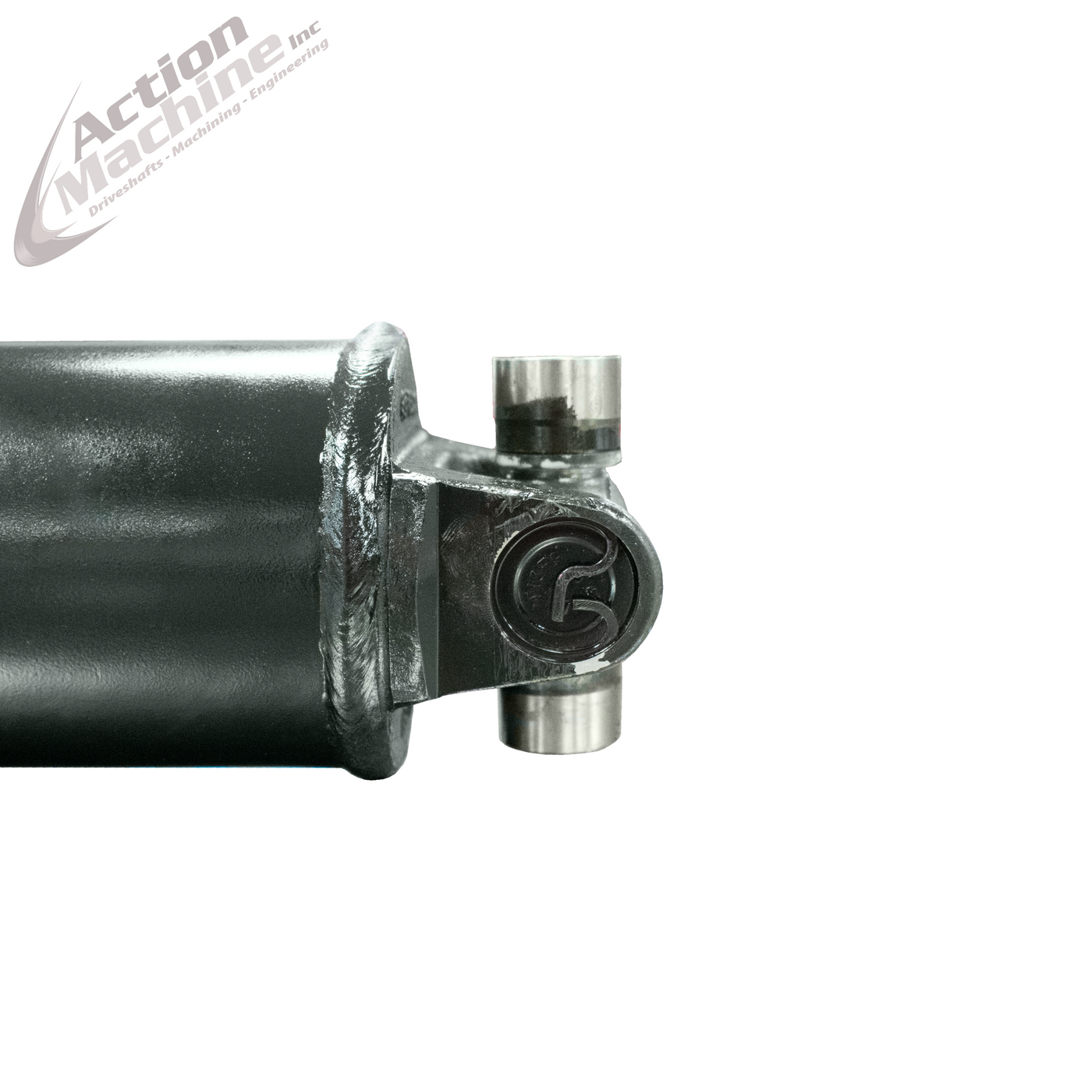

Custom Driveshaft & Slip Yoke - 4" Stl. 1350, GM 32 Spline (Short) (Sku: 4S1350-P(short))

Exceeding Industry Standards

Quality Steel Driveshafts


Our steel driveshafts are made from the finest driveline quality tubing which makes our driveshaft stronger and straighter from the start compared to regular cold rolled tubing. Steel is our most popular material choice due to its versatility, high strength and economical price. Driveshafts are checked in special computer software to ensure that shaft design, dimensions, and critical speeds will suit your application. Our shafts are high speed balanced on the latest driveline manufacturing equipment with balance weight allowances far less than OEM specs.


  • Quality Steel
  • Precision Balanced
  • Variable Length Options
  • Lifetime Weld Warranty
  • Premium Spicer U-Joints
  • Turn Around 1 Week
  • Product Description

    Custom Driveshaft with Slip Yoke

    FREE GROUND SHIPPING INSIDE THE USA
    (This product does not qualify for international shipping)

    Driveshaft Specifications:

    Weld Yoke Material: Forged Steel
    Tube Material: 0.083 Inch Wall DOM Seamless
    Tube Outside Diameter: 4.0 Inch Outside Diameter
    (Measuring Guide - Tube OD)
    U-Joint: Spicer/Dana 1350 Series
    Premium Non-Greasable
    U-Joint Size: 1 3/16" Cap x 3 5/8" Span
    (Measuring Guide - U-Joint)
    Max HP: 1000
    Max Custom Length: Up to 68 inches - Center to Center of U-Joint
    (Measuring Guide - Driveshaft Length)
    Trans Make: P Short General Motors / Chevrolet
    Transmissions Model: 4L80-E, BorgWarner T-10, M20, M21, M22, RICHMOND, TH-400 (Short), Turbo 400 (Short)
    Slip Yoke:
    Spline Count: 32
    Barrel Diameter: 1.875 Inch
    Slip Yoke Length: 5.500 Inch
    Outside Slip Yoke

    Required Driveshaft Measurements:


    Measururing Guide

    Driveshaft Length - Measurement (A):
    Measure from end of rubber seal or boot extension on the transmission to the flat face of the end yoke or flange on the differential.

    Spline Extrusion Length - Measurement (B):
    Measure from end of rubber seal or boot extension to end the of the transmission output. If spline is recessed in rubber seal, measurement can be noted as ø.



    Driveshaft Package Options:


    Reusing Your Parts

    If you choose to reuse your slip yoke (and flange) include a copy of your order receipt with your parts. Mail your package in a prepaid, insured and traceable method to this address:

    Action Machine Inc.
    1847 Prairie Avenue
    South Bend, IN 46613


    Why do we need your transmission yoke?

    We highly recommend that every driveshaft is balanced with the required slip yoke to ensure a smooth running driveshaft. Adding the slip yoke later could result in annoying and harmful vibrations.


    4S1350-P(short)

    Ship Time:

    All driveshafts are custom built to your specification. Current lead time is 1 week from time of order.

    $605.52 $655.52
    Maximum quantity available reached.
    Add on Option

    Rear Flange Yoke:

    Does your Driveshaft need a flange yoke on the rear end? Add both your driveshaft and flange yoke to the cart and we will build you a complete driveshaft balanced and ready for intstall.
