Yoke
AMI 6.3-3-21KX Slip Yoke
Mid Shaft Slip Yoke | AMI_6.3-3-21KX
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- Grease: Greasable
- U-joint: 1.938" X 7.000"
- Length: 11.156"
- Bearing Plate
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- U-joint: 1.938" X 7.000"
- Length: 11.156"
- Bearing Plate
AMI 6.3-3-41KX Slip Yoke
Mid Shaft Slip Yoke | AMI 6.3-3-41KX
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- Grease: Greasable
- U-joint: 1.938" X 7.000"
- Length: 9.250"
- Bearing Plate
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- U-joint: 1.938" X 7.000"
- Length: 9.250"
- Bearing Plate

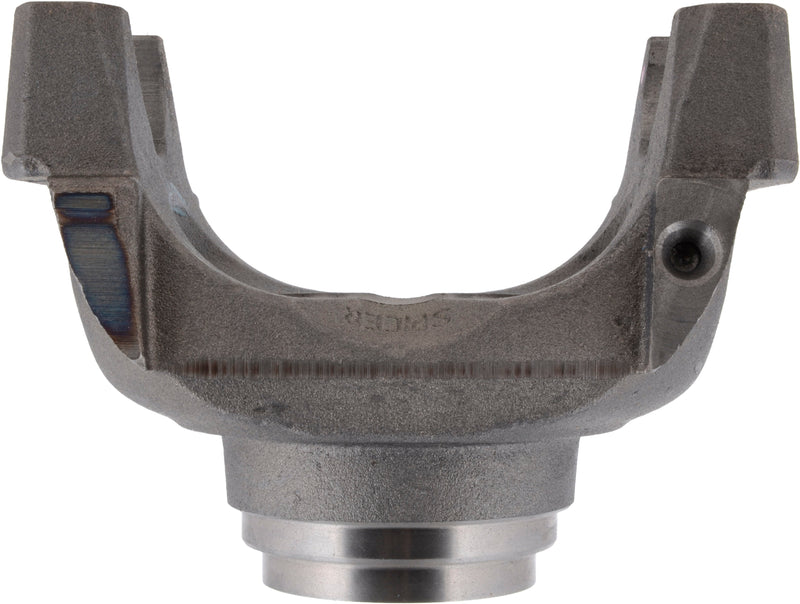

Spicer 6.3-4-821-1 End Yoke
End Yoke | 6.3-4-821-1
- Series: ∙ 1760
- Spline Count: 46
- Spline OD: 2.390”
- Bore Length: 2.750”
- Cap OD: 1.938"
- Yoke Span: 7.000”
- Hub Dia.: 2.875”
- Style: Half Round
Rear Axle Type:
- U-Joint Series: , 1760
- Spline Count: 46
- Spline OD: 2.390”
- Bore Length: 2.750”
- Cap OD: 1.938"
- Yoke Span: 7.000”
- Hub Dia.: 2.875”
- Style: Half Round
- Rear Axle Type:
Spicer 6.3-3-21KX Slip Yoke
Mid Shaft Slip Yoke | 6.3-3-21KX
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- Grease: Greasable
- U-joint: 1.938" X 7.000"
- Length: 11.156"
- Bearing Plate
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- U-joint: 1.938" X 7.000"
- Length: 11.156"
- Bearing Plate
Spicer 6.3-28-17 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | 6.3-28-17
- Series: 1760
- Type: Plate
- Tube OD: 4.095"
- Material: Steel
- Series: 1760
- Type: Plate
- Tube OD: 4.095"
- Material: Steel

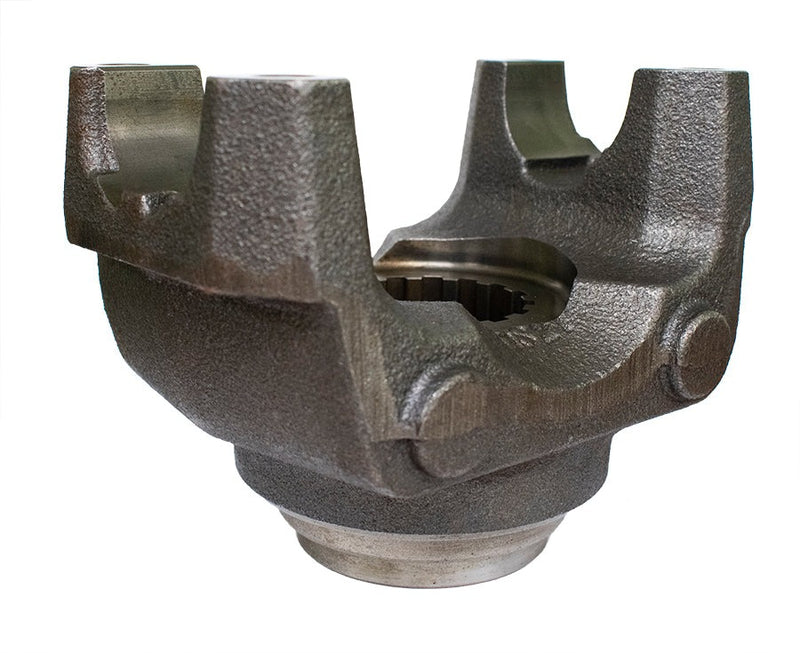

AMI 6.3-4-161-1 End Yoke
End Yoke | AMI_6.3-4-161-1
- Series: ∙ 1760
- Spline Count: 16
- Spline OD: 2.350”
- Bore Length: 2.750”
- Cap OD: 1.938"
- Hub Dia.: 2.875”
- Style: Bearing Plate
Rear Axle Type:
- U-Joint Series: , 1760
- Spline Count: 16
- Spline OD: 2.350”
- Bore Length: 2.750”
- Cap OD: 1.938"
- Hub Dia.: 2.875”
- Style: Bearing Plate
- Rear Axle Type:
AMI 6.3-28-17 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_6.3-28-17
- Series: 1760
- Type: Plate
- Tube OD: 4.095"
- Material: Steel
- Series: 1760
- Type: Plate
- Tube OD: 4.095"
- Material: Steel
Neapco N6.3-3-41KX Slip Yoke
Mid Shaft Slip Yoke | N6.3-3-41KX
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- Grease: Greasable
- X 7.000"
- Length: 9.25"
- Bearing Plate
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- X 7.000"
- Length: 9.25"
- Bearing Plate
Neapco N6.3-3-21KX Slip Yoke
Mid Shaft Slip Yoke | N6.3-3-21KX
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- Grease: Greasable
- X 7.000"
- Length: 11.16"
- Bearing Plate
- Series: 1760
- Spline Count: 16
- Spline Dia.: 2.500”
- X 7.000"
- Length: 11.16"
- Bearing Plate
Neapco N6.3-2-19 Flange Yoke
Flange Yoke | N6.3-2-19
- Series: 1760
- Pilot Dia.: 7.750" M
- Bearing Plate
- X 7.000"
- Bolt Circle: 7.250"
- Manufacturer: Neapco
- Series: 1760
- Pilot Dia.: 7.750" M
- Bearing Plate
- Width: 7.000"
- Bolt Circle: 7.250"
- Manufacturer: Neapco
Neapco N6.3-4-821-1 End Yoke
End Yoke | N6.3-4-821-1
- Series: ∙ 1760
- Spline Count: 46
- Spline OD: 2.380”
- Bore Length: 2.750”
- Cap OD: 1.938"
- Yoke Span: 7.000”
- Hub Dia.: 3.310”
Rear Axle Type:
- U-Joint Series: , 1760
- Spline Count: 46
- Spline OD: 2.380”
- Bore Length: 2.750”
- Cap OD: 1.938"
- Yoke Span: 7.000”
- Hub Dia.: 3.310”
- Rear Axle Type:
Neapco N6.3-4-791X End Yoke
End Yoke | N6.3-4-791X
- Series: ∙ 1760
- Spline Count: 10
- Spline OD: 2.750”
- Bore Length: 3.000”
- Cap OD: 1.938"
- Yoke Span: 7.000”
- Hub Dia.: 3.750”
- Style: Full Round
Rear Axle Type:
- U-Joint Series: , 1760
- Spline Count: 10
- Spline OD: 2.750”
- Bore Length: 3.000”
- Cap OD: 1.938"
- Yoke Span: 7.000”
- Hub Dia.: 3.750”
- Style: Full Round
- Rear Axle Type:
