Yoke

Spicer 6-4-5131X End Yoke

End Yoke | 6-4-5131X

Series: ∙ 1710
Spline Count: 34
Spline OD: 1.774”
Bore Length: 2.250”

Cap OD: 1.938"
Hub Dia.: 2.500”
Style: Full Round

Rear Axle Type:

U-Joint Series: , 1710
Spline Count: 34
Spline OD: 1.774”
Bore Length: 2.250”
Cap OD: 1.938"
Hub Dia.: 2.500”
Style: Full Round
Rear Axle Type:

$332.84

Spicer 6-4-5151X End Yoke

End Yoke | 6-4-5151X

Series: ∙ 1710
Spline Count: 10
Spline OD: 1.962”
Bore Length: 2.250”

Cap OD: 1.938"
Hub Dia.: 2.625”
Style: Full Round

Rear Axle Type:

U-Joint Series: , 1710
Spline Count: 10
Spline OD: 1.962”
Bore Length: 2.250”
Cap OD: 1.938"
Hub Dia.: 2.625”
Style: Full Round
Rear Axle Type:

$373.67

Spicer 6-4-6841X End Yoke

End Yoke | 6-4-6841X

Series: ∙ 1710
Spline Count: 10
Spline OD: 2.750”
Bore Length: 3.000”

Cap OD: 1.938"
Hub Dia.: 3.750”
Style: Full Round

Rear Axle Type:

U-Joint Series: , 1710
Spline Count: 10
Spline OD: 2.750”
Bore Length: 3.000”
Cap OD: 1.938"
Hub Dia.: 3.750”
Style: Full Round
Rear Axle Type:

$253.83

Spicer 6-3-2671KX Slip Yoke

Mid Shaft Slip Yoke | 6-3-2671KX

Series: 1710
Spline Count: 16
Spline Dia.: 2.500”
Grease: Greasable

U-joint: 1.938" X 6.094"
Length: 9.594"
Bearing Plate

Series: 1710
Spline Count: 16
Spline Dia.: 2.500”
U-joint: 1.938" X 6.094"
Length: 9.594"
Bearing Plate

$192.62

Driveshaft Yoke Shaft Specifications Series: 1710 U-Joint Cap Diameter (D): 1.938 Inch U-Joint Width (E): 6.094 Inch Major Spline Diameter: 2.500 Inch Centerline To End Of Spline (K): 14.000 Inch Spline Length...

$669.31

Spicer 6-82-1171-1 Yoke Shaft

Yoke Shaft | 6-82-1171-1

Driveshaft Yoke Shaft Specifications Series: 1710 U-Joint Cap Diameter: 1.938 Inch U-Joint Width: 6.094 Inch Major Spline Diameter: 2.500 Inch Centerline To End Of Spline: 10.031 Inch Spline Length: 3.500 Inch Angle...

$556.26

Spicer 6-82-1341-2 Yoke Shaft

Yoke Shaft | 6-82-1341-2

Driveshaft Yoke Shaft Specifications Series: 1710 U-Joint Cap Diameter: 1.938 Inch U-Joint Width: 6.094 Inch Major Spline Diameter: 2.500 Inch Centerline To End Of Spline: 13.375 Inch Spline Length: 4.000 Inch Angle #1...

$630.26

Spicer 6-82-341 Yoke Shaft

Yoke Shaft | 6-82-341

Driveshaft Yoke Shaft Specifications Series: 1710 U-Joint Cap Diameter: 1.938 Inch U-Joint Width: 6.094 Inch Major Spline Diameter: 3.248 Inch Centerline To End Of Spline: 5.250 Inch Spline Length: 2.000 Inch Angle #1...

$662.66

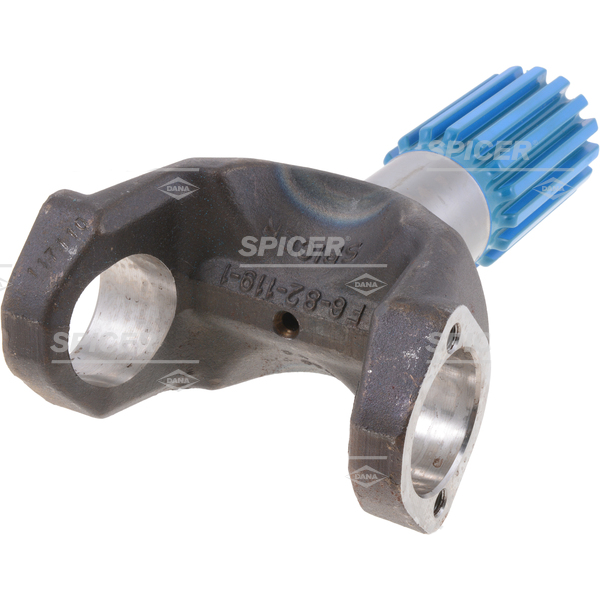

Spicer 6-82-1171-10 Yoke Shaft

Yoke Shaft | 6-82-1171-10

Driveshaft Yoke Shaft Specifications Series: 1710 U-Joint Cap Diameter: 1.938 Inch U-Joint Width: 6.094 Inch Major Spline Diameter: 2.500 Inch Centerline To End Of Spline: 9.656 Inch Spline Length: 3.500 Inch...

$606.74

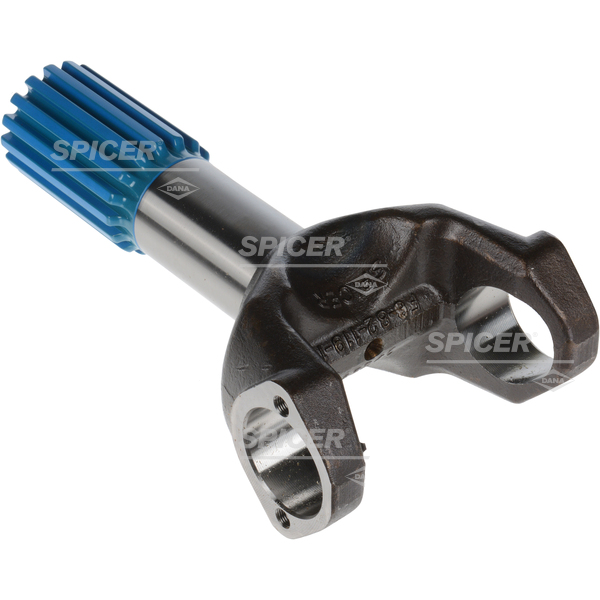

Spicer 6-82-1171-12 Yoke Shaft

Yoke Shaft | 6-82-1171-12

Driveshaft Yoke Shaft Specifications Series: 1710 U-Joint Cap Diameter: 1.938 Inch U-Joint Width: 6.094 Inch Major Spline Diameter: 2.500 Inch Centerline To End Of Spline: 10.656 Inch Spline Length: 3.500 Inch Angle...

$574.09

Spicer 6-82-1091-12 Yoke Shaft

Yoke Shaft | 6-82-1091-12

Driveshaft Yoke Shaft Specifications Series: 1710 U-Joint Cap Diameter: 1.938 Inch U-Joint Width: 6.094 Inch Major Spline Diameter: 2.500 Inch Centerline To End Of Spline: 11.780 Inch Spline Length: 4.000 Inch Angle...

$580.28

Spicer 6-82-1131-2 Yoke Shaft

Yoke Shaft | 6-82-1131-2

Driveshaft Yoke Shaft Specifications Series: 1710 U-Joint Cap Diameter: 1.938 Inch U-Joint Width: 6.094 Inch Major Spline Diameter: 2.500 Inch Centerline To End Of Spline: 8.531 Inch Spline Length: 3.500 Inch Angle #1...

$581.67
