Spicer 3-28-417 Weld Yoke / Tube Yoke

Vendor: Spicer/Dana, Sku: 3-28-417

Product Description

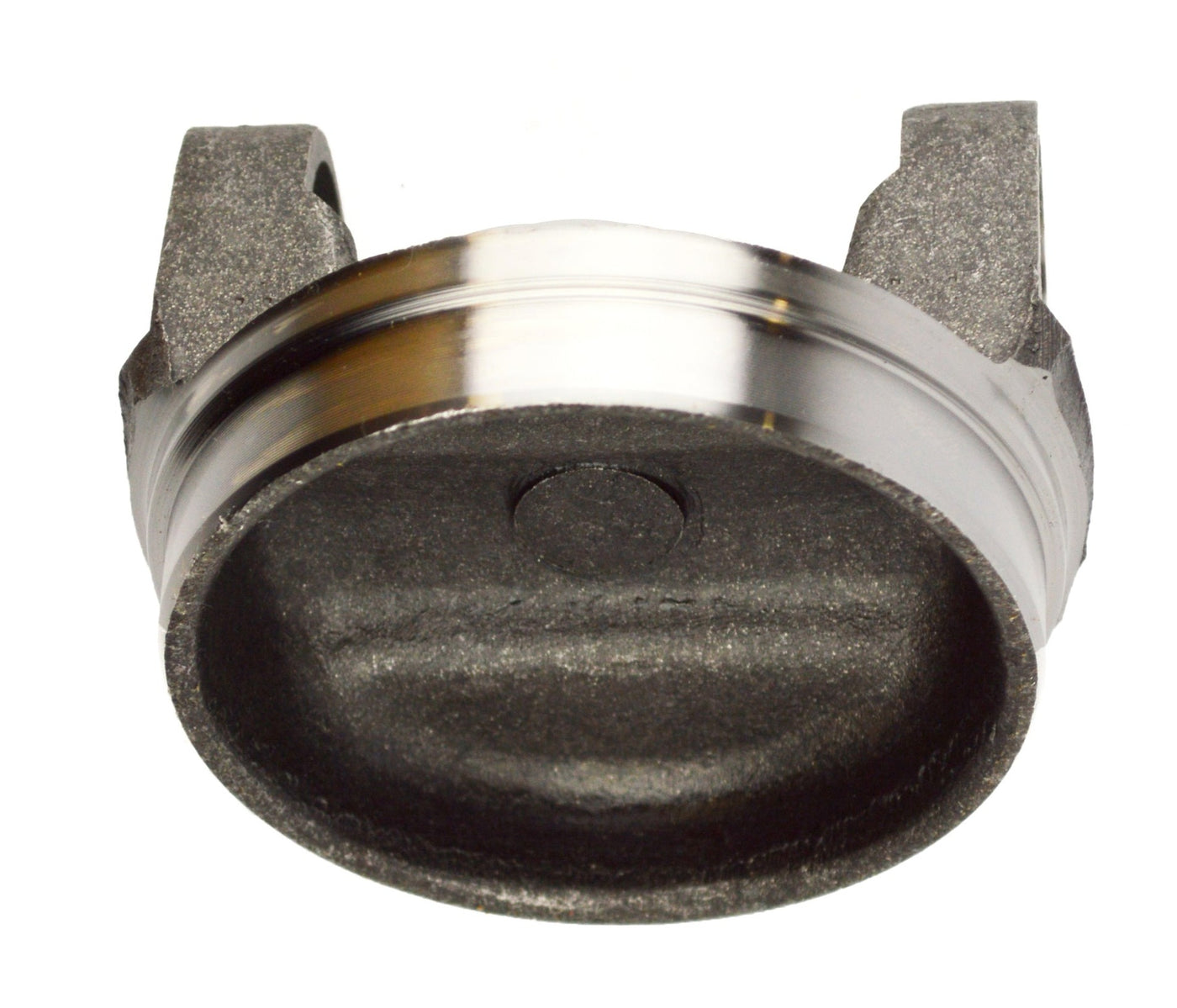

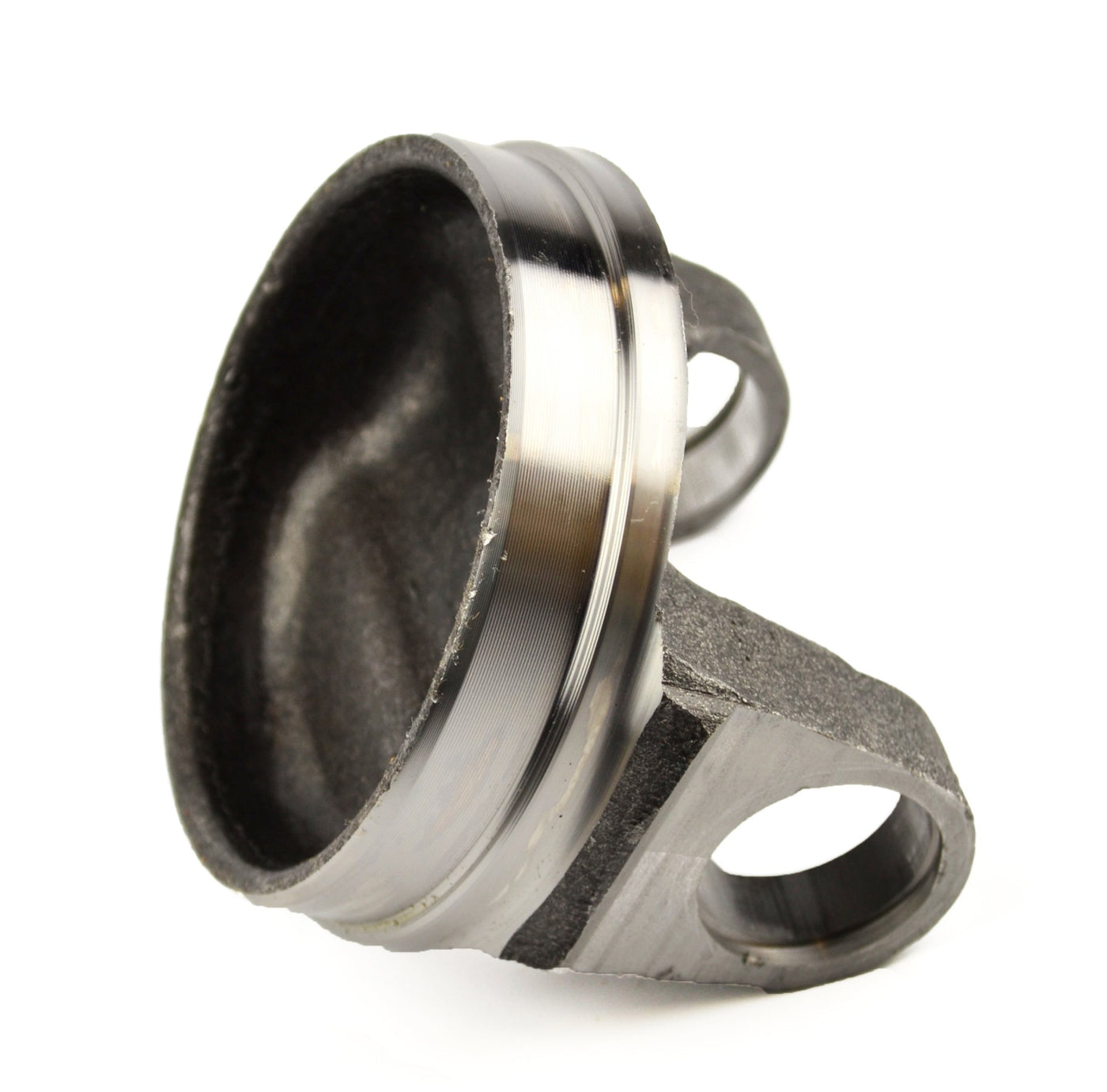

Driveshaft Tube Yoke

Series: 1350
U-Joint Width: 3.625 Inch
Bearing Cap Diameter: 1.188 Inch
Fits Tube Diameter: 4.000 Inch
Fits Tube Wall: 0.083 Inch - WELDED
Butt Diameter: 3.844 Inch
Center Line to Weld: 1.688 Inch
Design: Outside Snap Ring
Material: Steel
Joint Angle:
21.0 Degrees
VMRS:024002057

Compatible Parts:
Spicer 5-1350X U-Joint

Sku: 3-28-417
Vendor: Spicer/Dana
$72.66
