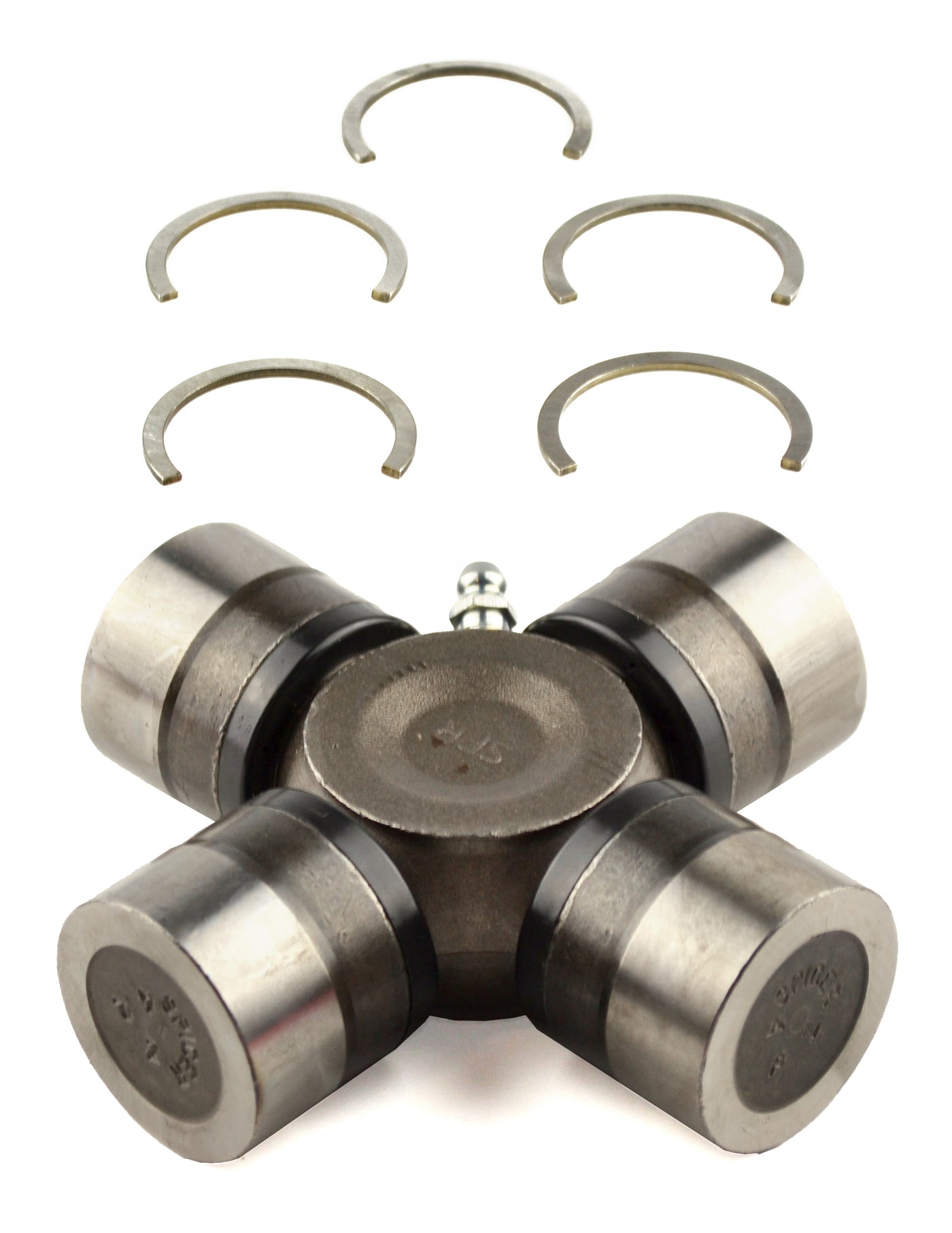

Spicer SPL55-4X U-Joint

Vendor: Spicer/Dana, Sku: SPL55-4X

Previous Product | Next Product
Product Description

Spicer Drive Shaft U-Joint SPL55-4X

Cold-forged from high-quality steel, Spicer Life Series® (SPL®) universal joints deliver the strength and durability that today’s performance vehicles demand.

Non-greaseable u-joint (pre-lubricated for the life of the part)
 • For optimal friction reduction and higher temperature resistance
Synthetic thrust washer
 • Eliminates friction and end galling
 • Prevents the heat that breaks down grease
Multi-lip seal
 • Keeps grease in—and contaminants out
 • Offers maximum retention in a wider range of environments

Type: Inside Snap Ring Style (ISR)
OEM Series: SPL55/1480WJ
Bearing Cap Diameter: 1.375 Inch (34.925 mm) (D1)
1.375 Inch (34.925 mm) (D2)
Lock Up / Length:
*Snap Ring to Snap Ring 		3.00 Inch (76.2 mm) (G1)
3.00 Inch (76.2 mm) (G2)
Grease Type: Greasable
Snap Rings Included: Yes
Material: Steel & Rubber
Package: Each / Qty 1

VMRS: 024002046

U-joint Diagram


inside snap ring
Part Number Interchange
Spicer Part # SPL55-3X
Series
 Spicer 1480 WJ (SPL55)
Moog/Precision 374
Neapco 3-0332
Duralast 3-0332DL
SKF UJ374


More Product Information:

Sku: SPL55-4X
Vendor: Spicer/Dana
$57.88
Maximum quantity available reached.

DETAILS

OEM Series:		 1480WJ / SPL 55
Manufacturer: Spicer/Dana
Greasable: Greasable
Snap Ring Type: Inside Snap Ring
Manufacturer Part Number: SPL55-4X
Bearing Cap Diameter: 1.375"
Lock Up: 3.000"
OEM/Alternate Part Number:
023913126216
.
