AMI 5-8105XMS U-Joint

Vendor: Action Machine Inc., Sku: AMI_5-8105XMS

Previous Product | Next Product
Product Description

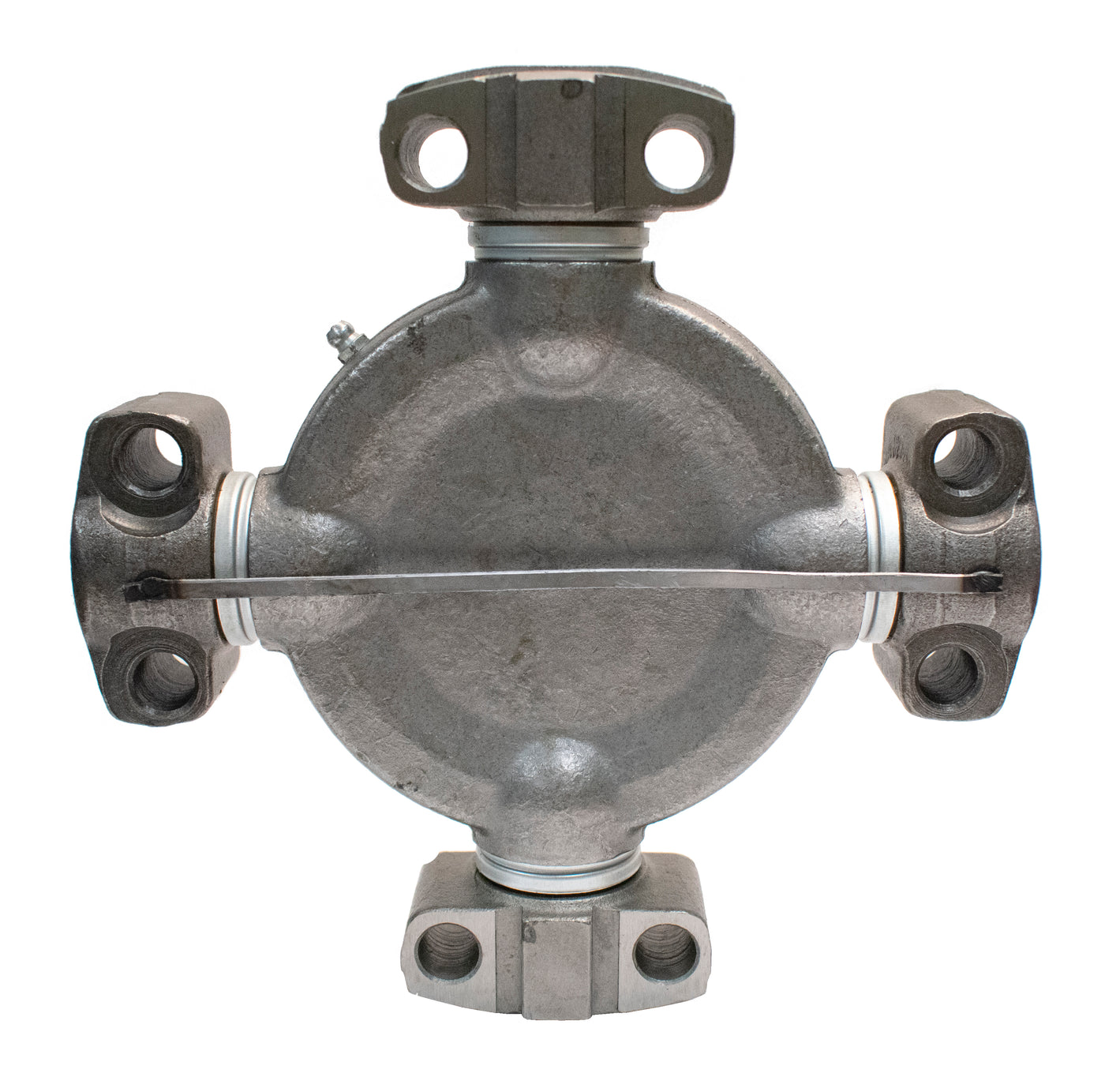

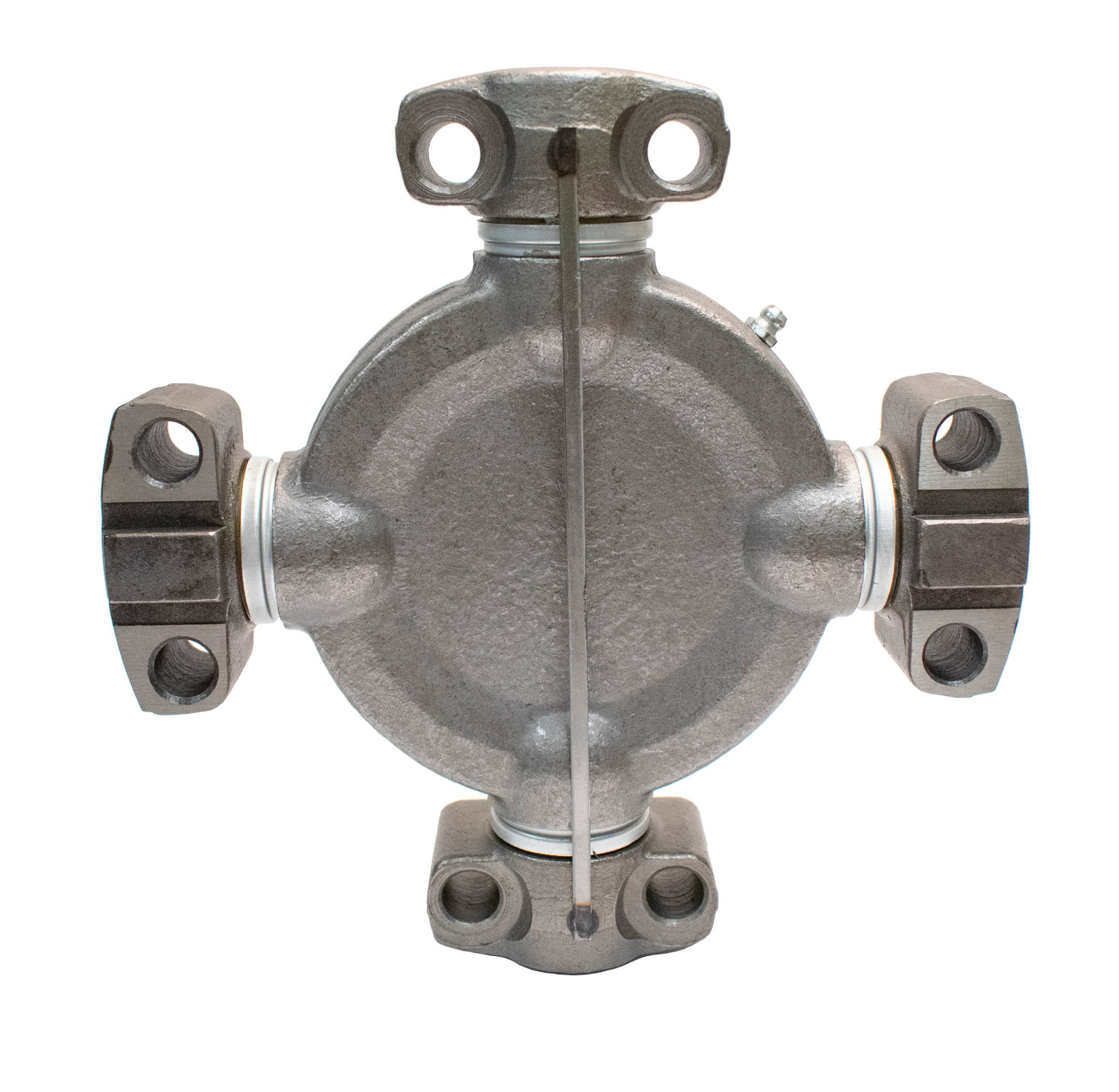

Action Machine Inc. Wing Bearing Style Universal Joint

This wing U-Joint is equivalent to:
 Brand Part Number
Neapco 6-8113 / UPC 00083869681139
Spicer 5-8105X

*



Brand: Action Machine Inc.
Greaseable: Yes, Greaseable
Lube Fitting In Cross
Type: Wing Bearing Style
Wing Bearing Type:
WING-HWD
OEM Series:
MECHANICS 8C
Distance Between Bolts (S): 1.938 Inch
Pilot Diameter (C):
8.122 Inch

VMRS: 024-001-004

How to Measure a Yoke

Measure across the inside of the pilot diameter
CAUTION: Make sure your spicer ruler or caliper is directly over the center of the bolt holes and pilot hole on the yoke.
Wing Yoke Diagram

How to Measure a Wing U-Joint

  We recommend using a caliper or micrometer to most accurately measure u-joints. U-joint caps must be compressed when measuring dimension over the caps / Pilot Diameter.

 (C)
Pilot Diameter / Distance over Caps
 (S)
Distance Between Bolts

****

Alternate Part Number:
Spicer 5-8105X U-Joint
Spicer 5-8111X U-Joint
Meritor CP82N HWD U-Joint
Neapco 6-8113 U-Joint

Sku: AMI_5-8105XMS
Vendor: Action Machine Inc.
$155.56
Maximum quantity available reached.

DETAILS

OEM Series:		 8C
Manufacturer: Action Machine Inc.
Greasable: Greasable
Bearing Type: Wing HWD
Manufacturer Part Number: AMI_5-8105XMS
Distance Between Bolts: 1.938"
Pilot Diameter (1): 8.122"
OEM/Alternate Part Number:
.
