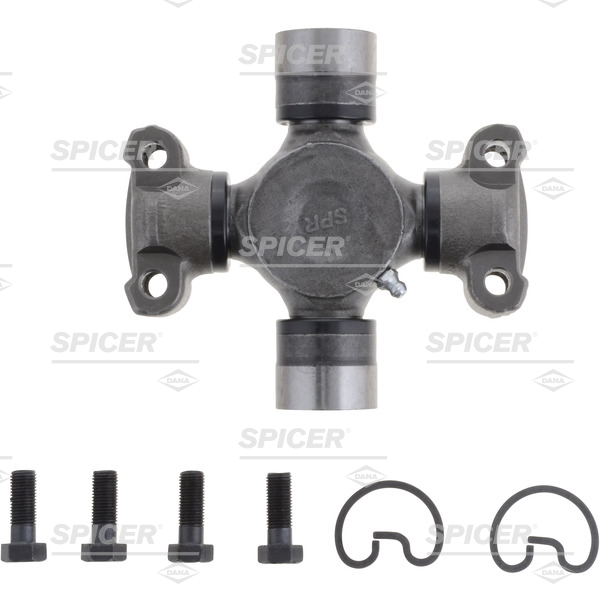

Spicer 6C-5X U-Joint

Vendor: Spicer/Dana, Sku: 6C-5X

Previous Product | Next Product
Product Description

Universal Joint

Conversion U-joint Spicer 1550 Series to Mechanics 6C LWT



Spicer® Wing™Series:

For Performance that begins where the pavement ends. Spicer wing bearing style driveshafts are designed for longer life, minimal maintenance, and lower operating costs.

Series Innovations Include:

• Forged cross
• Case hardening process for strength
• Sealed slip spline system
• Triple lip seal, thrust washer, and seal guard package
• Reduced maintenance
• Increased torque capacity

*



Brand Spicer
Greaseable Yes
Type Inside Snap Ring / Wing Bearing Style
OEM Mfg Mechancis
OEM Series 2C

Converts This Series
To This Series 2R
Distance Between Bolts (S1) 3.926"
Distance Between Bolts (S2) 3.926"
Wb Type (1) HWD
Wb Type (2) HWD
Pilot Diameter (C) 10.235"
Country of Origin Italy

Cross 1 Cross 2
Series Conversion: 1550 6C / 62N
Type: Outside Snap Ring (OSR) Wing Bearing Style
(HWT)
Cap Measurement: Bearing Cap Diameter:
1.375 Inch
 Distance Between Bolts:
1.688 Inch
Lock Up / Length:

 Snap Ring to Snap Ring:
4.969  Inch
 Pilot Diameter:
5.531 Inch
Grease Type: Greaseable
Hardware Included: Yes (Snap Ring & Bolts)
Material: Steel
Package: Each / Qty 1

 VMRS: 024002046

Outside Snap Ring, Wing U-joint

How to Measure a Yoke

Measure across the inside of the pilot diameter
CAUTION: Make sure your spicer ruler or caliper is directly over the center of the bolt holes and pilot hole on the yoke.
Wing Yoke DiagramMeasuring a yoke

How to Measure a Wing U-Joint

  We recommend using a caliper or micrometer to most accurately measure u-joints. U-joint caps must be compressed when measuring dimension over the caps.

Wing U-joint / Outside snap ring

 (C)

Pilot Diameter
 (G)

Distance over Caps
 (S)

Distance Between Bolts
 (D) Cap Diameter

****

Compatible Parts:
Spicer 3-70-38X Strap Kit
Neapco 1-0030 Strap Kit
Spicer 3-94-28X U-Bolt Kit

Alternate Part Number:
AMI 5-220X Universal Joint (Obsolete)

Sku: 6C-5X
Vendor: Spicer/Dana
$170.33
Maximum quantity available reached.

DETAILS

OEM Series:		 1550 X 6C/62N
Manufacturer: Spicer/Dana
Greasable: Greasable
Bearing Type: HWT / OSR
Manufacturer Part Number: 6C-5X
Distance Between Bolts: 1.375" X 1.689"
Pilot Diameter (1): 4.969" X 5.531"
OEM/Alternate Part Number:
023913248291
.
