Spicer 5-4111X U-Joint

Vendor: Spicer/Dana, Sku: 5-4111X

Previous Product | Next Product
Product Description

Driveshaft 4C Universal Joint

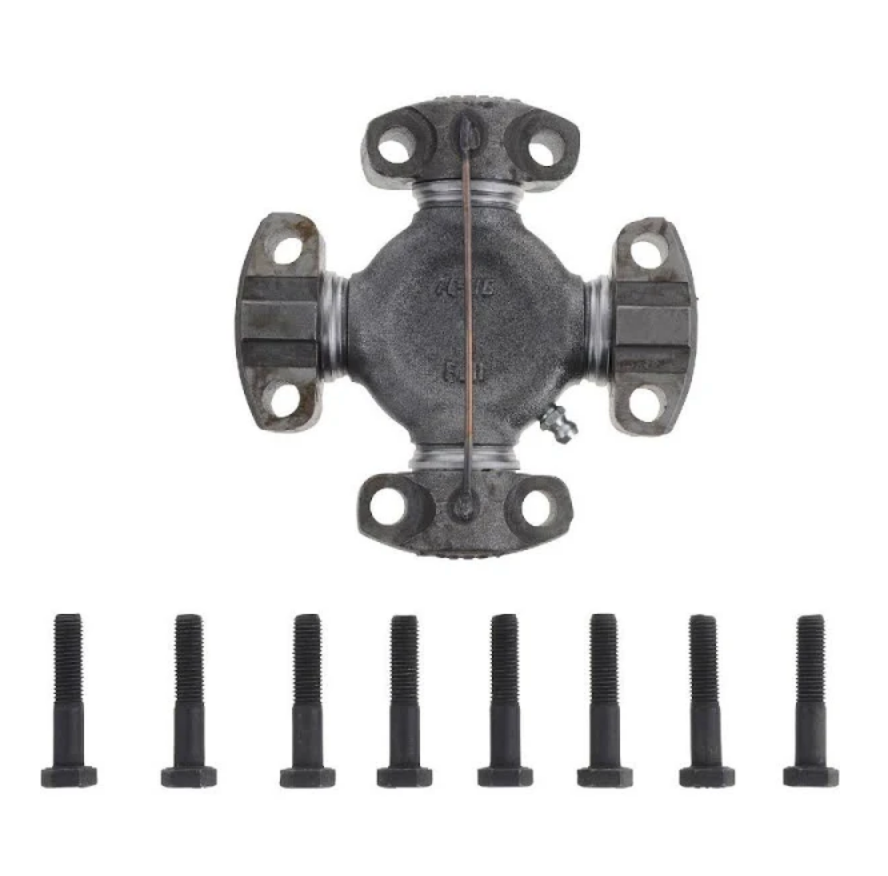

Spicer 4C Series Greasable Wing Type U-joint often used in forklifts and similar applications. All 4 caps are drilled (HWD High Wing Drilled). Includes 8 bolts and washers.

Series Innovations Include:

• Forged cross
• Case hardening process for strength
• Sealed slip spline system
• Triple lip seal, thrust washer, and seal guard package
• Reduced maintenance
• Increased torque capacity

*



Brand Spicer
Greaseable Yes
Type Inside Snap Ring / Wing Bearing Style
OEM Mfg Mechancis
OEM Series 2C

Converts This Series
To This Series 2R
Distance Between Bolts (S1) 3.926"
Distance Between Bolts (S2) 3.926"
Wb Type (1) HWD
Wb Type (2) HWD
Pilot Diameter (C) 10.235"
Country of Origin Italy

VMRS: 024002046



Brand: Spicer
Greaseable: Yes
Type: Wing Bearing Style
OEM Mfg: Italcardano
OEM Series: 4C
Distance Between Bolts: 1.438 Inch
Wb Type: HWD (High Wing Drilled)
Pilot Diameter: 4.25 Inch
Country of Origin: Italy

VMRS: 024002046

Wing Bearing Style

How to Measure a Yoke

Measure across the inside of the pilot diameter
CAUTION: Make sure your spicer ruler or caliper is directly over the center of the bolt holes and pilot hole on the yoke.
Wing Yoke DiagramMeasuring a yoke

How to Measure a Wing U-Joint

  We recommend using a caliper or micrometer to most accurately measure u-joints. U-joint caps must be compressed when measuring dimension over the caps.

wing bearing u-joint

 (C)

Pilot Diameter / Distance over Caps
 (S)

Distance Between Bolts

****

Alternate Part Number:
Spicer 5-4211X U-Joint (HWD/HWD)
Spicer 15-4111X U-Joint (HWD/HWD)
Neapco 3-4143 U-Joint
Meritor CP4143X U-Joint (HWD/HWD)
Spicer 050742000 U-Joint (Obsolete)
Spicer 050742010 U-Joint (Obsolete)
Spicer 050742020 U-Joint (Obsolete)
Spicer 5-4143X U-Joint (Obsolete)
AMP4372708, 4C-HWD_GEN, 2D1844, 5K5012, 6K0316, 887737, 944866, D75441, 135764H1, 113-12-00010, R887737, 2040231

Sku: 5-4111X
Vendor: Spicer/Dana
$160.59
Maximum quantity available reached.

DETAILS

OEM Series:		 4C
Manufacturer: Spicer/Dana
Greasable: Greasable
Bearing Type: Wing HWD
Manufacturer Part Number: 5-4111X
Distance Between Bolts: 1.438"
Pilot Diameter (1): 4.250"
OEM/Alternate Part Number:
023913247522
.
