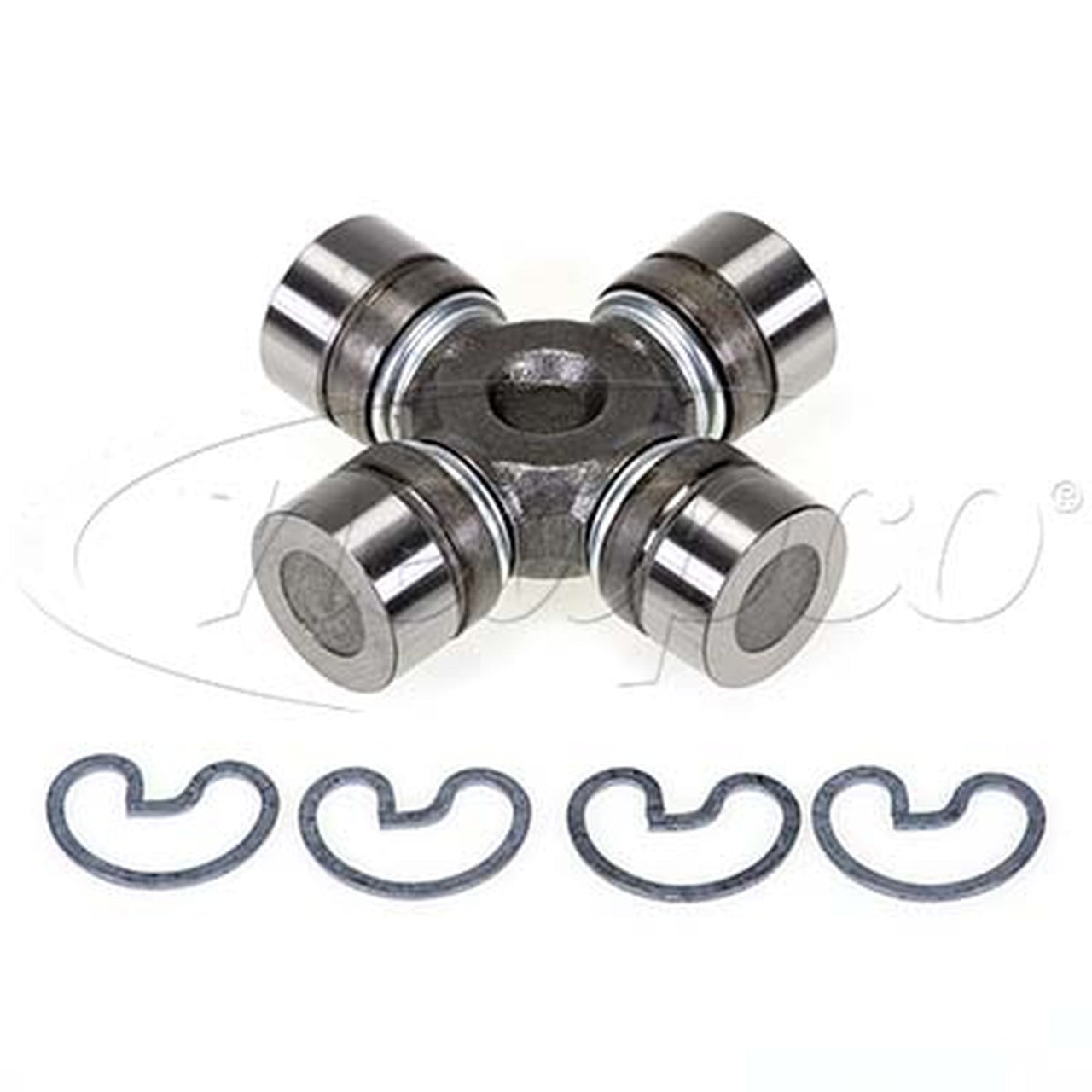

Neapco 3-0486 U-Joint

Vendor: Neapco, Sku: 3-0486

Previous Product | Next Product
Product Description

Driveshaft Universal Joint

Neapco Universal Joint


Type: Outside Snap Ring Style (OSR)
OEM Series: 1485
Bearing Cap Diameter: 1.375 Inch / 34.925 mm (D1)
1.375 Inch / 34.925 mm (D2)
Lock Up / Length:
*Snap Ring to Snap Ring 		2.92 Inch / 74.2 mm (G1)
2.92 Inch / 74.2 mm (G2)
Grease Type: Non-Greasable
Snap Rings Included: Yes
Material: Steel & Rubber
Package: Each / Qty 1

VMRS: 024002046

U-joint Diagram

Some Applications Include:

  • 2003-Up Dodge 9.25 inch front American Axle at the wheel joint
  • Chrysler Vehicles
  • GM


inside snap ring
Part Number Interchange: Contact AMI for more information




Compatible Parts:
Neapco 1-0030 Strap Kit

Sku: 3-0486
Vendor: Neapco
$83.67
Maximum quantity available reached.

DETAILS

OEM Series:		 1485
Manufacturer: Neapco
Greasable: Non-Greasable
Snap Ring Type: Outside Snap Ring
Manufacturer Part Number: 3-0486
Bearing Cap Diameter: 1.375"
Lock Up: 4.178"
OEM/Alternate Part Number:
00083869304861
.
