Weasler 200-7155 U-Joint

Vendor: Weasler, Sku: 200-7155

Previous Product | Next Product

Product Description

Series: AW10
Grease: Greasable
Outside Snap Ring

Cap Size: 0.86"
Lock Up: 2.12"
Brand: Weasler

Series: AW10
Grease: Greasable
Outside Snap Ring
Cap Size: 0.86"
Lock Up: 2.12"
Manufacturer: Weasler

Driveshaft Universal Joint

AW10 Series Cross And Bearing Kit

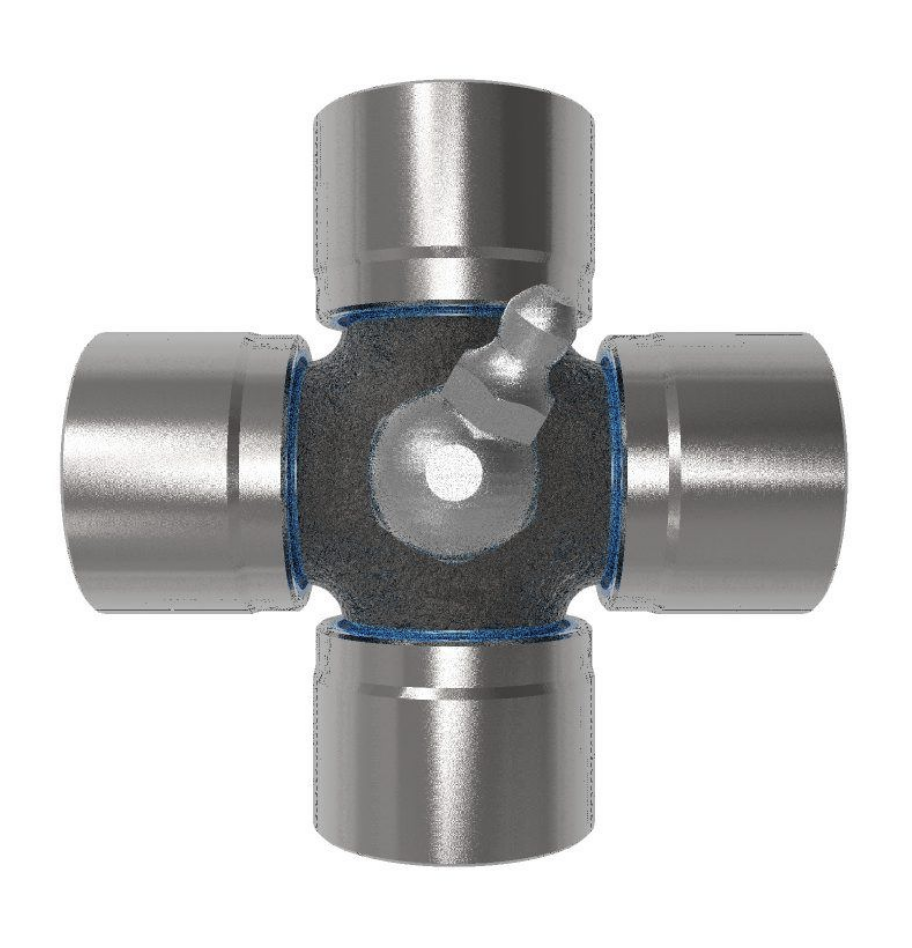

P Standard, Center Grease Fitting

P-Kits are the Weasler Profile metric version of the R-Kit. P-Kits are standard and offer a highquality lube cycle of 8 hours which is acceptable for many applications. P-kits and E-kits are interchangeable with other cross and bearing kits in Weasler series as well as with standard cross and bearing sets in the market. This means that a Weasler PTO drive shaft with P-kits can still be upgraded to E-kits or M-kits.

PERFORMANCE BENEFITS
Lubrication cycle of up to 8 hours.
Interchangeable with standard profile metric cross and bearing kits available in the market.

DESIGN FEATURES
A blue seal with grease fitting makes it fast and easy to find a P-Kit.

Series:	AW10
Manufacturer:	Weasler
Greasable:	Greasable
Snap Ring Type:	Outside Snap Ring
Manufacturer Part Number:	200-7155

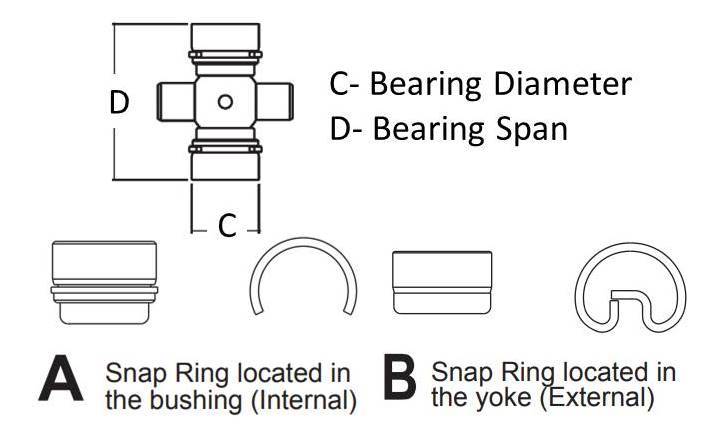

Bearing Cap Diameter:	0.86 Inch (22 mm)
Snap Ring Lock Up:	2.12 Inch (54 mm)
Bearing Span:	2.12 Inch (54 mm)
HP @ 1000 RPM	23 HP (17 Kilowatts)
HP @ 540 RPM	15 HP (11 Kilowatts)
Greasable	Yes
Lubrication Intervals:	8 Hours

VMRS: 024002046

Alternate/Interchange Part:
Neapco 1-1001 U-Joint

Sku: 200-7155

Vendor: Weasler

$27.84

Maximum quantity available reached.

DETAILS

OEM Series:	AW10
Manufacturer:	Weasler
Greasable:	Greasable
Snap Ring Type:	Outside Snap Ring
Manufacturer Part Number:	200-7155
Bearing Cap Diameter:	0.86"
Lock Up:	2.12"
OEM/Alternate Part Number:
