Sonnax T3-3-5571HP Trans Slip Yoke

Vendor: Sonnax, Sku: T3-3-5571HP

Previous Product | Next Product

Product Description

Transmission/Transfer Case Applications:

Transmission Applications: Fits various 32 spline transmissions with long tail-shaft housing. Fits Transmission Applications: , 4L80E Long Tail , 6L50 , 6L80E , TH-400 Long Tail , 241C

Sonnax Drive Shaft Transmission Slip Yoke

Product Specs
Description
Diagrams

Transmission Applications:

Fits various 32 spline transmissions 6L50, 6L80E with long tail-shaft housing including Turbo 400 (TH400) and 4L80E and more. The shorter barrel length yoke 3-3-2431 will more universally fit all 1350 Series 32 spline transmissions -- double check your application to verify proper fit.

Series:	1350
Outside Yoke Dimension / U-Joint Lock Up (B):	3.875 Inch / 3.625 inch
Bearing Cap Diameter (A):	1.188 Inch
Vehicle Make:	GM
Center Line to End of Spline (C):	6.940 Inch
Spline Outside Diameter (E):	1.378 Inch
Hub Diameter (D):	1.886 Inch
*Number of Spline (F):**	32 (31 with blind spot - see note below*)
Spline Type:	Full Spline
Style:	Outside Snap Ring
Material:	Steel

VMRS: 024002038

* The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Sonnax T3-3-5571HP forged chromoly performance slip yoke is an excellent upgrade over factory style transmission yokes, adding strength and durability at an affordable price. The T3-3-5571HP uses 1350 series u-joints and fits a variety of applications, including those listed here. These high performance slip yokes deliver superior strength and durability for high horsepower and torque capacity applications, from street car, to street rod, drag strip, to dirt oval track.

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yoke Driveshaft Slip Yoke Diagram Spline Count

Alternate Part Option:
Spicer 3-3-5571X Trans Slip Yoke

Sku: T3-3-5571HP

Vendor: Sonnax

$195.00

Maximum quantity available reached.

Product Reviews

Related Products

Sold Out

Spicer 3-3-7041x Trans Slip Yoke

$3,117.90

{"id":1224764784692,"title":"Spicer 3-3-7041x Trans Slip Yoke","handle":"3-3-7041x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eAlternate Part Number:\u003cbr\u003e\u003c\/b\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/4103-342?variant=33338170474631\" title=\"PTI 4103-342 Trans Slip Yoke\"\u003e4103-342\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 34 spline Ford, Lincoln, Mercury transmission cases including 5R110W and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1410\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e4.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e\u003cem\u003e(Center Line to End of Spline)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003ctd\u003e8.110 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e2.086 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.551 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e34 \u003cem\u003e(33 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number: \u003cbr\u003e\u003c\/strong\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/4103-342?variant=33338170474631\" title=\"PTI 4103-342 Trans Slip Yoke\"\u003e4103-342 \u003c\/a\u003eTrans Slip Yoke\u003c\/p\u003e","published_at":"2017-08-02T14:34:11-04:00","created_at":"2018-08-27T11:22:01-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["337041x","3C3Z-4841-AA","5R110W","Application_Transmission:","Barrel OD_2.09\"","Bearing Cap Diameter_1.188\"","Brand_Spicer","Length_8.11\"","Lock Up_4.188\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1410","Spline Diameter_1.55\"","Spline_34","Transmission Make_Ford","Transmission Model_5R110W","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":311790,"price_min":311790,"price_max":311790,"available":false,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":9444828315700,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"3-3-7041x","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Spicer 3-3-7041x Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":311790,"weight":2177,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913238087","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Back_11860.png?v=1535383604","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Front_11861.png?v=1605029897","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Bottom_11862.png?v=1605029897","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Top_11859.png?v=1605029897","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Drawing_9951.jpg?v=1535390204"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Back_11860.png?v=1535383604","options":["Title"],"media":[{"alt":null,"id":2611693584519,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Back_11860.png?v=1535383604"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Back_11860.png?v=1535383604","width":600},{"alt":null,"id":2611693682823,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Front_11861.png?v=1605029897"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Front_11861.png?v=1605029897","width":600},{"alt":null,"id":2611693617287,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Bottom_11862.png?v=1605029897"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Bottom_11862.png?v=1605029897","width":600},{"alt":null,"id":2611693650055,"position":4,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Top_11859.png?v=1605029897"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Top_11859.png?v=1605029897","width":600},{"alt":null,"id":2611694141575,"position":5,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Drawing_9951.jpg?v=1535390204"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-7041X_Drawing_9951.jpg?v=1535390204","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eAlternate Part Number:\u003cbr\u003e\u003c\/b\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/4103-342?variant=33338170474631\" title=\"PTI 4103-342 Trans Slip Yoke\"\u003e4103-342\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 34 spline Ford, Lincoln, Mercury transmission cases including 5R110W and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1410\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e4.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e\u003cem\u003e(Center Line to End of Spline)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003ctd\u003e8.110 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e2.086 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.551 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e34 \u003cem\u003e(33 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number: \u003cbr\u003e\u003c\/strong\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/4103-342?variant=33338170474631\" title=\"PTI 4103-342 Trans Slip Yoke\"\u003e4103-342 \u003c\/a\u003eTrans Slip Yoke\u003c\/p\u003e"}

Spicer 3-3-7041x Trans Slip Yoke

$3,117.90

Spicer/Dana Drive Shaft Transmission Slip Yoke This part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650 A...

Spicer 3-3-6661X Trans Slip Yoke

$860.50

{"id":8702424005,"title":"Spicer 3-3-6661X Trans Slip Yoke","handle":"3-3-6661x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eAlternate Part Number:\u003cbr\u003e\u003c\/b\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/4103-313?variant=42141391978723\" title=\"PTI 4103-313 Trans Slip Yoke\"\u003e4103-313\u003c\/a\u003e Slip Yoke\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 31 spline Ford, Lincoln and Mercury transmission output shafts including: A4LE, E4OS, 4R100W and transfer case applications: BW1359, BW1356 \u0026amp; BW1345R. \u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1410\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e4.188 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e\u003cem\u003e(Center Line to End of Spline)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003ctd\u003e8.110 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e1.885 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.390 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e31 (30 with blind spot - see note below*)\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cbr\u003e\n\u003cp\u003e\u003cstrong\u003e Alternate Part Option:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/4103-313?variant=42141391978723\" title=\"PTI 4103-313 Trans Slip Yoke\"\u003e4103-313\u003c\/a\u003e Slip Yoke\u003c\/p\u003e","published_at":"2017-08-02T14:34:11-04:00","created_at":"2017-08-02T14:34:11-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["336661X","4R100","4R100W","4R200W","A4LE","Application_Transmission Applications: Fits various 31 spline transmissions and transfer requiring 1.886 yoke barrel diameter. Fits Transmission Models","Barrel OD_1.89\"","Bearing Cap Diameter_1.188\"","Brand_Spicer","BW1345R","BW1356","E40S","E4OS","Length_8.11\"","Lock Up_4.188\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1410","Spline Diameter_1.39\"","Spline_31","Transfer Case Slip Assembly","Transfer Case_BW1345R","Transfer Case_BW1356","Transfer Case_BW1359","Transmission Make_Ford","Transmission Model_4R100","Transmission Model_A4LE","Transmission Model_E4OS","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transfer Case Slip Yoke","Yoke_Transmission Slip Yoke"],"price":86050,"price_min":86050,"price_max":86050,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":38130390853,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"3-3-6661X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 3-3-6661X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":86050,"weight":2064,"compare_at_price":null,"inventory_quantity":1,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913233501","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6661X.b.jpg?v=1502198758"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6661X.b.jpg?v=1502198758","options":["Title"],"media":[{"alt":null,"id":2392367005831,"position":1,"preview_image":{"aspect_ratio":1.574,"height":2751,"width":4331,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6661X.b.jpg?v=1502198758"},"aspect_ratio":1.574,"height":2751,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6661X.b.jpg?v=1502198758","width":4331}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eAlternate Part Number:\u003cbr\u003e\u003c\/b\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/4103-313?variant=42141391978723\" title=\"PTI 4103-313 Trans Slip Yoke\"\u003e4103-313\u003c\/a\u003e Slip Yoke\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 31 spline Ford, Lincoln and Mercury transmission output shafts including: A4LE, E4OS, 4R100W and transfer case applications: BW1359, BW1356 \u0026amp; BW1345R. \u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1410\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e4.188 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e\u003cem\u003e(Center Line to End of Spline)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003ctd\u003e8.110 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e1.885 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.390 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e31 (30 with blind spot - see note below*)\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cbr\u003e\n\u003cp\u003e\u003cstrong\u003e Alternate Part Option:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/4103-313?variant=42141391978723\" title=\"PTI 4103-313 Trans Slip Yoke\"\u003e4103-313\u003c\/a\u003e Slip Yoke\u003c\/p\u003e"}

Spicer 3-3-6661X Trans Slip Yoke

$860.50

Spicer 2-3-10391X Trans Slip Yoke

$718.67

{"id":4928514195591,"title":"Spicer 2-3-10391X Trans Slip Yoke","handle":"2-3-10391x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\" data-mce-href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\" data-mce-href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 27 spline, Jeep Cherokees\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e U-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch \u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e U-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003e Slip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n6.000 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Barrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.495 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.176 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Number of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 27 \u003cem\u003e(26 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Material:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eVehicle\u003c\/b\u003e\u003cstrong\u003e Make:\u003c\/strong\u003e\u003cbr\u003eJeep, Cherokee: 1997-2001 RWD; 4.0;L; 6; Automatic; with Dana 1310 Series \u003cbr\u003eJeep, Cherokee: 1995, RWD; 4.0;L ;6; with Dana 1310 Series\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n \u003cp\u003eThis is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eDana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n","published_at":"2020-04-24T13:44:01-04:00","created_at":"2020-04-24T13:44:01-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["2314311X","4L60E","700R4","Application_Transmission Applications: Fits various 27 spline transmissions including:","Barrel OD_1.50\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","Length_6.00\"","Lock Up_3.219\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1310","Spline Diameter_1.17\"","Spline_27","TH350","Transmission Model_200-R4","Transmission Model_4L60E","Transmission Model_700R4","Transmission Model_M21","Transmission Model_Powerglide","Transmission Model_T-5","Transmission Model_T-56","Transmission Model_TH-350","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Jeep","Yoke_Transmission Slip Yoke"],"price":71867,"price_min":71867,"price_max":71867,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":33922816245895,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-10391X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-10391X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":71867,"weight":907,"compare_at_price":null,"inventory_quantity":6,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913231514","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Front_2236.png?v=1642704731","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Top_2237.png?v=1587750303"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Front_2236.png?v=1642704731","options":["Title"],"media":[{"alt":null,"id":8497999741063,"position":1,"preview_image":{"aspect_ratio":0.678,"height":363,"width":246,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Front_2236.png?v=1642704731"},"aspect_ratio":0.678,"height":363,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Front_2236.png?v=1642704731","width":246},{"alt":null,"id":8497999773831,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Top_2237.png?v=1587750303"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Top_2237.png?v=1587750303","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\" data-mce-href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\" data-mce-href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 27 spline, Jeep Cherokees\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e U-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch \u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e U-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003e Slip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n6.000 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Barrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.495 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.176 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Number of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 27 \u003cem\u003e(26 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Material:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eVehicle\u003c\/b\u003e\u003cstrong\u003e Make:\u003c\/strong\u003e\u003cbr\u003eJeep, Cherokee: 1997-2001 RWD; 4.0;L; 6; Automatic; with Dana 1310 Series \u003cbr\u003eJeep, Cherokee: 1995, RWD; 4.0;L ;6; with Dana 1310 Series\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n \u003cp\u003eThis is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eDana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n"}

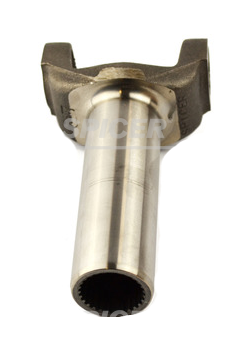

Spicer 2-3-10391X Trans Slip Yoke

$718.67

Spicer 2-3-5281X Trans Slip Yoke

$700.69

{"id":462808088613,"title":"Spicer 2-3-5281X Trans Slip Yoke","handle":"2-3-5281x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\" data-mce-href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\" data-mce-href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits the GM transmissions with 32 spline output shaft Turbo 400, TH-400 with smaller seal. Confirm dimensions for any transfer cases fitment. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter: (A)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width: (B)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.219 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length: (C)\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n5.188 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter: (D)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.688 Inch (Fits the TH400 with smaller seal)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter: (E)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.397 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline: (F)*\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 \u003cem\u003e(31 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCounter Bore Diameter:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.458 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCounter Bore Depth:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.880 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eIf you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\" alt=\"Transmission Slip yoke with and without counter bore\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e","published_at":"2017-05-30T08:16:00-04:00","created_at":"2018-01-16T09:04:56-05:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["Application_Transmission Applications: Fits 32 spline transmission with the smaller seal\/bushing:","Barrel OD_1.69\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","Length_5.19\"","Lock Up_3.219\"","N239161X","Part_Transmission Slip Yoke","Part_Yoke","Richmond","Series_1310","Spline Diameter_1.40\"","Spline_32","Transmission Model_TH-400","Transmission Model_Turbo 400","Transmission Slip Assembly","Transmission Slip Yoke","Turbo 400","U-Joint Type_Outside Snap Ring","Yoke_Transmission Slip Yoke"],"price":70069,"price_min":70069,"price_max":70069,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":5188692574245,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-5281X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-5281X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":70069,"weight":789,"compare_at_price":null,"inventory_quantity":3,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913232375","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-5281X_Top_2313.png?v=1643028184","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-5281X_Front_2312.png?v=1516112074"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-5281X_Top_2313.png?v=1643028184","options":["Title"],"media":[{"alt":null,"id":2496452493447,"position":1,"preview_image":{"aspect_ratio":0.689,"height":418,"width":288,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-5281X_Top_2313.png?v=1643028184"},"aspect_ratio":0.689,"height":418,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-5281X_Top_2313.png?v=1643028184","width":288},{"alt":null,"id":2496452526215,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-5281X_Front_2312.png?v=1516112074"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-5281X_Front_2312.png?v=1516112074","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\" data-mce-href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\" data-mce-href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits the GM transmissions with 32 spline output shaft Turbo 400, TH-400 with smaller seal. Confirm dimensions for any transfer cases fitment. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter: (A)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width: (B)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.219 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length: (C)\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n5.188 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter: (D)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.688 Inch (Fits the TH400 with smaller seal)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter: (E)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.397 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline: (F)*\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 \u003cem\u003e(31 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCounter Bore Diameter:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.458 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCounter Bore Depth:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.880 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eIf you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\" alt=\"Transmission Slip yoke with and without counter bore\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e"}

Spicer 2-3-5281X Trans Slip Yoke

$700.69

Spicer 2-3-8731X Trans Slip Yoke

$692.00

{"id":8305094981,"title":"Spicer 2-3-8731X Trans Slip Yoke","handle":"2-3-8731x","description":"\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e \n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eAlternate Part Number: \u003c\/b\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/2603-26?variant=42556701701\" title=\"PTI 2603-26 Trans Slip Yoke\"\u003e2603-26\u003c\/a\u003e Trans Slip Yoke (Series 7260)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli class=\"current\" data-tab=\"tab-1\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv id=\"tab-1\" class=\"shopify-tab-content current\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various Chrysler, Dodge, and GM Vehicles with 26 spline output shafts including the: 904 \u0026amp; AX15.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e\u003cem\u003e(Center Line to End of Spline)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003ctd\u003e6.000 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.558 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.158 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e26 \u003cem\u003e(25 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDodge, Mitsubishi\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-2\" class=\"shopify-tab-content\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-3\" class=\"shopify-tab-content\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eAlternate Part Number:\u003cbr\u003e\u003c\/b\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/2603-26?variant=42556701701\" title=\"PTI 2603-26 Trans Slip Yoke\"\u003e2603-26\u003c\/a\u003e Trans Slip Yoke (Series 7260)\u003c\/p\u003e","published_at":"2017-09-19T12:48:34-04:00","created_at":"2017-06-27T12:13:08-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["238731X","904","904 Transmission","Application_Transmission Applications: Fits various 26 spline transmission output shafts for early Dodge cars as well as GM and Dodge trucks. Fits Transmission Models","AX15","Barrel OD_1.56\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","Length_6.00\"","Lock Up_3.219\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1310","Spline Diameter_1.16\"","Spline_26","Transmission Make_Chrysler","Transmission Make_Dodge","Transmission Model_904","Transmission Model_AX15","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Dodge","Yoke_Transmission Slip Yoke"],"price":69200,"price_min":69200,"price_max":69200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":33095548037,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-8731X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-8731X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":69200,"weight":980,"compare_at_price":null,"inventory_quantity":9,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913234577","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8731X.jpg?v=1498580307","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8731X_SlipYoke_Spicer.jpg?v=1498580309"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8731X.jpg?v=1498580307","options":["Title"],"media":[{"alt":null,"id":2377814638727,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8731X.jpg?v=1498580307"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8731X.jpg?v=1498580307","width":500},{"alt":null,"id":2377814704263,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8731X_SlipYoke_Spicer.jpg?v=1498580309"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8731X_SlipYoke_Spicer.jpg?v=1498580309","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e \n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eAlternate Part Number: \u003c\/b\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/2603-26?variant=42556701701\" title=\"PTI 2603-26 Trans Slip Yoke\"\u003e2603-26\u003c\/a\u003e Trans Slip Yoke (Series 7260)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli class=\"current\" data-tab=\"tab-1\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv id=\"tab-1\" class=\"shopify-tab-content current\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various Chrysler, Dodge, and GM Vehicles with 26 spline output shafts including the: 904 \u0026amp; AX15.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e\u003cem\u003e(Center Line to End of Spline)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003ctd\u003e6.000 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.558 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.158 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e26 \u003cem\u003e(25 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDodge, Mitsubishi\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-2\" class=\"shopify-tab-content\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-3\" class=\"shopify-tab-content\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eAlternate Part Number:\u003cbr\u003e\u003c\/b\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/2603-26?variant=42556701701\" title=\"PTI 2603-26 Trans Slip Yoke\"\u003e2603-26\u003c\/a\u003e Trans Slip Yoke (Series 7260)\u003c\/p\u003e"}

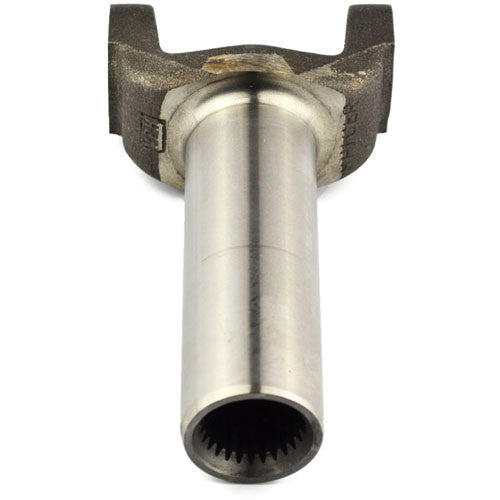

Spicer 2-3-8731X Trans Slip Yoke

$692.00

This part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650 Alternate Part Number: PTI 2603-26 Trans Slip Y...

Spicer 2-3-4871X Trans Slip Yoke (Limited Quantities)

$688.79

{"id":8702421317,"title":"Spicer 2-3-4871X Trans Slip Yoke (Limited Quantities)","handle":"2-3-4871x","description":"\u003ch2\u003eSpicer\/Dana Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD, C4, T-5, T-10, Top Loader, Tremec Tr3550, and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.219 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n6.000 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.500 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.220 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n28 \u003cem\u003e(- see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\u003cbr\u003e\u003cstrong\u003eAlternate Part Numbers:\u003c\/strong\u003e \u003cbr\u003eNeapco \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/n2-3-4871x?variant=5118765334565\" title=\"Neapco N2-3-4871X Trans Slip Yoke\"\u003eN2-3-4871X\u003c\/a\u003e Slip Yoke\u003cbr\u003ePTI \u003ca title=\"PTI 3103-284 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/3103-284?variant=41107373129879\"\u003e3103-284\u003c\/a\u003e Slip Yoke\u003cbr\u003eSonnax\u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/t2-3-4871hp?variant=38956371640471\" title=\"Sonnax T2-3-4871HP Trans Slip Yoke\"\u003e T2-3-4871HP\u003c\/a\u003e Slip Yoke\u003cbr\u003eSpicer \u003ca title=\"Spicer 2-3-8251X Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/2-3-8251x?variant=38130387141\"\u003e2-3-8251X\u003c\/a\u003e Slip Yoke (Length 6.500 Inch)\u003cbr\u003e","published_at":"2017-09-19T12:48:35-04:00","created_at":"2017-08-02T14:34:04-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["2-3-4871","234871X","AOD","AOD-E","AODE","Application_Transmission Applications: Fits various 28 spline transmission output shafts. Fits Transmission Models","Barrel OD_1.50\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","C4","Length_6.00\"","Lock Up_3.219\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1310","Spline Diameter_1.22\"","Spline_28","T-10","T-5","T10","T5","Top Loader","Toploader","TR-3550","TR3550","Transmission Make_Ford","Transmission Model_AOD","Transmission Model_AOD-E","Transmission Model_C4","Transmission Model_T-10","Transmission Model_T-5","Transmission Model_Toploader","Transmission Model_TR3550","Transmission Model_Tremec","Transmission Slip Assembly","Tremec","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":68879,"price_min":68879,"price_max":68879,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":38130385349,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-4871X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-4871X Trans Slip Yoke (Limited Quantities)","public_title":null,"options":["Default Title"],"price":68879,"weight":1120,"compare_at_price":null,"inventory_quantity":7,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913230357","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-4871X.b.jpg?v=1502202623","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-4871X_Top_2307.png?v=1611930295"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-4871X.b.jpg?v=1502202623","options":["Title"],"media":[{"alt":null,"id":2392371134599,"position":1,"preview_image":{"aspect_ratio":1.5,"height":2848,"width":4272,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-4871X.b.jpg?v=1502202623"},"aspect_ratio":1.5,"height":2848,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-4871X.b.jpg?v=1502202623","width":4272},{"alt":null,"id":19326215815319,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-4871X_Top_2307.png?v=1611930295"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-4871X_Top_2307.png?v=1611930295","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD, C4, T-5, T-10, Top Loader, Tremec Tr3550, and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.219 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n6.000 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.500 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.220 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n28 \u003cem\u003e(- see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\u003cbr\u003e\u003cstrong\u003eAlternate Part Numbers:\u003c\/strong\u003e \u003cbr\u003eNeapco \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/n2-3-4871x?variant=5118765334565\" title=\"Neapco N2-3-4871X Trans Slip Yoke\"\u003eN2-3-4871X\u003c\/a\u003e Slip Yoke\u003cbr\u003ePTI \u003ca title=\"PTI 3103-284 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/3103-284?variant=41107373129879\"\u003e3103-284\u003c\/a\u003e Slip Yoke\u003cbr\u003eSonnax\u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/t2-3-4871hp?variant=38956371640471\" title=\"Sonnax T2-3-4871HP Trans Slip Yoke\"\u003e T2-3-4871HP\u003c\/a\u003e Slip Yoke\u003cbr\u003eSpicer \u003ca title=\"Spicer 2-3-8251X Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/2-3-8251x?variant=38130387141\"\u003e2-3-8251X\u003c\/a\u003e Slip Yoke (Length 6.500 Inch)\u003cbr\u003e"}

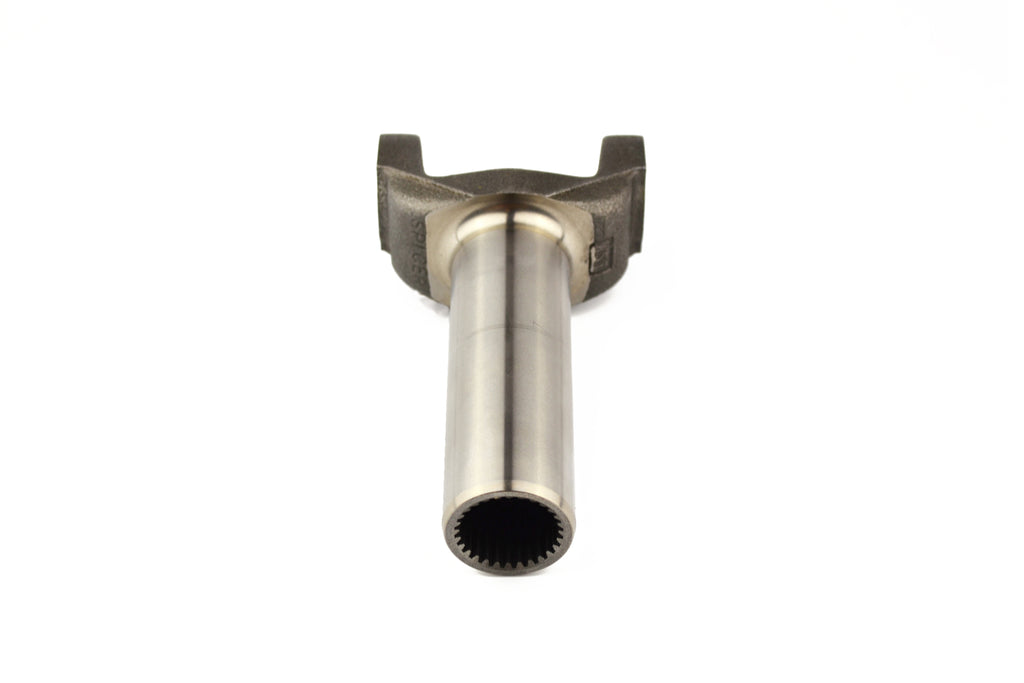

Spicer 2-3-4871X Trans Slip Yoke (Limited Quantities)

$688.79

Spicer/Dana Transmission Slip Yoke Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD, C4, T-5, T-10, Top Loader, Tremec Tr3550, and some Transfer cases. Series: 1310 Style: Outside Snap Ring U-Joint Cap Diam...

Sold Out

Spicer 2-3-8431x Trans Slip Yoke

$650.07

{"id":1227055333428,"title":"Spicer 2-3-8431x Trans Slip Yoke","handle":"2-3-8431x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke \u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli class=\"current\" data-tab=\"tab-1\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv id=\"tab-1\" class=\"shopify-tab-content current\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003e(Center Line to End of Spline)\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e6.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e1.375 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e25 \u003cem\u003e(24 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eFord\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-2\" class=\"shopify-tab-content\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-3\" class=\"shopify-tab-content\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/3103-251?variant=13568955383860\" title=\"PTI 3103-251 Trans Slip Yoke\"\u003e3103-251\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e","published_at":"2017-05-17T14:27:52-04:00","created_at":"2018-08-31T13:37:12-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["238431x","A4LD","Application_Transmission Applications: Fits many Ford 25 spline Transmissions. Fits Transmission Models","Barrel OD_1.37\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","C-3","C3","Length_6.50\"","Lock Up_3.219\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1310","Spline Diameter_1.11\"","Spline_25","Transmission Make_Ford","Transmission Model_5R55E","Transmission Model_A4LD","Transmission Model_C3","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":65007,"price_min":65007,"price_max":65007,"available":false,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":9492347813940,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-8431x","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Spicer 2-3-8431x Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":65007,"weight":1134,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913231859","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Back_12527.png?v=1642702434","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528.png?v=1535738563","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Top_13998.png?v=1535738565"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Back_12527.png?v=1642702434","options":["Title"],"media":[{"alt":null,"id":2611742539911,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Back_12527.png?v=1642702434"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Back_12527.png?v=1642702434","width":600},{"alt":null,"id":2611742572679,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528.png?v=1535738563"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528.png?v=1535738563","width":600},{"alt":null,"id":2611742605447,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Top_13998.png?v=1535738565"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Top_13998.png?v=1535738565","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke \u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli class=\"current\" data-tab=\"tab-1\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv id=\"tab-1\" class=\"shopify-tab-content current\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003e(Center Line to End of Spline)\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e6.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e1.375 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e25 \u003cem\u003e(24 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eFord\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-2\" class=\"shopify-tab-content\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-3\" class=\"shopify-tab-content\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/3103-251?variant=13568955383860\" title=\"PTI 3103-251 Trans Slip Yoke\"\u003e3103-251\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e"}

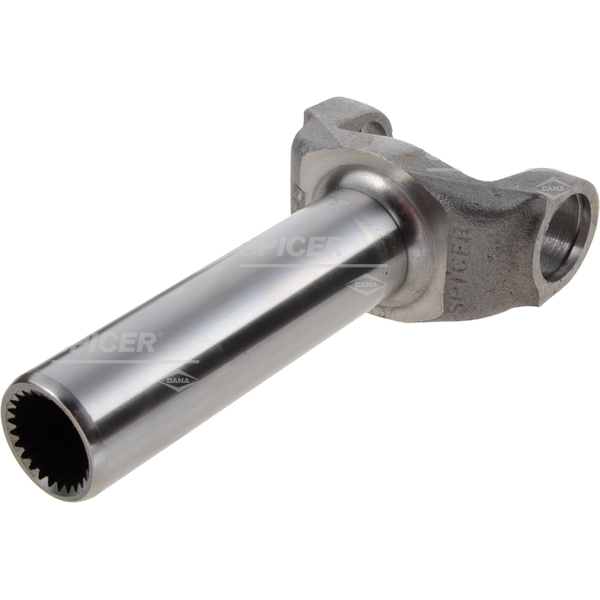

Spicer 2-3-8431x Trans Slip Yoke

$650.07

Spicer/Dana Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. Series: 1310 Style: Outside Snap Ring U-Joint Cap Diameter (A): 1.063 Inch...

Spicer 2-3-1331X Trans Slip Yoke

$604.72

{"id":8702420997,"title":"Spicer 2-3-1331X Trans Slip Yoke","handle":"2-3-1331x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e \n\u003cli data-tab=\"tab-4\"\u003eVehicle\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 16 spline transmissions Powerglide in the early Chevrolet passenger cars.\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.219 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n4.875 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.172 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n16 \u003cem\u003e(see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM - Fits older 16 spline Powerglide transmissions from 1955 to 1964.\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eThis is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.\u003c\/p\u003e\n\u003cp\u003eDana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\" alt=\"\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e \u003cdiv class=\"shopify-tab-content\" id=\"tab-4\"\u003e\u003cp\u003eFits 16 spline Powerglide transmissions from years: 1955-1964\u003cbr\u003e1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964.\u003c\/p\u003e\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cbr\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Instock Part:\u003cbr\u003e\u003c\/strong\u003ePTI \u003ca title=\"PTI 3103-163 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/3103-163?variant=40910160593047\"\u003e3103-163\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e","published_at":"2017-08-02T14:34:04-04:00","created_at":"2017-08-02T14:34:04-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["231331X","3103-163","Application_Transmission Applications: Fits older 16 spline Powerglide transmissions from 1955 to 1964. Fits Transmission Applications:","Barrel OD_1.50\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","Length_4.88\"","Lock Up_3.219\"","Part_Transmission Slip Yoke","Part_Yoke","Powerglide","Series_1310","Spline Diameter_1.17\"","Spline_16","Transmission Make_GM","Transmission Model_Powerglide","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_GM","Yoke_Transmission Slip Yoke"],"price":60472,"price_min":60472,"price_max":60472,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":38130384901,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-1331X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-1331X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":60472,"weight":789,"compare_at_price":null,"inventory_quantity":2,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913235796","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-1331X.b.jpg?v=1707236222"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-1331X.b.jpg?v=1707236222","options":["Title"],"media":[{"alt":null,"id":2392371232903,"position":1,"preview_image":{"aspect_ratio":1.493,"height":1591,"width":2376,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-1331X.b.jpg?v=1707236222"},"aspect_ratio":1.493,"height":1591,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-1331X.b.jpg?v=1707236222","width":2376}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e \n\u003cli data-tab=\"tab-4\"\u003eVehicle\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 16 spline transmissions Powerglide in the early Chevrolet passenger cars.\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.219 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n4.875 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.172 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n16 \u003cem\u003e(see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM - Fits older 16 spline Powerglide transmissions from 1955 to 1964.\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eThis is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.\u003c\/p\u003e\n\u003cp\u003eDana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\" alt=\"\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e \u003cdiv class=\"shopify-tab-content\" id=\"tab-4\"\u003e\u003cp\u003eFits 16 spline Powerglide transmissions from years: 1955-1964\u003cbr\u003e1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964.\u003c\/p\u003e\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cbr\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Instock Part:\u003cbr\u003e\u003c\/strong\u003ePTI \u003ca title=\"PTI 3103-163 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/3103-163?variant=40910160593047\"\u003e3103-163\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e"}

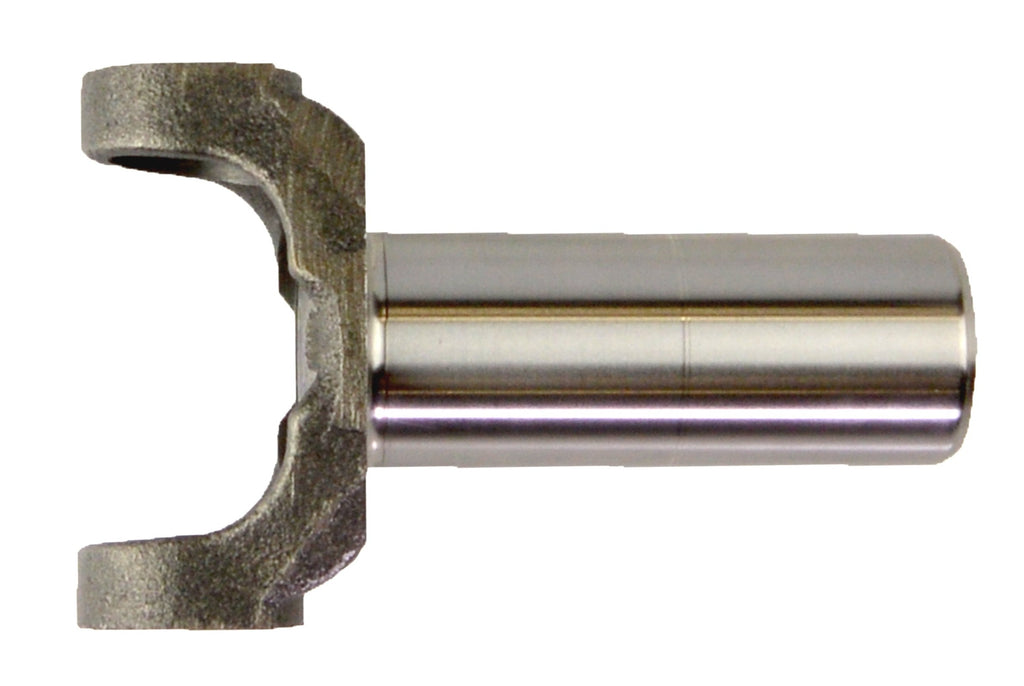

Spicer 2-3-1331X Trans Slip Yoke

$604.72

Spicer/Dana Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Vehicle Transmission & Transfer Case Applications: Fits various 16 spline transmissions Powerglide in the early Chevrolet passenger cars. Series: 1310 Style: Outside Snap Ring U-Joint Cap Diameter (A): 1.063 Inch U-Joint Width (B):...

Spicer 2-3-13721X Trans Slip Yoke

$425.09

{"id":8702420293,"title":"Spicer 2-3-13721X Trans Slip Yoke","handle":"2-3-13721x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSpecifications\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003e Slip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n6.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Barrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.374 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Number Of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 25 (24 with blind spot - see note below*)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Material:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/3303-251?variant=42692170252515\" title=\"PTI 3303-251 Trans Slip Yoke\"\u003e3303-251\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003e","published_at":"2020-11-20T09:27:36-05:00","created_at":"2017-08-02T14:34:02-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["2-3-15461X","2313721X","2315461X","A4LD","Application_Transmission Applications: Fits many Ford 25 spline Transmissions. Fits Transmission Models","Barrel OD_1.37\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","C-3","C3","Length_6.86\"","Lock Up_3.625\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1330","Spline Diameter_1.11\"","Spline_25","Transmission Make_Ford","Transmission Model_5R55E","Transmission Model_A4LD","Transmission Model_C3","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":42509,"price_min":42509,"price_max":42509,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":38130382597,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-13721X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-13721X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":42509,"weight":1070,"compare_at_price":null,"inventory_quantity":2,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913232986","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X.b.jpg?v=1696270953","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X_Top_2279.png?v=1605880175"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X.b.jpg?v=1696270953","options":["Title"],"media":[{"alt":null,"id":2392372019335,"position":1,"preview_image":{"aspect_ratio":0.642,"height":2279,"width":1464,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X.b.jpg?v=1696270953"},"aspect_ratio":0.642,"height":2279,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X.b.jpg?v=1696270953","width":1464},{"alt":null,"id":15958737649815,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X_Top_2279.png?v=1605880175"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X_Top_2279.png?v=1605880175","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSpecifications\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003e Slip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n6.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Barrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.374 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Number Of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 25 (24 with blind spot - see note below*)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Material:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/3303-251?variant=42692170252515\" title=\"PTI 3303-251 Trans Slip Yoke\"\u003e3303-251\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003e"}

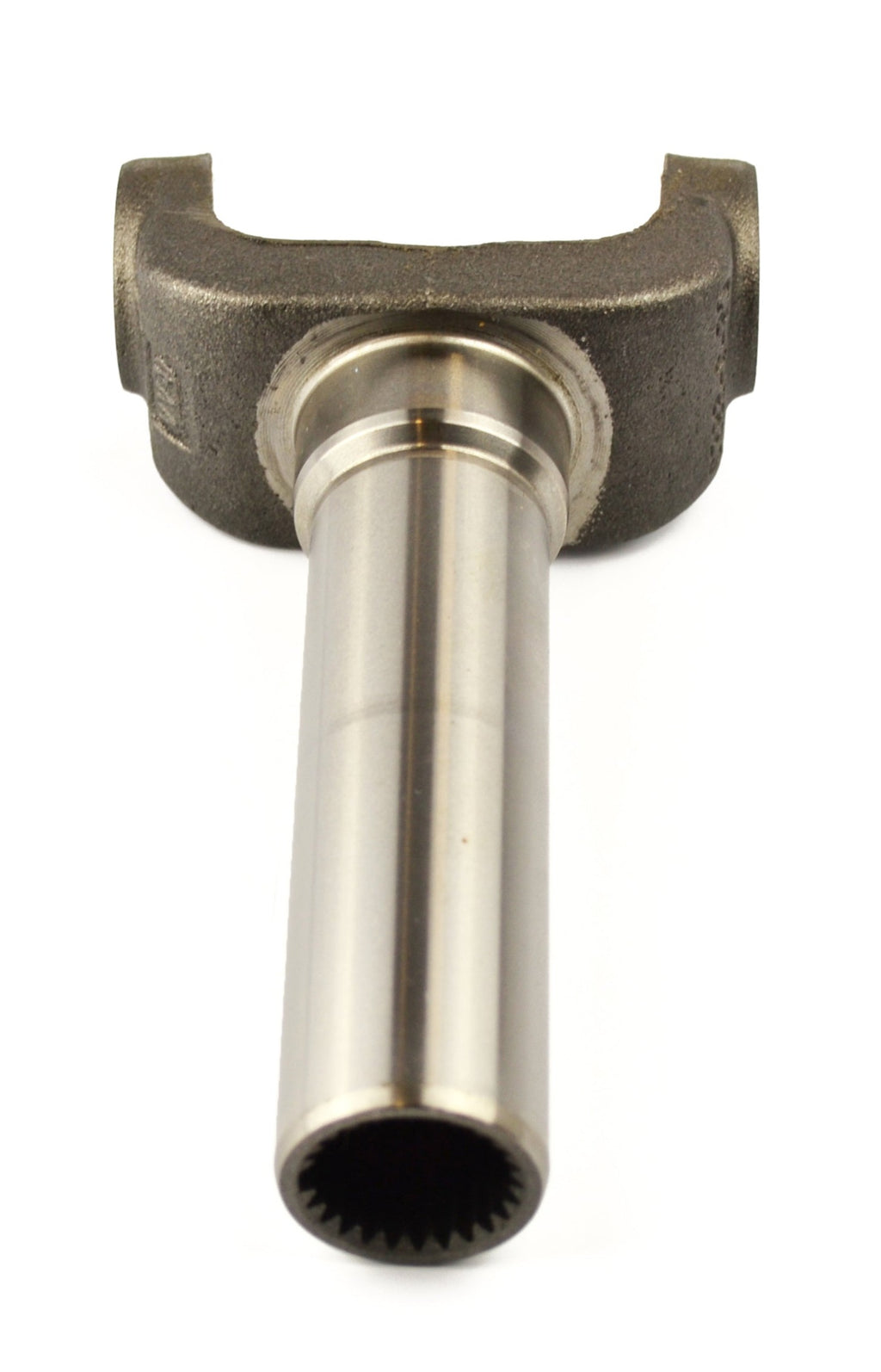

Spicer 2-3-13721X Trans Slip Yoke

$425.09

Spicer/Dana Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. Specifications Series: 1330 Style: Outside Snap Ring U-Joint Cap Diameter ...

Sold Out

Spicer 2-3-13691X Trans Slip Yoke

$335.05

{"id":6389031665815,"title":"Spicer 2-3-13691X Trans Slip Yoke","handle":"2-3-13691x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca title=\"PTI 3303-283 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/3303-283?variant=42299046527203\"\u003e3303-283\u003c\/a\u003e Slip Yoke\u003cbr\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cbr\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD, C4, T-5, T-10, Top Loader, Tremec Tr3550, and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e7.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.497 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.220 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e28 \u003cem\u003e(27 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cbr\u003e\u003cstrong\u003eAlternate Part Option:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca title=\"PTI 3303-283 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/3303-283?variant=42299046527203\"\u003e3303-283\u003c\/a\u003e Slip Yoke","published_at":"2021-01-26T14:07:34-05:00","created_at":"2021-01-26T13:57:41-05:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["235981X","AOD","AOD-E","AODE","Application_Transmission Applications: Fits various 28 spline transmission output shafts. Fits Transmission Models","Barrel OD_1.50\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","C4","Length_7.86\"","Lock Up_3.625\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1330","Spline Diameter_1.22\"","Spline_28","T-10","T-5","T10","T5","Top Loader","Toploader","TR-3550","TR3550","Transmission Make_Ford","Transmission Model_AOD","Transmission Model_AOD-E","Transmission Model_C4","Transmission Model_T-10","Transmission Model_T-5","Transmission Model_Toploader","Transmission Model_TR3550","Transmission Model_Tremec","Transmission Slip Assembly","Tremec","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":33505,"price_min":33505,"price_max":33505,"available":false,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":38917779095703,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-13691X","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Spicer 2-3-13691X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":33505,"weight":1043,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913233204","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Front_11809.png?v=1611687487","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Top_11808.png?v=1611687487"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Front_11809.png?v=1611687487","options":["Title"],"media":[{"alt":null,"id":19286915743895,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Front_11809.png?v=1611687487"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Front_11809.png?v=1611687487","width":600},{"alt":null,"id":19286915776663,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Top_11808.png?v=1611687487"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Top_11808.png?v=1611687487","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003eCHAT\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e(574)287-9650\u003c\/a\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca title=\"PTI 3303-283 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/3303-283?variant=42299046527203\"\u003e3303-283\u003c\/a\u003e Slip Yoke\u003cbr\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cbr\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD, C4, T-5, T-10, Top Loader, Tremec Tr3550, and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e7.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.497 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.220 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e28 \u003cem\u003e(27 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cbr\u003e\u003cstrong\u003eAlternate Part Option:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca title=\"PTI 3303-283 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/3303-283?variant=42299046527203\"\u003e3303-283\u003c\/a\u003e Slip Yoke"}

Spicer 2-3-13691X Trans Slip Yoke

$335.05

PTI 5503-367 Trans Slip Yoke

$310.03

{"id":7496600682723,"title":"PTI 5503-367 Trans Slip Yoke","handle":"5503-367","description":"\u003ch2\u003ePTI Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n \u003cbr\u003e\n\u003c\/div\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits 2006+ Dodge Ram 3500 Rear 2pc \/ SNAP ON SEAL\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1550 (1555)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Lock Up (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4.969 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.375 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDodge\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 7.441 Inch (189.00 mm)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n \u003cstrong\u003eSpline Outside Diameter (E):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.547 Inch (39.3 mm)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline* (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 36 \u003cem\u003e(34 with blind spots - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e2.071 Inch (52.60 mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFull Spline\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003ePowertrain Industries Driveshaft Slip Yoke\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\n\u003cbr\u003e\n\u003cp\u003e\u003cb\u003eCompatible\u003c\/b\u003e\u003cstrong\u003e Parts:\u003cbr\u003e\u003c\/strong\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/collections\/hardware\/products\/4818-367?variant=38732835094679\" title=\"PTI 4818-367 Boot Kit\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/collections\/hardware\/products\/4818-367?variant=38732835094679\"\u003e4818-367\u003c\/a\u003e Boot and Clamp Kit\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003eAAM \u003ca href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/40038044?variant=42236703637731\" title=\"AAM 40038044 Trans Slip Yoke\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/40038044?variant=42236703637731\"\u003e40038044\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003e\u003c\/p\u003e\n","published_at":"2021-12-20T08:41:40-05:00","created_at":"2021-12-20T08:41:40-05:00","vendor":"PTI","type":"Slip Yoke","tags":["Application_Dodge 36 Spline 1555 Series Fits Transmission Models","Barrel OD_2.07\"","Bearing Cap Diameter_1.375\"","Brand_PTI","Length_7.44\"","Lock Up_4.969\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1550","Spline Diameter_1.55\"","Spline_36","Transfer Case Slip Assembly","Transmission Make_Dodge","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Dodge","Yoke_Transmission Slip Yoke"],"price":31003,"price_min":31003,"price_max":31003,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42243108929763,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"5503-367","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PTI 5503-367 Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":31003,"weight":3629,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935310.3891.-PTIWM.jpg?v=1640007894","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935318.2218.-PTIWM.jpg?v=1640007751","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935314.4234.-PTIWM.jpg?v=1640007746"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935310.3891.-PTIWM.jpg?v=1640007894","options":["Title"],"media":[{"alt":null,"id":28921439387875,"position":1,"preview_image":{"aspect_ratio":0.774,"height":500,"width":387,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935310.3891.-PTIWM.jpg?v=1640007894"},"aspect_ratio":0.774,"height":500,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935310.3891.-PTIWM.jpg?v=1640007894","width":387},{"alt":null,"id":28921439355107,"position":2,"preview_image":{"aspect_ratio":1.042,"height":480,"width":500,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935318.2218.-PTIWM.jpg?v=1640007751"},"aspect_ratio":1.042,"height":480,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935318.2218.-PTIWM.jpg?v=1640007751","width":500},{"alt":null,"id":28921439420643,"position":3,"preview_image":{"aspect_ratio":1.497,"height":334,"width":500,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935314.4234.-PTIWM.jpg?v=1640007746"},"aspect_ratio":1.497,"height":334,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935314.4234.-PTIWM.jpg?v=1640007746","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003ePTI Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n \u003cbr\u003e\n\u003c\/div\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits 2006+ Dodge Ram 3500 Rear 2pc \/ SNAP ON SEAL\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1550 (1555)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Lock Up (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4.969 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.375 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDodge\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 7.441 Inch (189.00 mm)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n \u003cstrong\u003eSpline Outside Diameter (E):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.547 Inch (39.3 mm)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline* (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 36 \u003cem\u003e(34 with blind spots - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e2.071 Inch (52.60 mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFull Spline\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003ePowertrain Industries Driveshaft Slip Yoke\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\n\u003cbr\u003e\n\u003cp\u003e\u003cb\u003eCompatible\u003c\/b\u003e\u003cstrong\u003e Parts:\u003cbr\u003e\u003c\/strong\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/collections\/hardware\/products\/4818-367?variant=38732835094679\" title=\"PTI 4818-367 Boot Kit\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/collections\/hardware\/products\/4818-367?variant=38732835094679\"\u003e4818-367\u003c\/a\u003e Boot and Clamp Kit\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003eAAM \u003ca href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/40038044?variant=42236703637731\" title=\"AAM 40038044 Trans Slip Yoke\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/40038044?variant=42236703637731\"\u003e40038044\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003e\u003c\/p\u003e\n"}

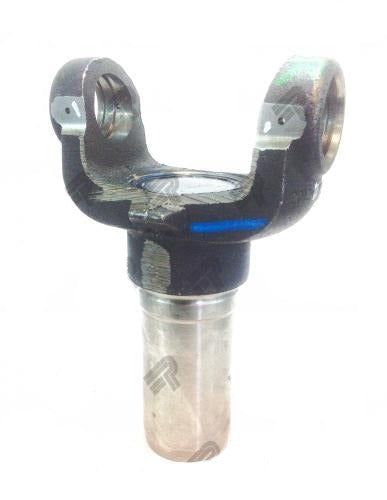

PTI 5503-367 Trans Slip Yoke

$310.03

PTI Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits 2006+ Dodge Ram 3500 Rear 2pc / SNAP ON SEAL Series: 1550 (1555) U-Joint Lock Up (B): 4.969 Inch Bearing Cap Diameter (A): 1.375 Inch Vehicle Make: Dodge Center Line to End of Spline (C):...

Sonnax T3-3-2431CBH Trans Slip Yoke

$295.00

{"id":4384877904007,"title":"Sonnax T3-3-2431CBH Trans Slip Yoke","handle":"t3-3-2431cbh","description":"\u003ch2\u003eSonnax Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits the GM transmissions with 32 spline output shaft Turbo 400, TH-400, Super T-10, Richmond, M22, M21, M20, Jericho, 4L85E, 4L80E and confirm dimensions for transfer cases fitment. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1350\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\n\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.188 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n \u003cb\u003eU-Joint Width (B):\u003c\/b\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5.500 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOverall Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.370 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.800 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub \/ Seal \/ Journal Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.888 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.378 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline* (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCounter Bore\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003eForged 4340 Chromoly\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eIf you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Transmission Slip yoke with and without counter bore\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eSlip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings.\u003c\/p\u003e\n\u003cp\u003eSonnax performance roller bearing slip yoke T3-3-2431CBH is specifically designed for use with tail housings that are equipped with a roller bearing instead of a bushing. It is forged from rugged chromoly steel, precision machined, through-hardened and expertly tempered to be able to withstand the most severe performance environments. Perfectly suited for all high-horsepower and torque capacity vehicles, whether at the strip, on the street or at the track.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eForged 4340 chromoly\u003c\/li\u003e\n\u003cli\u003eThrough-hardened, tempered barrel\u003c\/li\u003e\n\u003cli\u003eUnique Sonnax design increases strength in critical areas\u003c\/li\u003e\n\u003cli\u003eUse with single- or double-roller bearings\u003c\/li\u003e\n\u003cli\u003e100% leak tested to 40 psi\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch1\u003eSonnax Performance Slip Yokes\u003c\/h1\u003e\n\u003ch2\u003eQuality \u0026amp; Engineering You Can Trust\u003c\/h2\u003e\n\u003cp\u003eA Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFully machined from billet steel for enhanced strength \u0026amp; durability\u003c\/li\u003e\n\u003cli\u003eLeak-free plug tested to 40 psi for optimum sealing\u003c\/li\u003e\n\u003cli\u003e1330 \u0026amp; 1350 Series yokes are chromoly steel\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e","published_at":"2019-12-02T13:40:13-05:00","created_at":"2019-12-02T13:40:13-05:00","vendor":"Sonnax","type":"Slip Yoke","tags":["4L80","4L80-E","4L80E","4L85","Application_Transmission Applications: For roller bearing tail housing. Fits Transmission Applications","Barrel OD_1.89\"","Bearing Cap Diameter_1.188\"","Brand_Sonnax","Length_5.50\"","Lock Up_3.625\"","M-20","M20","M21","M22","Part_Transmission Slip Yoke","Part_Yoke","Series_1350","Spline Diameter_1.38\"","Spline_32","T-10","T10","T332431CBH","TH-400","Transmission Model_4L80E","Transmission Model_4L85E","Transmission Model_M20","Transmission Model_M21","Transmission Model_M22","Transmission Model_T-10","Transmission Model_TH-400","Transmission Model_Turbo 400","Transmission Slip Assembly","Turbo 400","U-Joint Type_Outside Snap Ring","Vehicle_GM","Yoke_Transmission Slip Yoke"],"price":29500,"price_min":29500,"price_max":29500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31295160352903,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"T3-3-2431CBH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sonnax T3-3-2431CBH Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":29500,"weight":1270,"compare_at_price":null,"inventory_quantity":-2,"inventory_management":null,"inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-2431CBH.jpg?v=1575312083"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-2431CBH.jpg?v=1575312083","options":["Title"],"media":[{"alt":null,"id":5795125493895,"position":1,"preview_image":{"aspect_ratio":1.293,"height":580,"width":750,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-2431CBH.jpg?v=1575312083"},"aspect_ratio":1.293,"height":580,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-2431CBH.jpg?v=1575312083","width":750}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSonnax Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits the GM transmissions with 32 spline output shaft Turbo 400, TH-400, Super T-10, Richmond, M22, M21, M20, Jericho, 4L85E, 4L80E and confirm dimensions for transfer cases fitment. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1350\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\n\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.188 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n \u003cb\u003eU-Joint Width (B):\u003c\/b\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5.500 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOverall Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.370 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.800 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub \/ Seal \/ Journal Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.888 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.378 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline* (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCounter Bore\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003eForged 4340 Chromoly\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eIf you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Transmission Slip yoke with and without counter bore\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eSlip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings.\u003c\/p\u003e\n\u003cp\u003eSonnax performance roller bearing slip yoke T3-3-2431CBH is specifically designed for use with tail housings that are equipped with a roller bearing instead of a bushing. It is forged from rugged chromoly steel, precision machined, through-hardened and expertly tempered to be able to withstand the most severe performance environments. Perfectly suited for all high-horsepower and torque capacity vehicles, whether at the strip, on the street or at the track.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eForged 4340 chromoly\u003c\/li\u003e\n\u003cli\u003eThrough-hardened, tempered barrel\u003c\/li\u003e\n\u003cli\u003eUnique Sonnax design increases strength in critical areas\u003c\/li\u003e\n\u003cli\u003eUse with single- or double-roller bearings\u003c\/li\u003e\n\u003cli\u003e100% leak tested to 40 psi\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch1\u003eSonnax Performance Slip Yokes\u003c\/h1\u003e\n\u003ch2\u003eQuality \u0026amp; Engineering You Can Trust\u003c\/h2\u003e\n\u003cp\u003eA Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFully machined from billet steel for enhanced strength \u0026amp; durability\u003c\/li\u003e\n\u003cli\u003eLeak-free plug tested to 40 psi for optimum sealing\u003c\/li\u003e\n\u003cli\u003e1330 \u0026amp; 1350 Series yokes are chromoly steel\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e"}

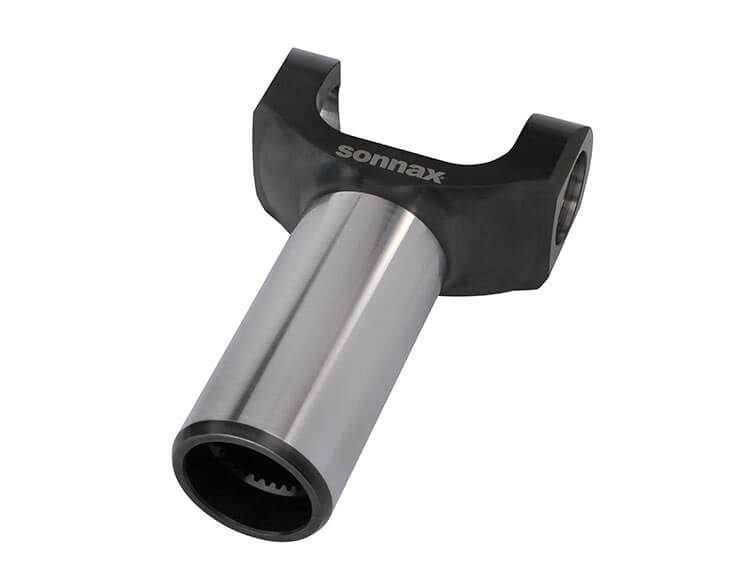

Sonnax T3-3-2431CBH Trans Slip Yoke
