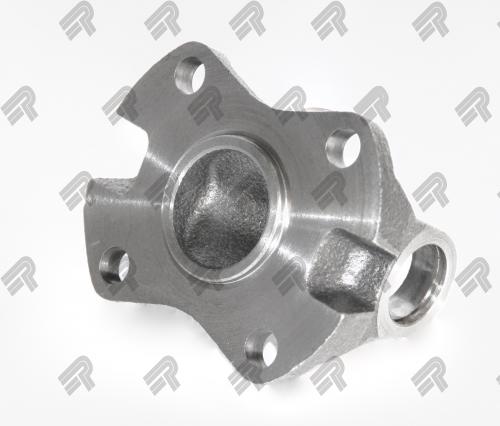

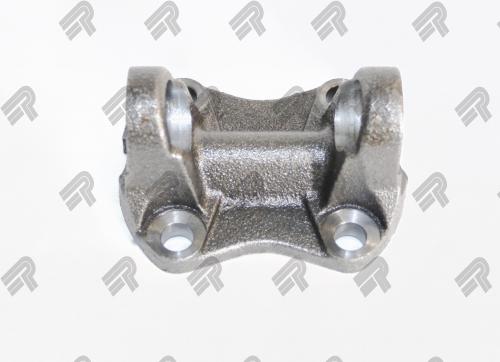

PTI 3302-185 Flange Yoke

Vendor: PTI, Sku: 3302-185

Previous Product | Next Product

Product Description

Series: 1330
Pilot Dia.: 1.811" M
Outside Snap Ring

Cap: 1.063" Width: 3.625"
Bolt Circle: 3.661"
Manufacturer: PTI

Series: 1330
Pilot Dia.: 1.811" M
Outside Snap Ring
Cap: 1.063" Width: 3.625"
Bolt Circle: 3.661"
Manufacturer: PTI

PTI Driveshaft Flange Yoke

U-Joint Type:	Outside Lock-Up
Bolt Circle:	3.661 Inch
Series:	1330
Snap Ring to Snap Ring:	3.625 Inch
Bearing Cap Diameter:	1.062 Inch
Flange Face to CL:	1.625 Inch
Hole Diameter:	0.482 Inch - Drilled
Number of Bolt Holes:	4
Pilot Diameter:	1.811 Inch - Male
Material:	Steel
Flange Or Swing Diameter:	4.528 Inch

VMRS: 024002016

Fitment

Vehicle Make	Model	Year
Volvo
Toyota	Tacoma	1995-2004
Toyota	Tacoma Pre-Runners	1998-2004
Toyota	2WD Trucks	1998-2004

Compatible Applications / Alternate Parts:

OE Part Number	5002768
Neapco	N2-2-1904
Spicer	2-2-01904 (Discontinued) 2-2-02768

Sku: 3302-185

Vendor: PTI

$55.28

Maximum quantity available reached.

DETAILS

U-Joint Series:	1330
U-Joint Cap Size (B):	1.063"
U-Joint Width (A):	3.625"
Snap Ring Type:	Outside Snap Ring
Manufacturer:	PTI
Pilot Diameter (G):	1.811" M
Bolt Circle (E):	3.661"
Manufacturer Part Number:	3302-185
Flange or Swing Diameter (J):	4.528"
Bolt Hole (F):	0.482"
Number of Bolt Holes:	4
OEM/Alternate Part Number:

“Outside
