AAM 26060881 End Yoke

Vendor: AAM, Sku: 26060881

Next Product
Product Description

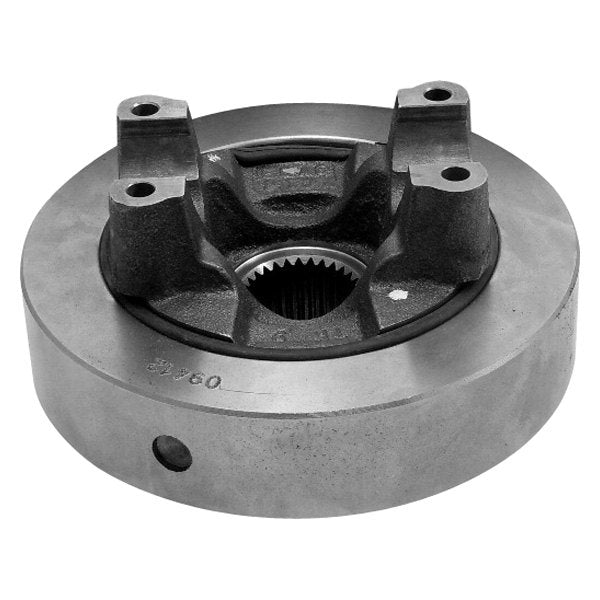

Drive Shaft End Yoke / Pinion Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications

U-Joint Series: 1355 (1350)
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.612 Inch
End Yoke Length(C):
- Center Line to End of Spline 		3.125 Inch
Hub Diameter (D): 2.110 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point 		1.312 Inch
Number of Splines (F): 30
Bore Length (G): 1.150 Inch
Rear Axle Type:
GM 9.50 Inch


How to Measure a Driveshaft Slip Yoke.

Application for the 9.5"

GM
 Rear Axle 9.5" 14 Bolt - Rear Axle


Vehicle Information

Pinion seal will be necessary on all application before 2000.

GM 9.5" 1 TON GM PICKUP 1982 - 1995 (REAR)
1 TON GM VAN 1982 - 1995 (REAR)
1/2 TON GM PICKUP 1988 - 2006 (REAR)
3/4 TON GM PICKUP 1979 - 2006 (REAR)
3/4 TON GM VAN 1981 - 2006 (REAR)
AVALANCHE 2002 - 2006 (REAR)
H2 2003 - 2006 (REAR)
SUBURBAN 3/4 TON 1988 - 2005 (REAR)



****

This part is compatible with:
SKU 3570-20 : Strap Kit
SKU 1-0020 : Strap Kit

Alternate Part Numbers:
40014943, 26060877, 12471689, 26064012, 40003286, 12470384, 26060880, 74004012, 74004943, 74004010, 84234617

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
