Driveshaft Parts
Sonnax T9-28-1350FD End Yoke
End Yoke | T9-28-1350FD
- Series: ∙ 1350
- Spline Count: 28
- Spline OD: 1.218"
- Bore Length: 2.112"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.810"
- Style: Outside Snap Ring
Rear Axle Type: | Ford 9.00"
- U-Joint Series: , 1350
- Spline Count: 28
- Spline OD: 1.218"
- Bore Length: 2.112"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.810"
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 9.00"

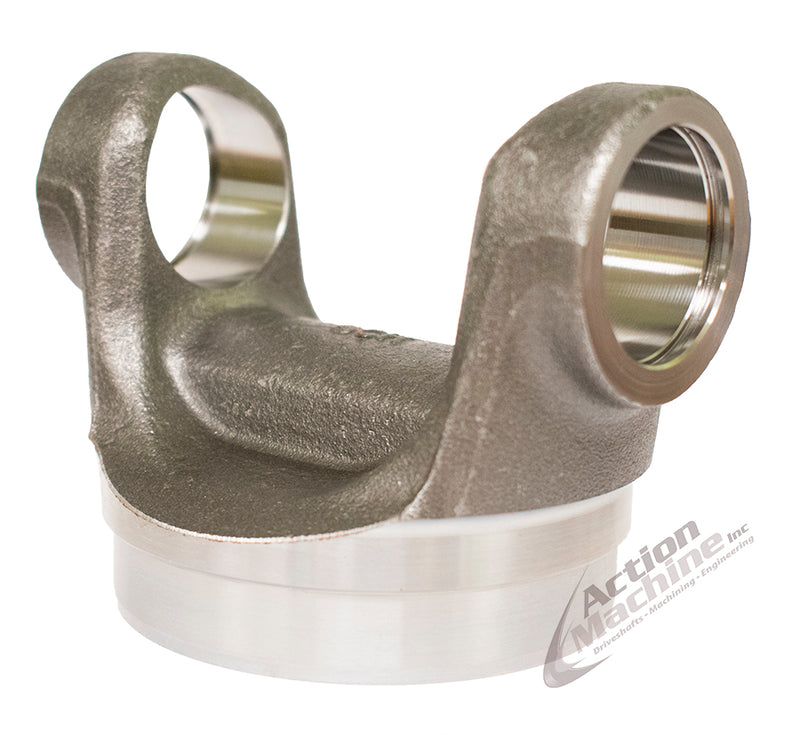

Spicer 100-28-17 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | 100-28-17
- Series: SPL 100
- Type: Outside Snap Ring
- Tube OD: 4.000"
- Material: Steel
- Series: SPL 100
- Type: Outside Snap Ring
- Tube OD: 4.000"
- Material: Steel

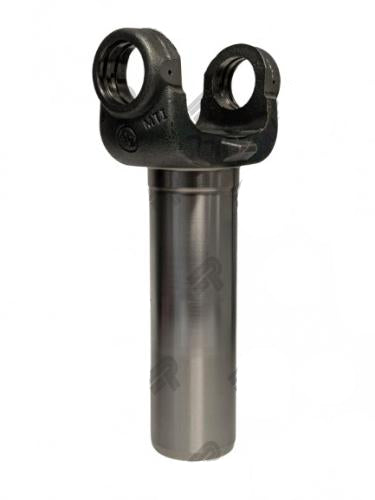

Spicer 100-3-41X Slip Yoke
Mid Shaft Slip Yoke | 100-3-41X
- Series: SPL 100
- Spline Count: 30
- Spline Dia.: 1.965”
- Grease: Greasable
- U-joint: 1.625" X 4.957"
- Length: 9.681"
- Outside Snap Ring
- Series: SPL 100
- Spline Count: 30
- Spline Dia.: 1.965”
- U-joint: 1.625" X 4.957"
- Length: 9.681"
- Outside Snap Ring
Spicer 100-4-1551-1X End Yoke
End Yoke | 100-4-1551-1x
- Series: ∙ SPL 100
- Spline Count: 39
- Spline OD: 2.024"
- Bore Length: 2.281"
- Cap OD: 1.625"
- Yoke Span: 4.957"
- Hub Dia.: 3.000"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , SPL 100
- Spline Count: 39
- Spline OD: 2.024"
- Bore Length: 2.281"
- Cap OD: 1.625"
- Yoke Span: 4.957"
- Hub Dia.: 3.000"
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 10025466 End Yoke
End Yoke | 10025466
- Series: ∙ 1350
- Spline Count: 30
- Spline OD: 1.300”
- Bore Length: 1.181”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.939”
- Style: Outside Snap Ring
Rear Axle Type: | GM 8.50"
- U-Joint Series: , 1350
- Spline Count: 30
- Spline OD: 1.300”
- Bore Length: 1.181”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.939”
- Style: Outside Snap Ring
- Rear Axle Type: | GM 8.50"
Spicer 10025485 End Yoke
End Yoke | 10025485
- Series: ∙ 1350
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.425”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
Rear Axle Type: | Ford 9.00"
- U-Joint Series: , 1350
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.425”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 9.00"
Spicer 10025493 End Yoke
End Yoke | 10025493
- Series: ∙ 1350
- Spline Count: 30
- Spline OD: 1.328”
- Bore Length: 1.184”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.739”
- Style: Outside Snap Ring
Rear Axle Type: | GM 8.875"-12 Bolt
- U-Joint Series: , 1350
- Spline Count: 30
- Spline OD: 1.328”
- Bore Length: 1.184”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.739”
- Style: Outside Snap Ring
- Rear Axle Type: | GM 8.875"-12 Bolt
Spicer 10025494 End Yoke
End Yoke | 10025494
- Series: ∙ 1350
- Spline Count: 29
- Spline OD: 1.276”
- Bore Length: 1.187”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.500”
- Style: Outside Snap Ring
Rear Axle Type: | Dana 60/70
- U-Joint Series: , 1350
- Spline Count: 29
- Spline OD: 1.276”
- Bore Length: 1.187”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.500”
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 60/70
Spicer 10025502 End Yoke
End Yoke | 10025502
- Series: ∙ 1350
- Spline Count: 29
- Spline OD: 1.276”
- Bore Length: 1.500”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.875”
- Style: Outside Snap Ring
Rear Axle Type: | Chrysler 8.75" | Chrysler 9.25" Front Axle
- U-Joint Series: , 1350
- Spline Count: 29
- Spline OD: 1.276”
- Bore Length: 1.500”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.875”
- Style: Outside Snap Ring
- Rear Axle Type: | Chrysler 8.75" | Chrysler 9.25" Front Axle
Spicer 140-4-11-1 End Yoke
End Yoke | 140-4-11-1
- Series: ∙ SPL 140
- Spline Count: 38
- Spline OD: 1.998"
- Bore Length: 2.745”
- Cap OD: 1.937"
- Yoke Span: 5.457”
- Hub Dia.: 2.810”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , SPL 140
- Spline Count: 38
- Spline OD: 1.998"
- Bore Length: 2.745”
- Cap OD: 1.937"
- Yoke Span: 5.457”
- Hub Dia.: 2.810”
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 140-4-311-1X End Yoke
End Yoke | 140-4-311-1X
- Series: ∙ SPL 140
- Spline Count: 46
- Spline OD: 2.390”
- Bore Length: 2.323”
- Cap OD: 1.937"
- Yoke Span: 5.457”
- Hub Dia.: 3.250”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , SPL 140
- Spline Count: 46
- Spline OD: 2.390”
- Bore Length: 2.323”
- Cap OD: 1.937"
- Yoke Span: 5.457”
- Hub Dia.: 3.250”
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 170-4-1221-1X End Yoke
End Yoke | 170-4-1221-1X
- Series: ∙ SPL 170
- Spline Count: 46
- Spline OD: 2.374”
- Bore Length: 2.406”
- Cap OD: 2.165"
- Yoke Span: 6.456"
- Hub Dia.: 3.500”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , SPL 170
- Spline Count: 46
- Spline OD: 2.374”
- Bore Length: 2.406”
- Cap OD: 2.165"
- Yoke Span: 6.456"
- Hub Dia.: 3.500”
- Style: Outside Snap Ring
- Rear Axle Type:
