Neapco 4-1090 U-Joint
Universal Joint Kit | 4-1090
- Series: SPL 90 X SPL 100
- Grease: Greasable
- Outside Snap Ring
- Cap Size: 1.625"
- Lock Up: 4.957"
- Brand: Neapco
- Series: SPL 90 X SPL 100
- Grease: Greasable
- Outside Snap Ring
- Cap Size: 1.625"
- Lock Up: 4.957"
- Brand: Neapco
Spicer 90-2-19 Flange Yoke
Flange Yoke | 90-2-19
- Series: SPL 90
- Pilot Dia.: 6.624" M
- Outside Snap Ring
- U-joint: 1.625" X 4.957"
- Bolt Circle: 6.124"
- Manufacturer: Spicer/Dana
- Series: SPL 90
- Pilot Dia.: 6.624" M
- Outside Snap Ring
- Cap: 1.625" Width: 4.957"
- Bolt Circle: 6.124"
- Manufacturer: Spicer/Dana
Spicer 90-2-39-1 Flange Yoke
Flange Yoke | 90-2-39-1
- Series: SPL 90
- Pilot Dia.: 6.438" M
- Outside Snap Ring
- U-joint: 1.625" X 4.957"
- Bolt Circle: 7.250"
- Manufacturer: Spicer/Dana
- Series: SPL 90
- Pilot Dia.: 6.438" M
- Outside Snap Ring
- Cap: 1.625" Width: 4.957"
- Bolt Circle: 7.250"
- Manufacturer: Spicer/Dana
Spicer 90-3-41X Slip Yoke Assembly
Mid Shaft Slip Yoke | 90-3-41X
- Series: SPL 90
- Spline Count: 30
- U-joint: 1.625" X 4.957"
- Outside Snap Ring
- Series: SPL 90
- Spline Count: 30
- U-joint: 1.625" X 4.957"
- Outside Snap Ring
Spicer 90-4-11-1 End Yoke
End Yoke | 90-4-11-1
- Series: ∙ SPL 90
- Spline Count: 34
- Spline OD: 1.790"
- Bore Length: 2.250"
- Cap OD: 1.625"
- Yoke Span: 4.957"
- Hub Dia.: 2.190"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , SPL 90
- Spline Count: 34
- Spline OD: 1.790"
- Bore Length: 2.250"
- Cap OD: 1.625"
- Yoke Span: 4.957"
- Hub Dia.: 2.190"
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 90-4-251-1X End Yoke
End Yoke | 90-4-251-1X
- Series: ∙ SPL 90
- Spline Count: 39
- Spline OD: 2.024”
- Bore Length: 2.281”
- Cap OD: 1.625"
- Yoke Span: 4.657"
- Hub Dia.: 3.000”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , SPL 90
- Spline Count: 39
- Spline OD: 2.024”
- Bore Length: 2.281”
- Cap OD: 1.625"
- Yoke Span: 4.657"
- Hub Dia.: 3.000”
- Style: Outside Snap Ring
- Rear Axle Type:

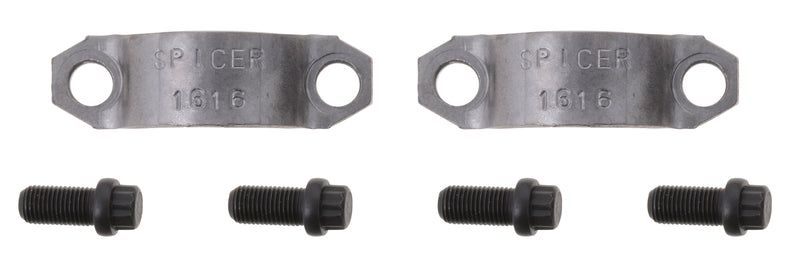

Spicer 90-70-28X U-Joint Strap Kit
Hardware | 90-70-28X
- Strap Kit
- Series: SPL 90 / SPL 100
- CL-CL Bolt Holes: 2.31"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.63"
- Thread Size:0.38"-24
- Strap Kit
- Series: SPL 90 / SPL 100
- CL-CL Bolt Holes: 2.31"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.63"
- Thread Size:0.38"-24
