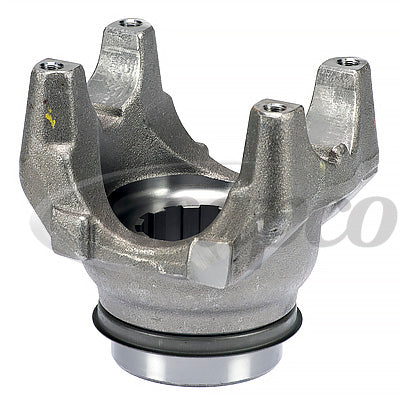

Neapco N250-4-241-1X End Yoke

Vendor: Neapco, Sku: N250-4-241-1X

Previous Product | Next Product

Product Description

Drive Shaft End Yoke

Notes Specs Applications

The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

U-Joint Series:	SPL 250
U-Joint Cap Diameter (A):	2.362 Inch
U-Joint Width (B):	6.417 Inch
End Yoke Length(C) : - Center Line to End of Spline	6.300 Inch
Hub Diameter (D):	3.750 Inch
Spline Diameter (E): - From Farthest Point to Farthest Point	2.750 Inch
Number of Splines (F):	10
Bore Length (G):	3.000 Inch
Joint Angle:	25.0 Degree

VMRS: 024001003

How to Measure a Driveshaft Slip Yoke.

Applications

****

Alternate Part Number:
Spicer 250-4-241-1X End Yoke

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help: CHAT | CONTACT US | (574)287-9650

Sku: N250-4-241-1X

Vendor: Neapco

$227.67
