Neapco N170-4-201-1X End Yoke

Vendor: Neapco, Sku: N170-4-201-1X

Previous Product | Next Product

Product Description

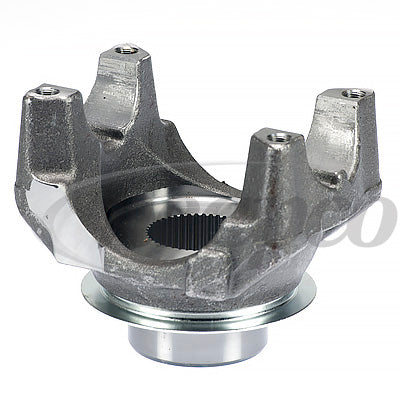

Drive Shaft End Yoke / Pinion Yoke

Notes Specs Applications

The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

U-Joint Series:	SPL 170
U-Joint Cap Diameter (A):	2.165 Inch
U-Joint Width (B):	6.456 Inch
End Yoke Length(C) : - Center Line to End of Spline	5.270 Inch
Hub Diameter (D):	3.000 Inch
Spline Diameter (E): - From Farthest Point to Farthest Point	2.274 Inch
Number of Splines (F):	44
Bore Length (G):	2.500 Inch
Joint Angle:	25.0 Degree

VMRS: 024001003

How to Measure a Driveshaft Slip Yoke.

Applications

****

This part is compatible with:
Neapco 6-1170 U-Joint

Alternate Part Number:
Spicer 170-4-201-1X End Yoke

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help: CHAT | CONTACT US | (574)287-9650

Sku: N170-4-201-1X

Vendor: Neapco

$221.52
