AMI 6.3-4-161-1 End Yoke

Vendor: Action Machine Inc., Sku: AMI_6.3-4-161-1

Previous Product | Next Product

Product Description

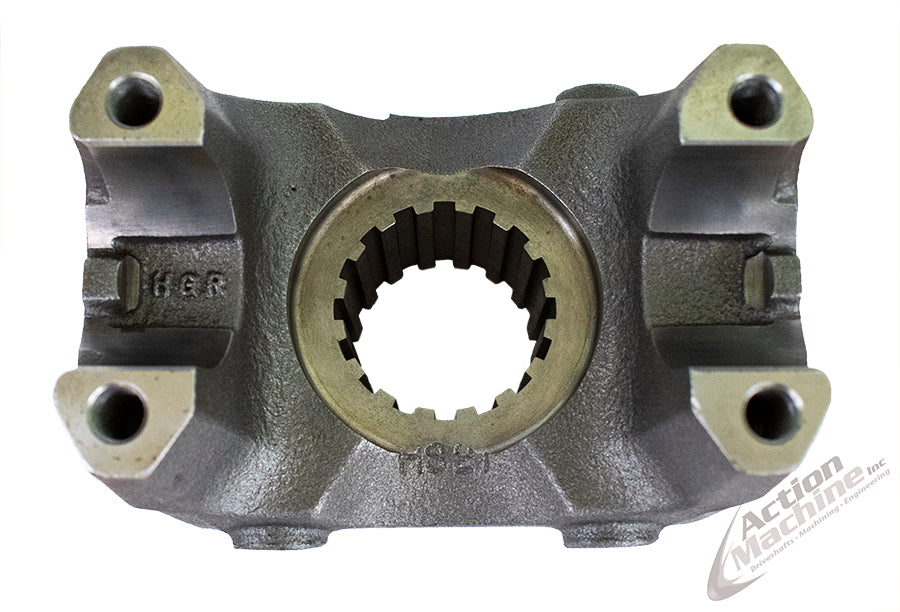

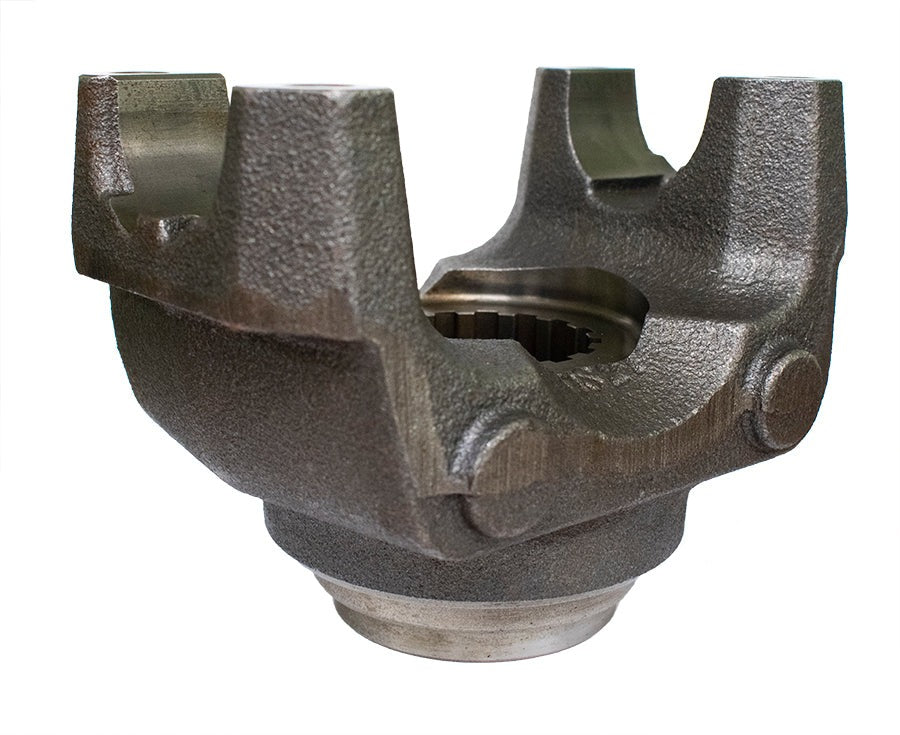

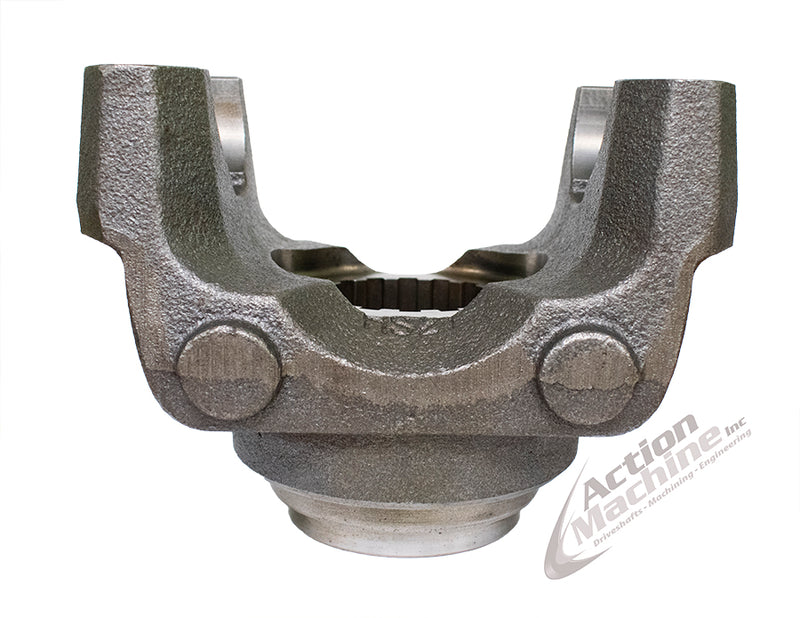

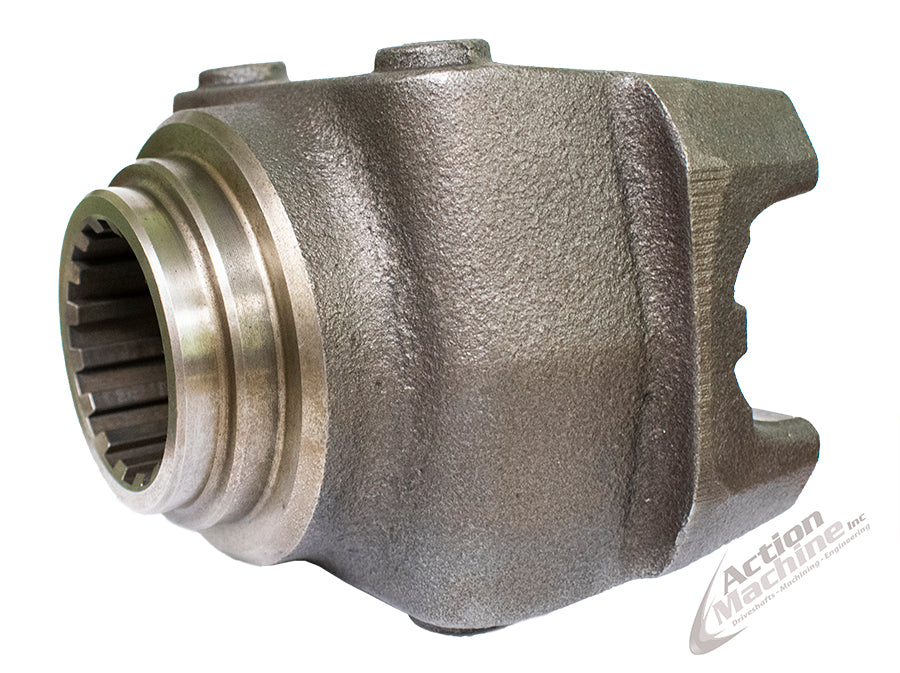

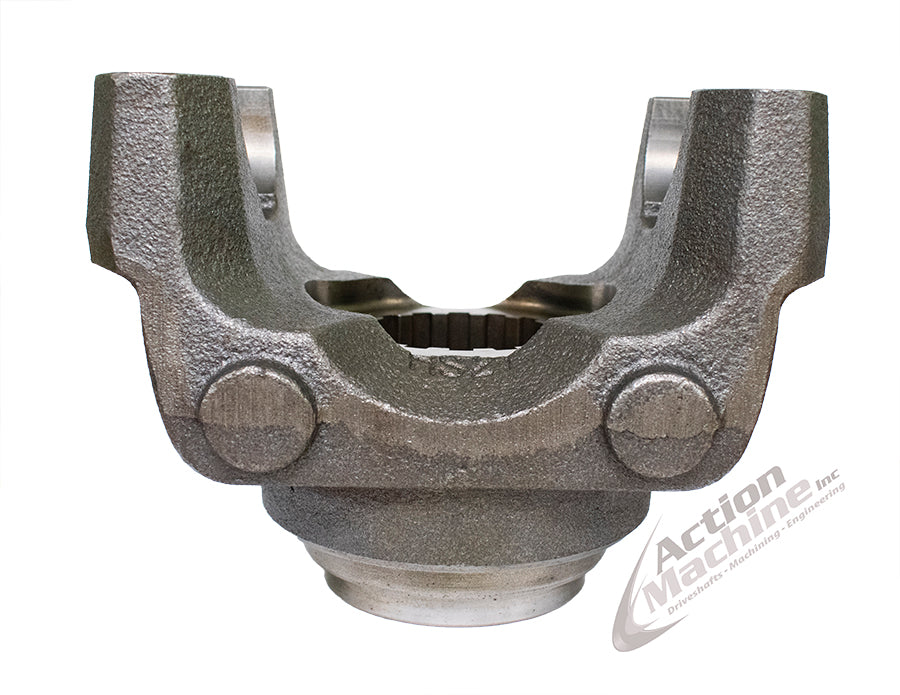

Drive Shaft End Yoke / Differential Yoke

Notes Specs Applications

The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

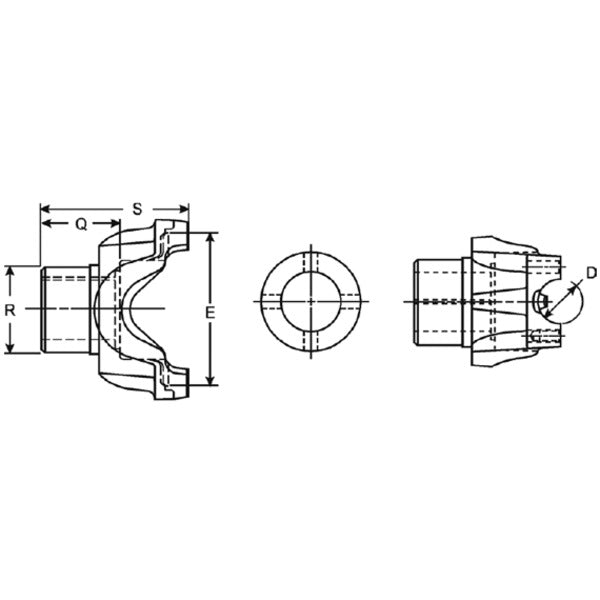

End/Pinion Yoke Specifications

U-Joint Series:	1760
Style:	Half Round
U-Joint Cap Diameter (A):	1.938 Inch
Outside Yoke Dimension:	7.000 Inch
End Yoke Length(C) : - Center Line to End of Spline	5.500 Inch
Hub Diameter (D):	2.875 Inch
Spline Diameter (E): - From Farthest Point to Farthest Point	2.350 Inch
Number of Splines (F):	16
Bore Length (G):	2.750 Inch
Joint Angle	30.0 Degrees

VMRS: 022003072

How to Measure a Driveshaft Slip Yoke.

Application:

Vehicle Information:

****

This part is compatible with:
Spicer 5-677X Half Round U-Joint

Alternate Part Numbers:
Spicer 6.3-4-161-1 End Yoke
Neapco N6.3-4-161-1 End Yoke

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help: CHAT | CONTACT US | (574)287-9650

Sku: AMI_6.3-4-161-1

Vendor: Action Machine Inc.

$137.58

Maximum quantity available reached.
