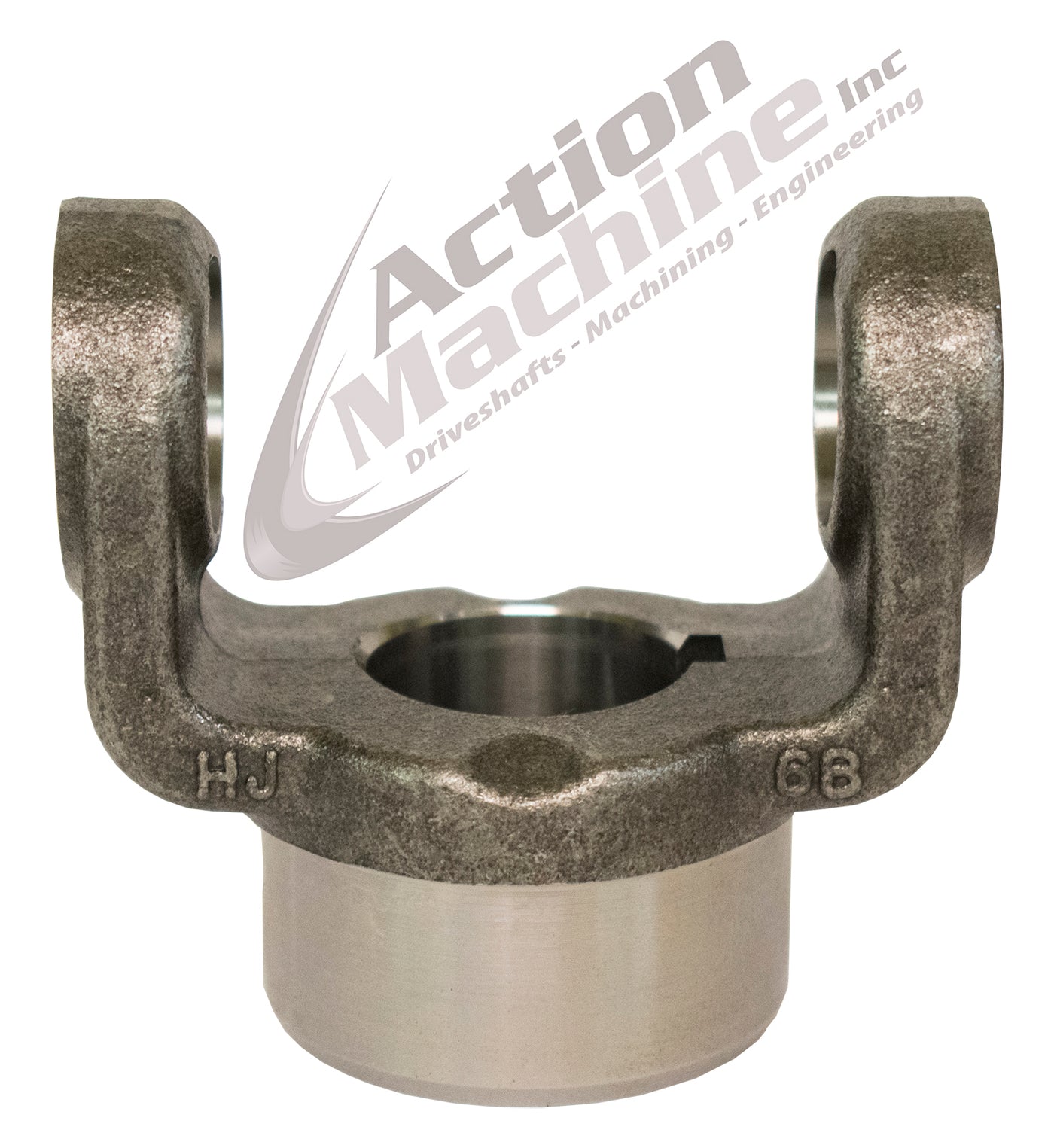

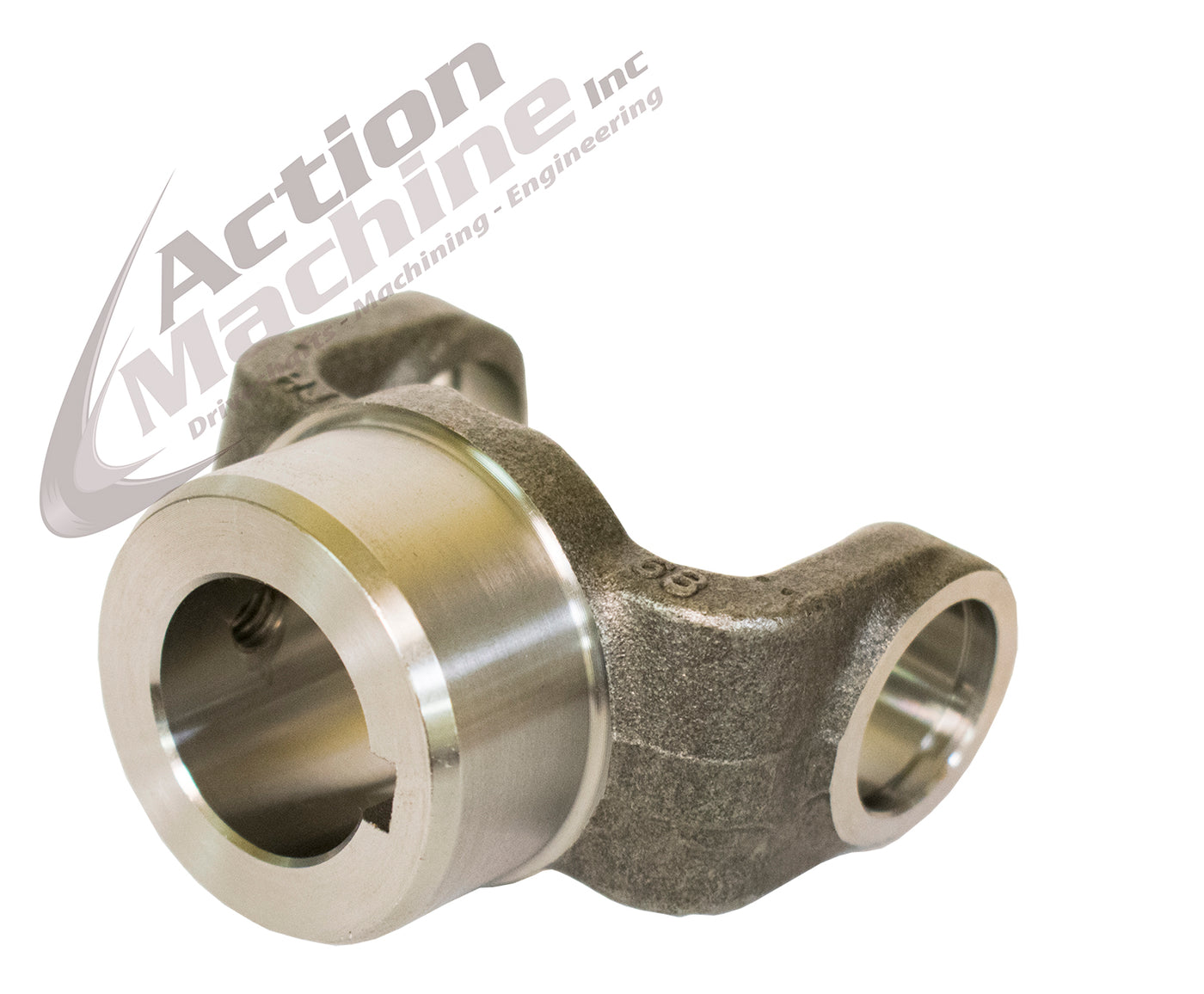

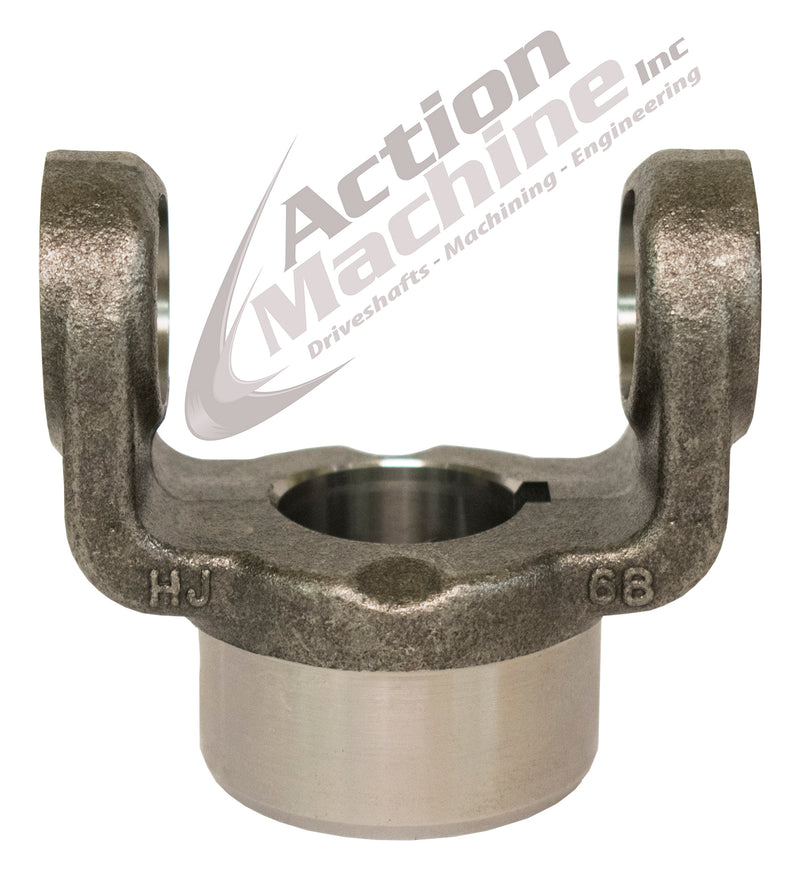

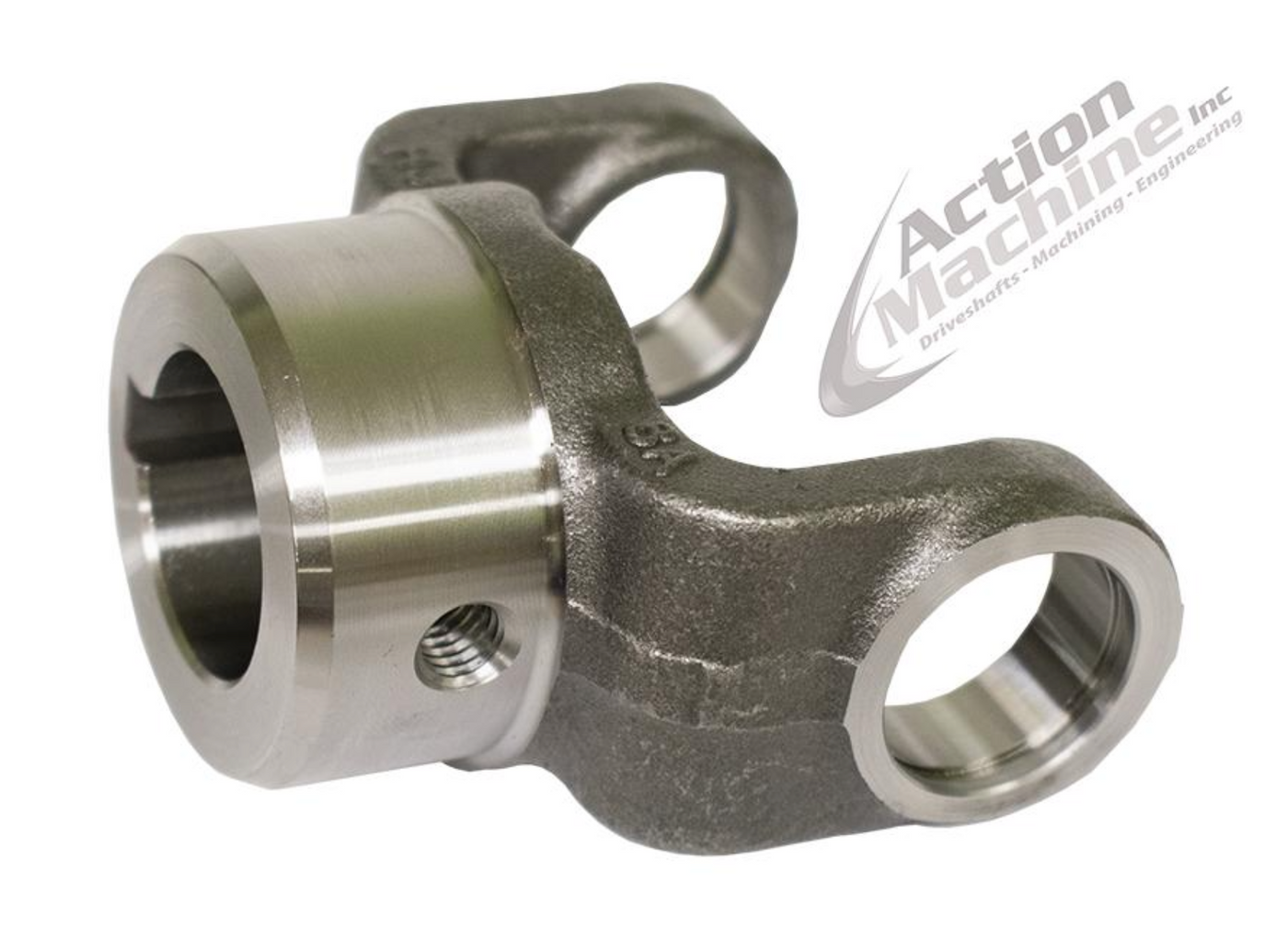

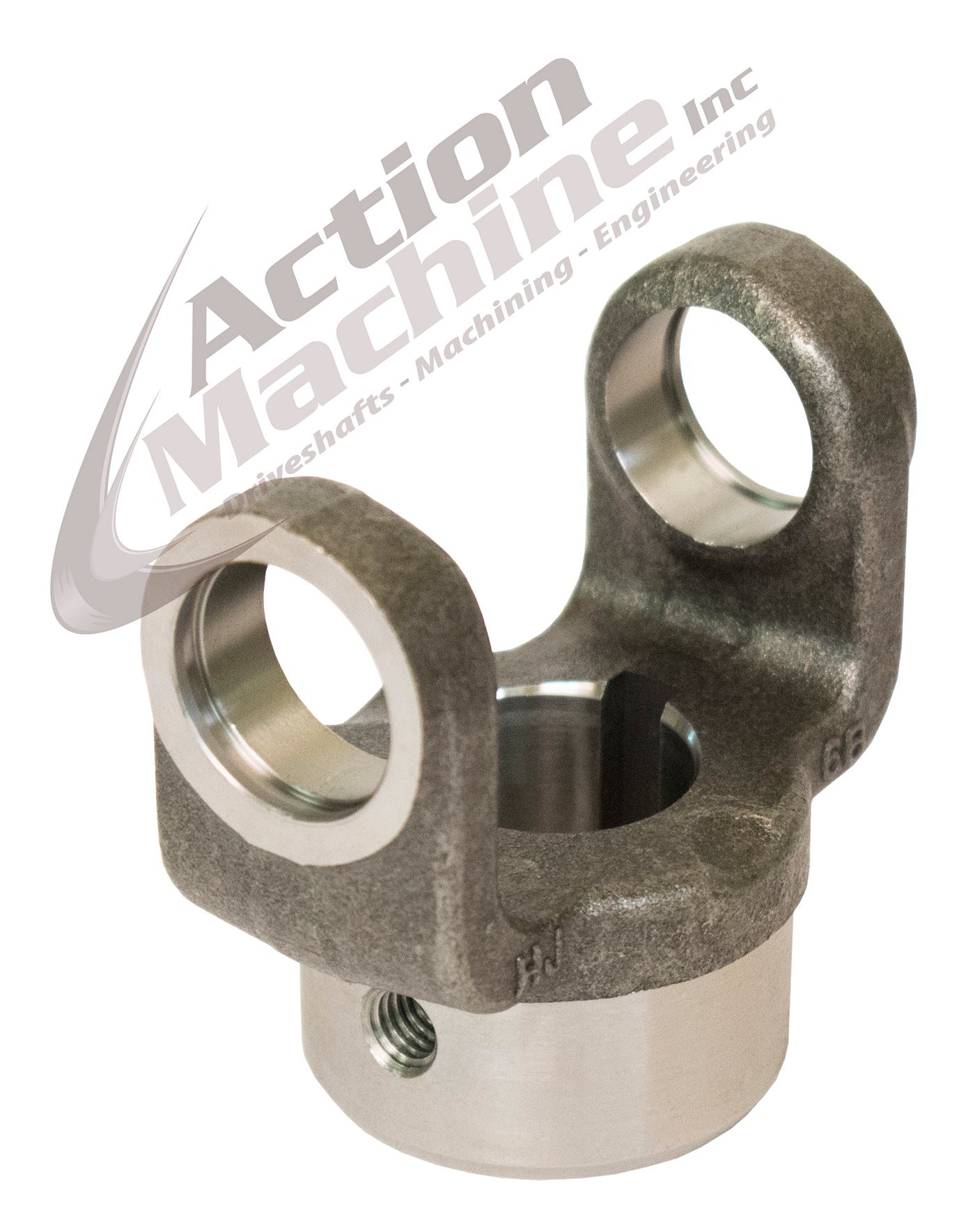

AMI 2-4-533 PTO End Yoke

Vendor: Action Machine Inc., Sku: AMI_2-4-533

Previous Product | Next Product

Product Description

Power Take Off End Yoke

Agricultural/Industrial PTO End yoke

The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

PTO End/Pinion Yoke Specifications

Manufacturer:	Action Machine INC
Manufacturer Part Number:	AMI 2-4-533
U-Joint Series:	1310
Style:	Outside Snap Ring
U-Joint Cap Diameter (A):	1.063 Inch
U-Joint Width (B):	3.219 Inch
End Yoke Length(C) : - Center Line to End of Spline	2.56 Inch
Hub Diameter (D):	2.000 Inch
Spline Diameter (E): - From Farthest Point to Farthest Point	1.250 Inch
Number of Splines (F):	Keyway
Bore Length (G):	1.62 Inch
Hole Diameter - Max / MIN	1.251 / 1.250 Inch
Keyway Width - Max / MIN	0.3155 / 0.3135 Inch
Keyway Location	12
Set Screw Location	6
Sae Keyway Width	0.312 Inch
Set Screw Hole Diameter	0.375 Inch

VMRS: 024001003

Alternate Part Numbers:
Spicer 2-4-533 PTO End Yoke
Neapco N2-4-533 PTO End Yoke
PTI P2-4-533 PTO End Yoke
Meritor 131N-4-533 PTO End Yoke

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:
CHAT | CONTACT US | (574)287-9650

Sku: AMI_2-4-533

Vendor: Action Machine Inc.

$29.39
