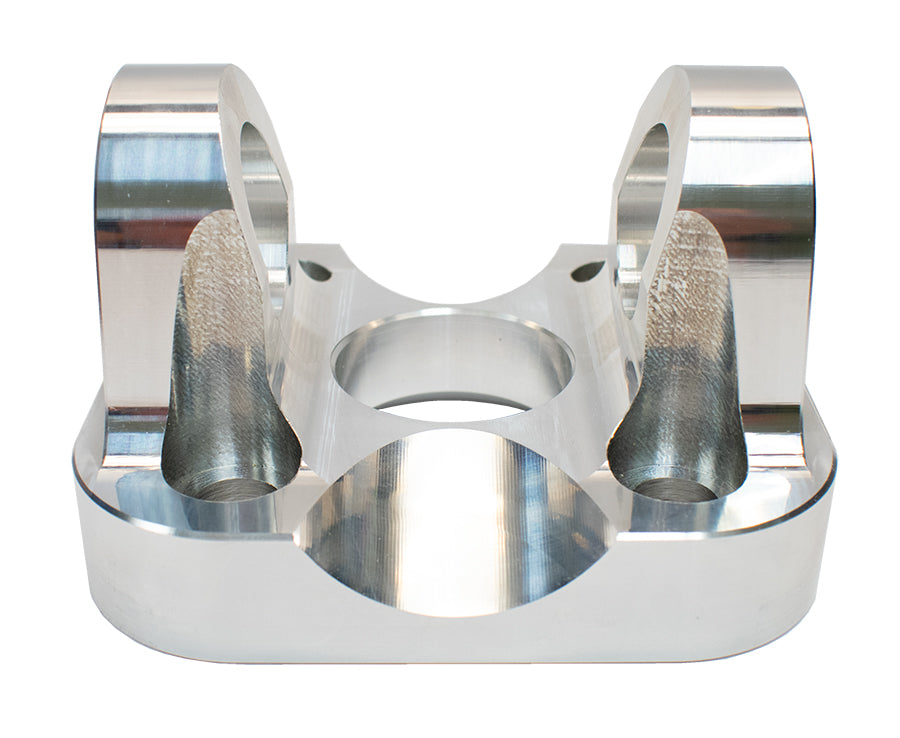

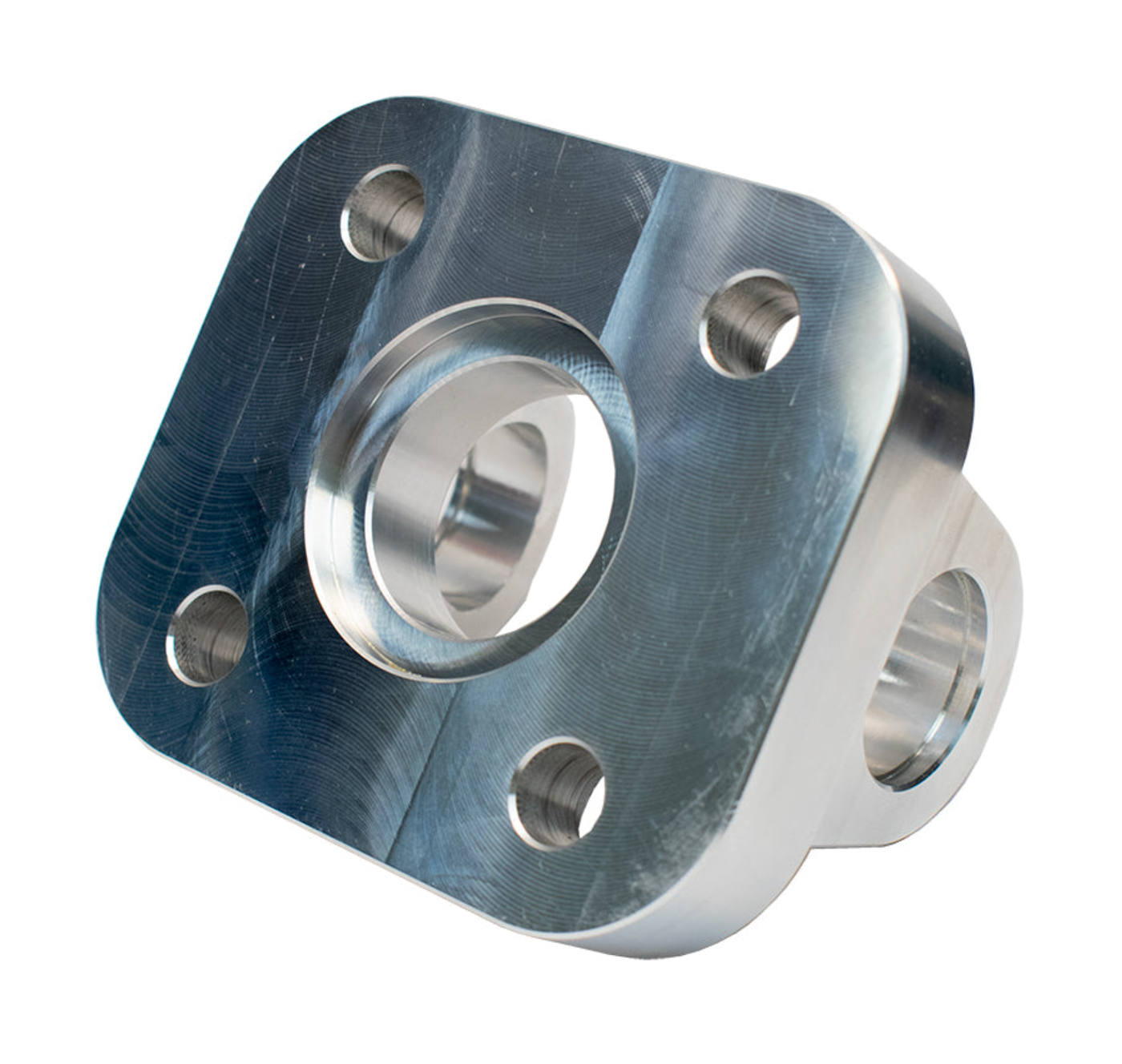

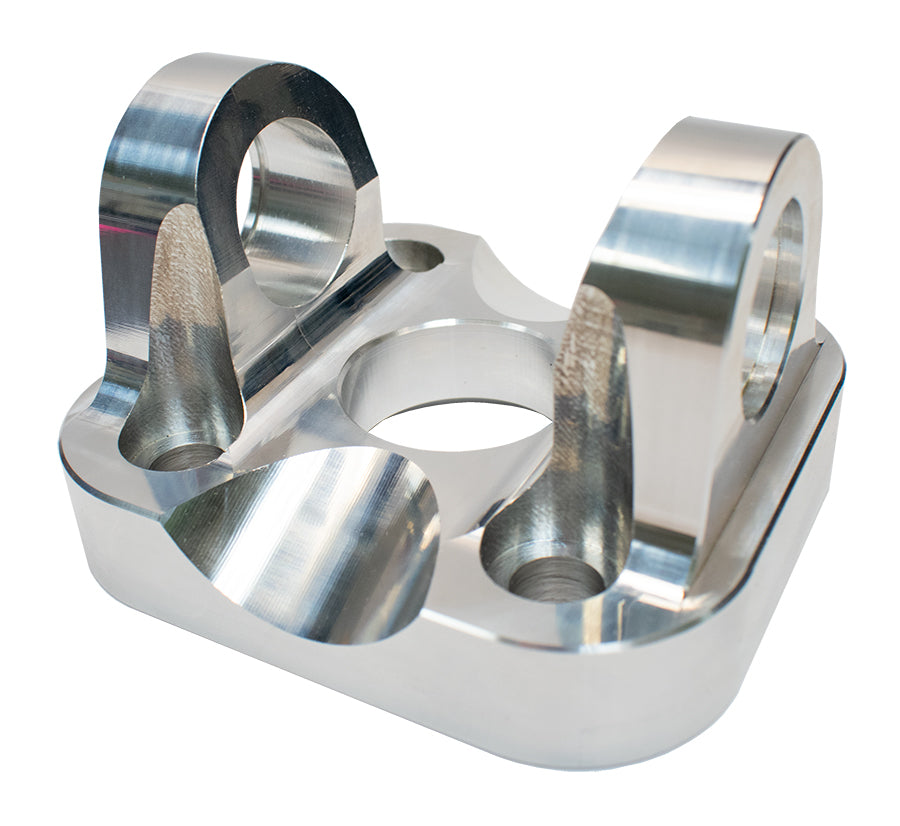

AMI 3-2-949 Flange Yoke

Vendor: Action Machine Inc., Sku: AMI_3-2-949

Previous Product | Next Product

Product Description

Series: 1350
Pilot Dia.: 2.000" F
Outside Snap Ring

Cap: 1.188" Width: 3.625"
Bolt Circle: 3.500"
Manufacturer: Action Machine Inc.

Series: 1350
Pilot Dia.: 2.000" F
Outside Snap Ring
Cap: 1.188" Width: 3.625"
Bolt Circle: 3.500"
Manufacturer: Action Machine Inc.

DRIVESHAFT FLANGE YOKE

Specifications

Driveline Series:	1350
U-joint Lock Up:	3.625 Inch
Bearing Cap Diameter:	1.188 Inch
Bolt Circle:	3.50 Inch
Flange Face to CL:	1.812 Inch
Hole Size:	0.516 Inch
Material:	6061-T6 Aluminum
Number of Bolt Holes:	4
Pilot Diameter:	2.000 Inch Female
Vehicle:	Mustang

VMRS: 024002016

Compatible Parts
Spicer 5-1350X U-Joint

Alternate Part Numbers:
Spicer 3-2-949 Driveshaft Flange Yoke (Obsolete)
Sonnax T3-2-949A Flange Yoke

Sku: AMI_3-2-949

Vendor: Action Machine Inc.

$110.24

Maximum quantity available reached.

DETAILS

U-Joint Series:	1350
U-Joint Cap Size (B):	1.188"
U-Joint Width (A):	3.625"
Snap Ring Type:	Outside Snap Ring
Manufacturer:	Action Machine Inc.
Pilot Diameter (G):	2.000" F
Bolt Circle (E):	3.500"
Manufacturer Part Number:	AMI_3-2-949
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes:	4
OEM/Alternate Part Number:

“Outside
