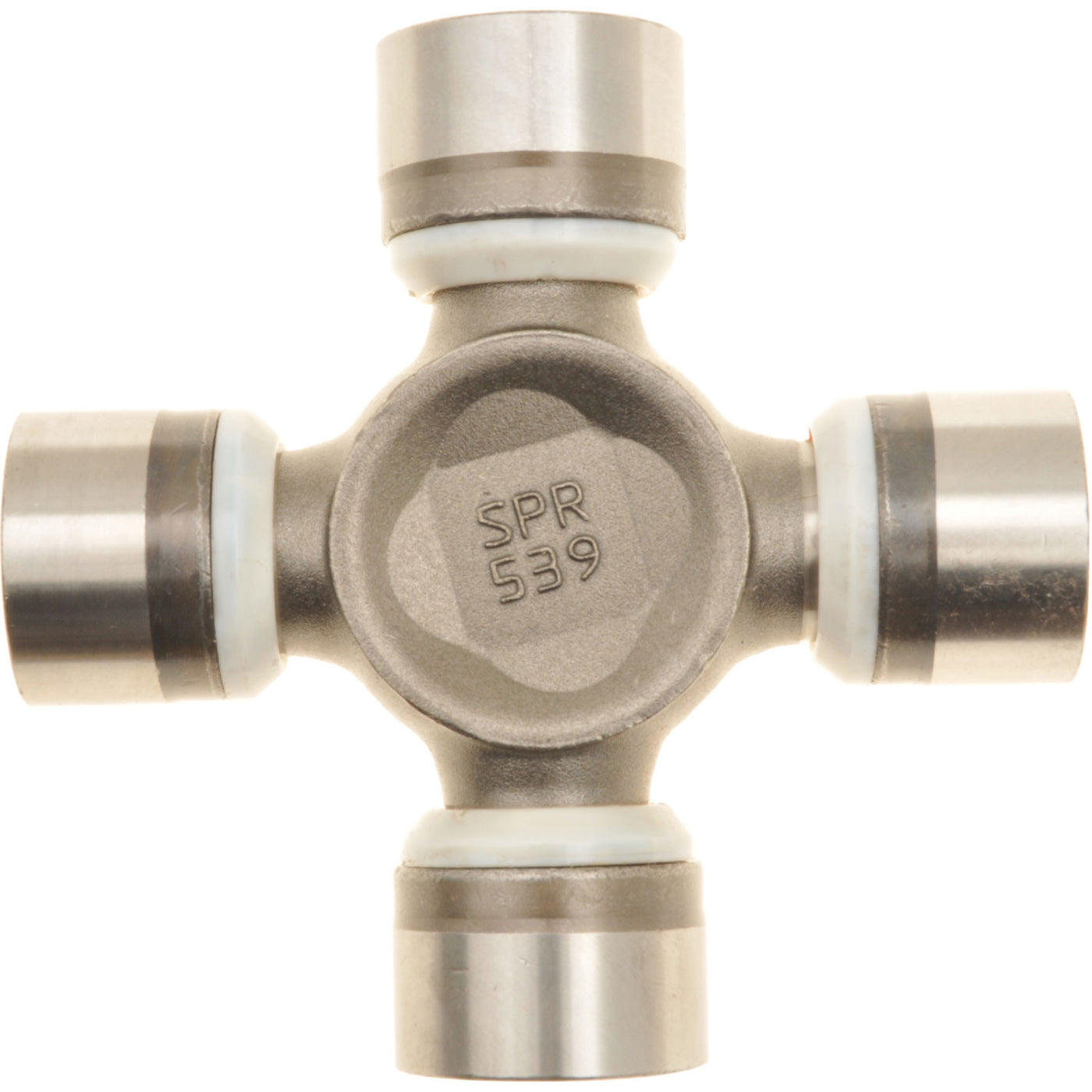

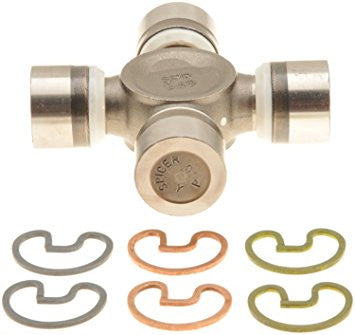

Spicer 5-7438X U-Joint

Vendor: Spicer/Dana, Sku: 5-7438X

Previous Product | Next Product

Product Description

Series: 1330 Special X 1330
Grease: Non-Greasable
Outside Snap Ring

Cap Size: 1.062" X 1.125"
Lock Up: 3.625"
Brand: Spicer/Dana

Series: 1330 Special X 1330
Grease: Non-Greasable
Outside Snap Ring
Cap Size: 1.062" X 1.125"
Lock Up: 3.625"
Manufacturer: Spicer/Dana

Driveshaft Universal Joint

Fits 1330 Special applications with 2 caps measure 1 1/8" and the other two measure 1 1/16". Nongreasable, outside snap ring U-joint.

Same U-joint as the old Spicer part # 5-792X.

Cold-forged from high-quality steel, Spicer Life Series® (SPL®) universal joints deliver the strength and durability that today’s performance vehicles demand.

Non-greaseable u-joint (pre-lubricated for the life of the part)
• For optimal friction reduction and higher temperature resistance
Synthetic thrust washer
• Eliminates friction and end galling
• Prevents the heat that breaks down grease
Multi-lip seal
• Keeps grease in—and contaminants out
• Offers maximum retention in a wider range of environments

	Cross 1	Cross 2
Series Conversion:	1330 Special	1330/SPL25
Bearing Cap Diameter:	1.125 Inch	1.062 Inch
Lock Up / Length: *Snap Ring to Snap Ring	3.625 Inch	3.625 Inch
Type:	Outside Snap Ring (OSR)
Grease Type:	Non-Greaseable
Snap Rings Included:	Yes
Material:	Steel
OEM/Alternate Part Number:	023913121211

VMRS: 024002046

Compatible Parts:
Spicer 2-70-18X U-Joint Strap Kit (1330)
Spicer 2-94-28X U-Bolt Kit (1330)
Spicer 2-94-58X U-Bolt Kit (1330 Special)

Sku: 5-7438X

Vendor: Spicer/Dana

$34.38

Maximum quantity available reached.

DETAILS

OEM Series:	1330 Special X 1330
Manufacturer:	Spicer/Dana
Greasable:	Non-Greasable
Snap Ring Type:	Outside Snap Ring
Manufacturer Part Number:	5-7438X
Bearing Cap Diameter:	1.062" X 1.125"
Lock Up:	3.625"
OEM/Alternate Part Number:	023913121211
