PTI 4103-321 Slip Yoke

Vendor: PTI, Sku: 4103-321

Previous Product | Next Product

Product Description

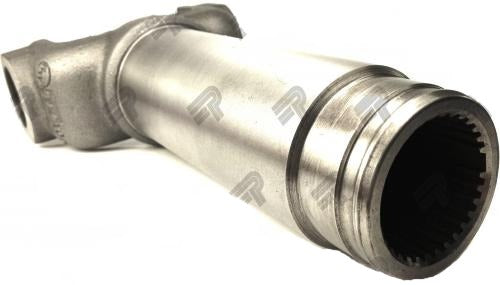

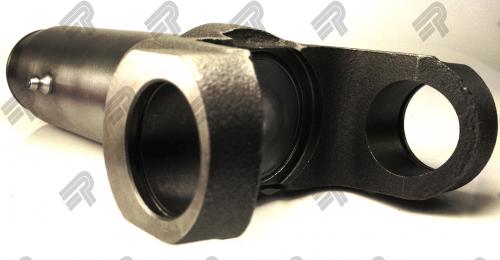

Slip Yoke Assembly - Driveshaft

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series:	1410 (1415)
Style:	Outside Snap Ring
Outside Yoke Dimension (B):	4.188 Inch
Bearing Cap Diameter (A):	1.188 Inch
Center Line To End Of Spline (C):	7.875 Inch
Center Line To Face Of Plug:	1.375 Inch
Spline Outside Diameter (E):	1.375 Inch
Number of Splines (F):	32 (31 and blind spot)
Involute:	Yes
Material:	Steel

VMRS: 024002038

Compatible Parts:
Spicer 5-1410X U-Joint
PTI 3R18-322 Boot Kit

Alternate Part Number:
AAM 26064291 Slip Yoke

Sku: 4103-321

Vendor: PTI

$174.66
