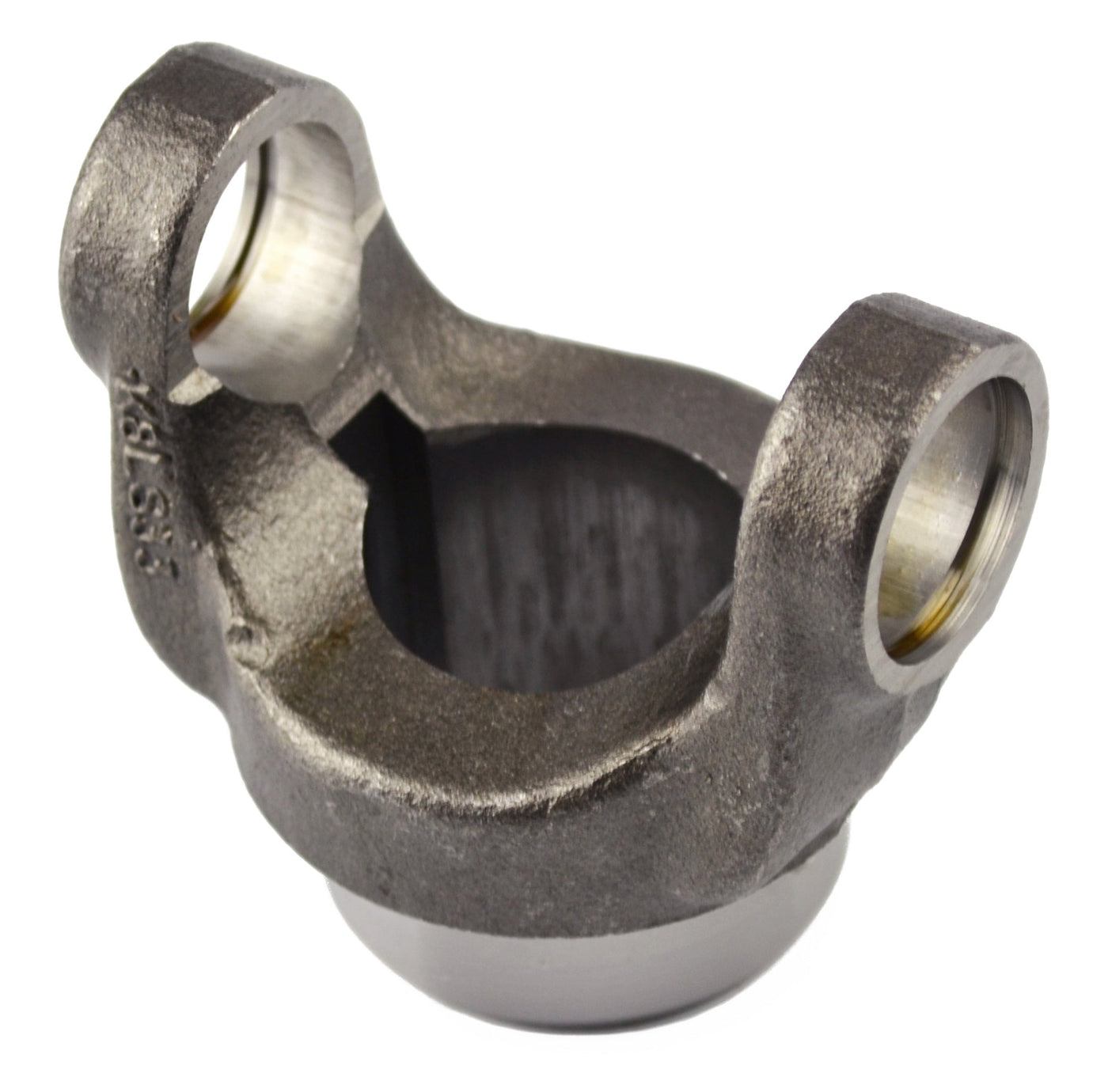

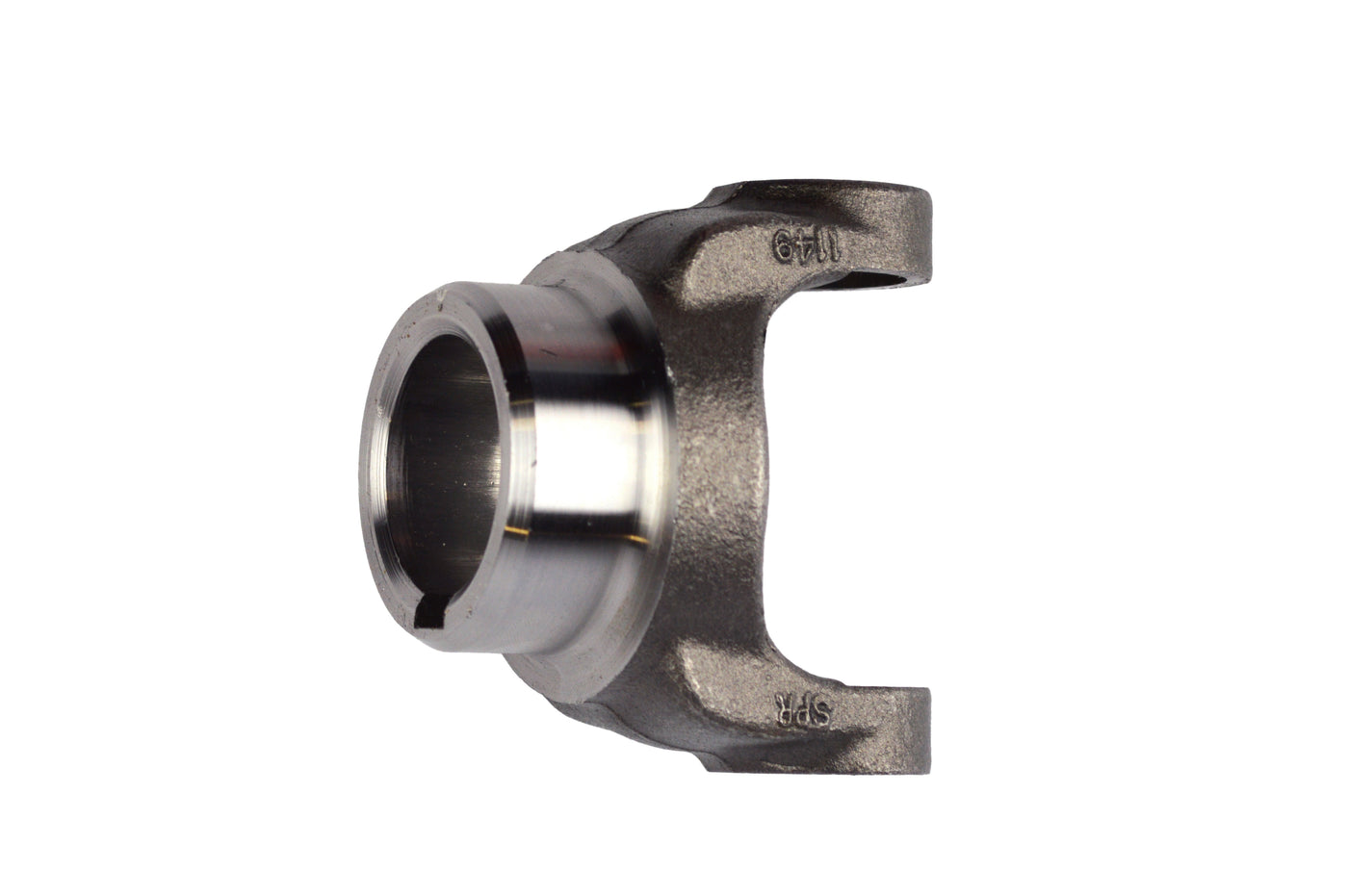

Spicer 2-4-1233 PTO End Yoke

Vendor: Spicer/Dana, Sku: 2-4-1233

Previous Product | Next Product

Product Description

Drive Shaft End Yoke / PTO

The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

U-Joint Series:	1310
Style:	Outside Snap Ring
U-Joint Cap Diameter (A):	1.063 Inch
U-Joint Width (B):	3.219 Inch
End Yoke Length(C) : - Center Line to End of Spline	2.562 Inch
Hub Diameter (D):	2.125 Inch
Hole Diameter (E):	1.500 Inch
Bore Length (G):
Hole Diameter - Max/Min	1.5005 / 1.4995 Inch
Keyway Width - Max/Min	0.375 / 0.374 Inch
Keyway Location	12
Joint Angle	17.0 Degrees
Set Screw Location:	6
Set Screw Width	0.375 Inch

VMRS: 024001003

Application:

PTO

This part is compatible with:
Spicer 5-153X U-Joint

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:
CONTACT US | CHAT | (574) 287-9650

Sku: 2-4-1233

Vendor: Spicer/Dana

$80.57
