Action Machine Inc. is a distributor of high quality driveshaft parts including cv parts, u-joints, center bearings, slip yokes, end yokes, flange yokes, and components from top manufactures like Neapco, Spicer, Powertrain and other quality brands.
Free Shipping on all orders over $100.00 within the USA.
Use the filters below to help narrow your selection. We have many products on hand and are constantly adding them to our website. If you do not see the product that you are looking for please contact us for assistance.
Hours: Monday - Friday, 7:00 am to 4:30 pm EST
CONTACT US | CHAT | (574) 287-9650
Driveshaft Parts
Filter Products
Series
- 1000
- 1210
- 1280
- 1310
- 1310 Special X 1310
- 1310 X 1350
- 1310WJ
- 1330
- 1330 Special
- 1330 Special X 1330
- 1330 X 1350
- 1330 X 3R
- 1344
- 1350
- 1355
- 1410
- 1480
- 1480WJ
- 1550
- 1710
- 1760
- 1810
- 2C X 2R
- 2R
- 3R
- 7260
- 7260 X 7290
- 7290
- MECHANICS 2C
- MECHANICS 4C
- O55
- S44
- S55
- SPL 100
- SPL 140
- SPL 170
- SPL 22
- SPL 25
- SPL 250
- SPL 36
- SPL 55
- SPL 90
U-Joint Type
Transmission Make
Transmission Model
- 200-R4
- 42RE
- 42RH
- 45RFE
- 46RE
- 46RH
- 47RE
- 47RH
- 48RE
- 4L60E
- 4L65E
- 4L80E
- 4L80E Long Tail
- 4L85E
- 545RFE
- 65RFE
- 6L50
- 6L80E
- 700R4
- 727
- 904
- A500
- A518
- A833
- Auto Gear
- AX15
- Borg Warner
- Doug Nash
- Jericho
- M-6
- M20
- M21
- M22
- Powerglide
- Richmond
- Saginaw
- SRT10
- Super T-10
- T-10
- T-5
- T375
- T56
- TH-350
- TH-400
- TH-400 Long Tail
- TorqueFlite 727
- Tremec
- Turbo 350
- Turbo 400
Transfer Case
Material
Tube Outside Diameter
Spline
Brand
Hardware
Year
Vehicle
Number of Bolt Holes
Bolt Circle
Bolt Hole Diameter
CV Part
Cap Size
Snap Ring to Snap Ring
Lock Up
Distance Between Bolts
Pilot Diameter
Wing Bearing Type

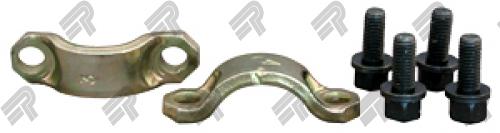

PTI 2970-20 U-Joint Strap Kit
Hardware | 2970-20
- Strap Kit
- Series: 7290
- CL-CL Bolt Holes: 1.53"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.12"
- Thread Size: 0.25"-28
- Strap Kit
- Series: 7290
- CL-CL Bolt Holes: 1.53"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.12"
- Thread Size: 0.25"-28
$12.10

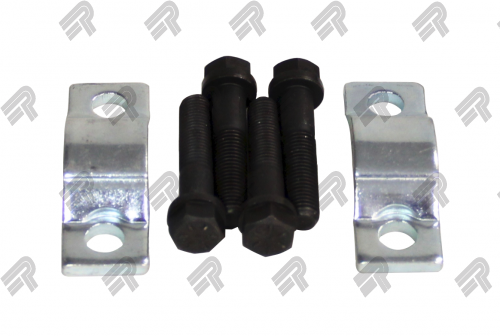

PTI 3570-20 U-Joint Strap Kit
Hardware | 3570-20
- Strap Kit
- Series: 1350 / 1410
- CL-CL Bolt Holes: 1.67"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.19"
- Thread Size: 0.31"-24
- Strap Kit
- Series: 1350 / 1410
- CL-CL Bolt Holes: 1.67"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.19"
- Thread Size: 0.31"-24
$14.05
Spicer 140-70-18X U-Joint Strap Kit
Hardware | 140-70-18X
- Strap Kit
- Series: SPL 140
- CL-CL Bolt Holes: 3.00"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 2.36"
- Thread Size: M12 X 1.25 6G
- Strap Kit
- Series: SPL 140
- CL-CL Bolt Holes: 3.00"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 2.36"
- Thread Size: M12 X 1.25 6G
$23.59
Spicer 170-70-18X U-Joint Strap Kit
Hardware | 170-70-18X
- Strap Kit
- Series: SPL 170
- CL-CL Bolt Holes: 3.23"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 2.17"
- Thread Size: M12 X 1.25 6G
- Strap Kit
- Series: SPL 170
- CL-CL Bolt Holes: 3.23"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 2.17"
- Thread Size: M12 X 1.25 6G
$24.48
Spicer 2-70-18X U-Joint Strap Kit
Hardware | 2-70-18X
- Strap Kit
- Series: 1210 / 1310 / 1330
- CL-CL Bolt Holes: 1.59"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.06"
- Thread Size:0.25"-28
- Strap Kit
- Series: 1210 / 1310 / 1330
- CL-CL Bolt Holes: 1.59"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.06"
- Thread Size:0.25"-28
$9.28
Spicer 2-70-28X U-Joint Strap Kit
Hardware | 2-70-28X
- Strap Kit
- Series: 1310 / 1330
- CL-CL Bolt Holes: 1.59"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.06"
- Thread Size: 0.31"-24
- Strap Kit
- Series: 1310 / 1330
- CL-CL Bolt Holes: 1.59"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.06"
- Thread Size: 0.31"-24
$22.67

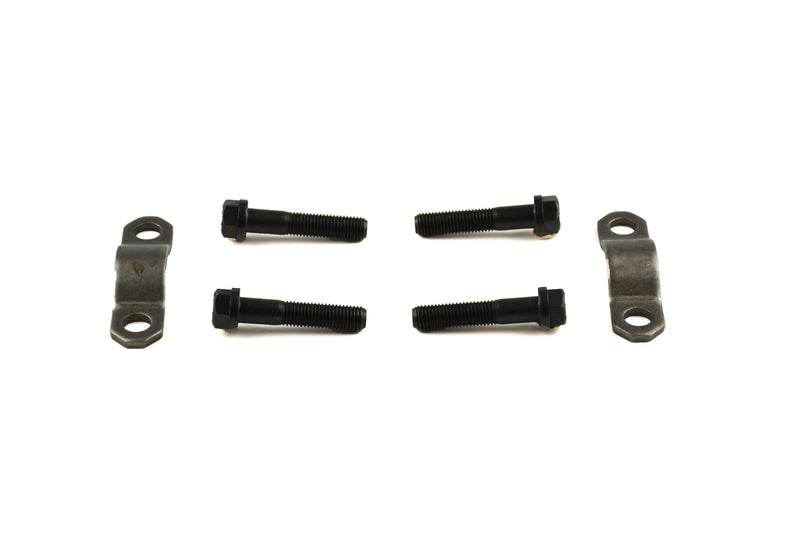

Spicer 2-70-48X U-Joint Strap Kit
Hardware | 2-70-48X
- Strap Kit
- Series: 3R
- CL-CL Bolt Holes: 1.81"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.13"
- Thread Size: 0.31"-24
- Strap Kit
- Series: 3R
- CL-CL Bolt Holes: 1.81"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.13"
- Thread Size: 0.31"-24
$7.50
Spicer 2-70-58X U-Joint Strap Kit
Hardware | 2-70-58X
- Strap Kit
- Series: 7290
- CL-CL Bolt Holes: 2.81"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.94"
- Thread Size: 0.50"-20
- Strap Kit
- Series: 7290
- CL-CL Bolt Holes: 2.81"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.94"
- Thread Size: 0.50"-20
$30.81

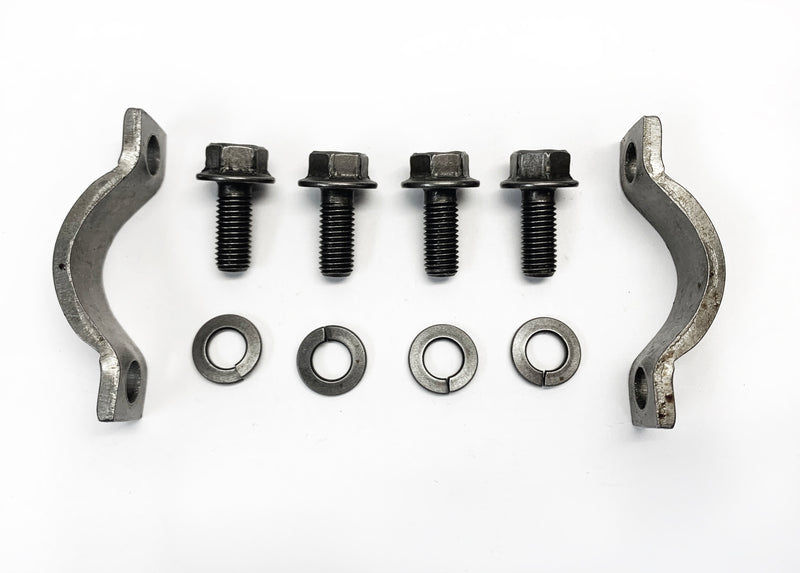

Spicer 2-70-68X Strap Kit
Hardware | 2-70-68X
- Strap Kit
- Series: 7260
- CL-CL Bolt Holes: 1.50"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.08"
- Thread Size: 0.25"-28
- Strap Kit
- Series: 7260
- CL-CL Bolt Holes: 1.50"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.08"
- Thread Size: 0.25"-28
$9.84

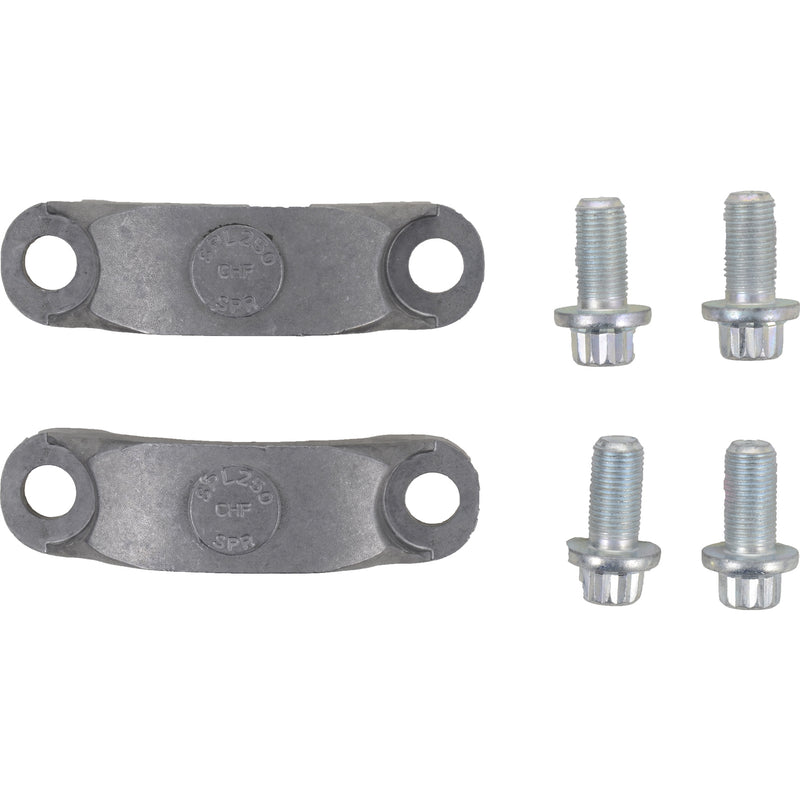

Spicer 250-70-18X U-Joint Strap Kit
Hardware | 250-70-18X
- Strap Kit
- Series: SPL 250
- CL-CL Bolt Holes: 3.44"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 2.36"
- Thread Size: M12 X 1.25 6G
- Strap Kit
- Series: SPL 250
- CL-CL Bolt Holes: 3.44"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 2.36"
- Thread Size: M12 X 1.25 6G
$21.67

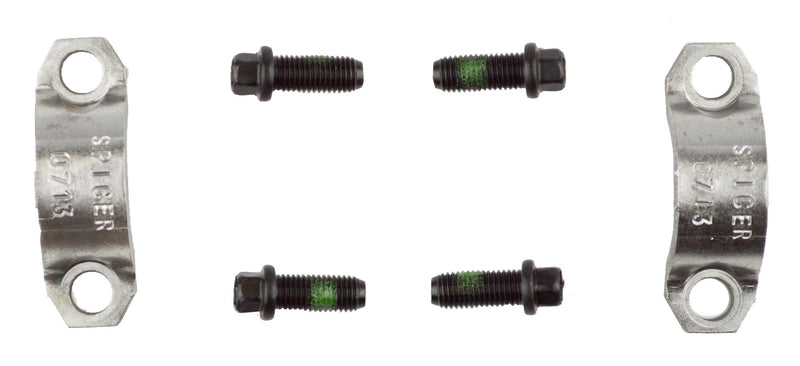

Spicer 3-70-28X U-Joint Strap Kit
Hardware | 3-70-28X
- Strap Kit
- Series: 1350 / 1410
- CL-CL Bolt Holes: 1.81"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.19"
- Thread Size: 0.31"-24
- Strap Kit
- Series: 1350 / 1410
- CL-CL Bolt Holes: 1.81"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.19"
- Thread Size: 0.31"-24
$9.48

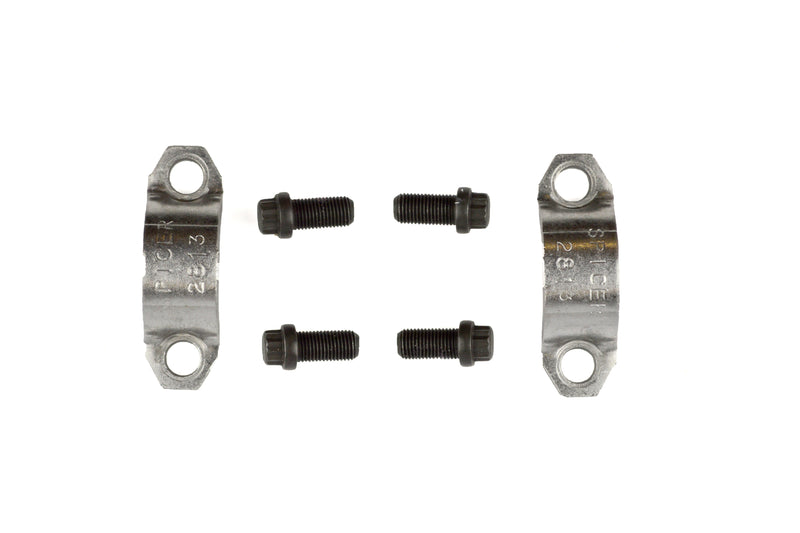

Spicer 3-70-38X U-Joint Strap Kit
Hardware | 3-70-38X
- Strap Kit
- Series: 1480 / 1550
- CL-CL Bolt Holes: 2.13"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.38"
- Thread Size: 0.37"-24
- Strap Kit
- Series: 1480 / 1550
- CL-CL Bolt Holes: 2.13"
- Qty: 2 Straps / 4 Bolts
- Fits Cap Dia.: 1.38"
- Thread Size: 0.37"-24
$11.43 - $432.76
