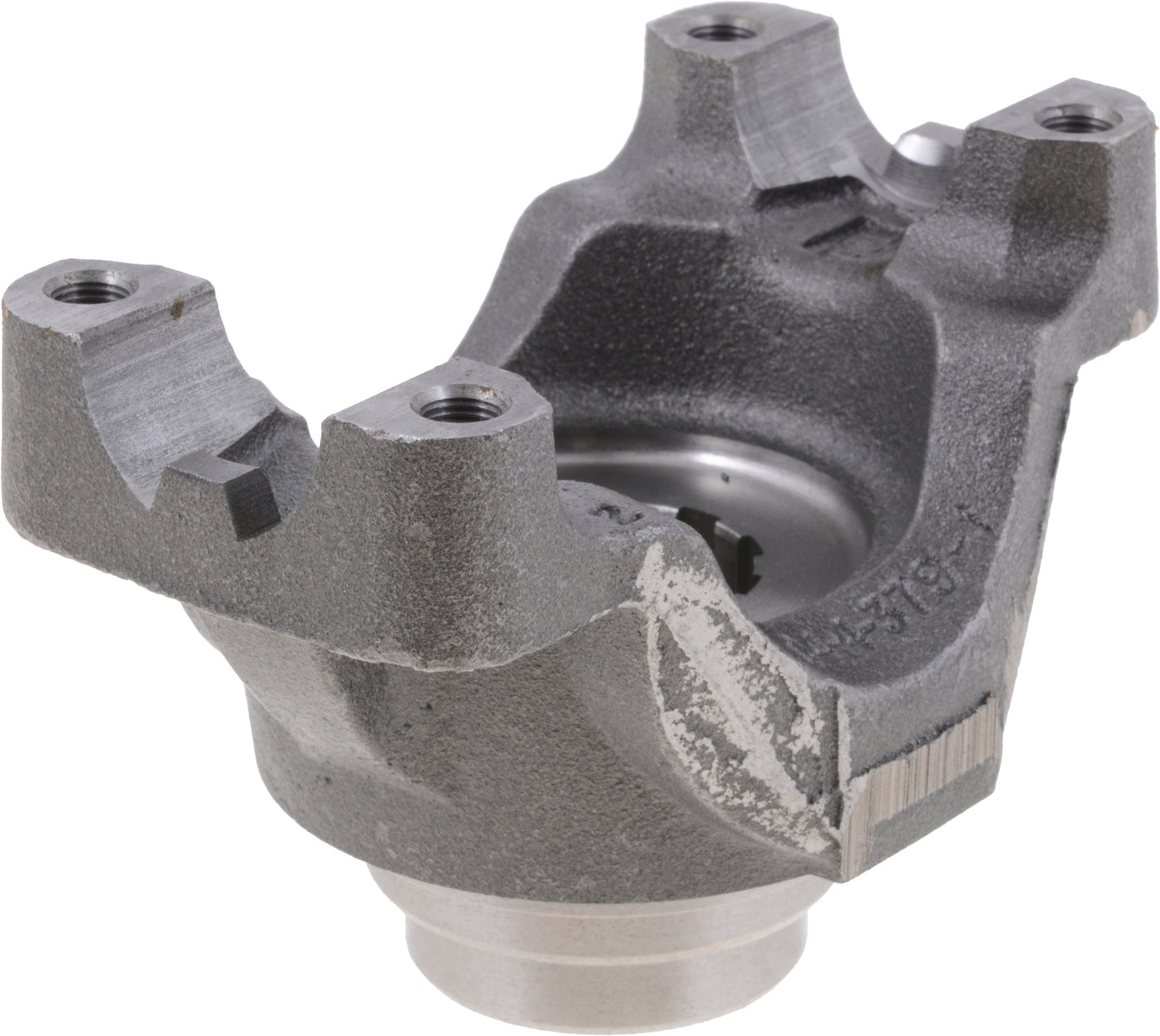

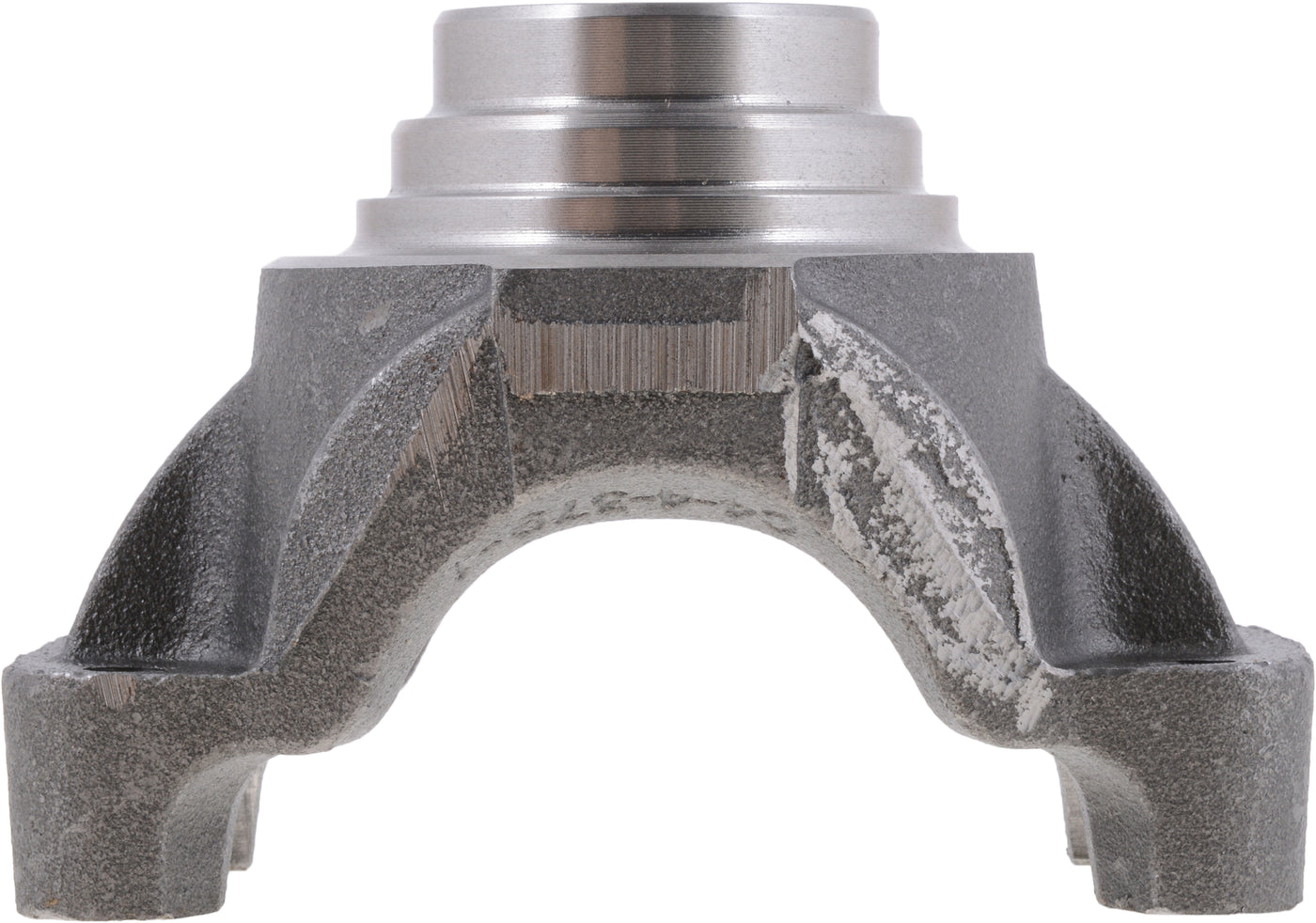

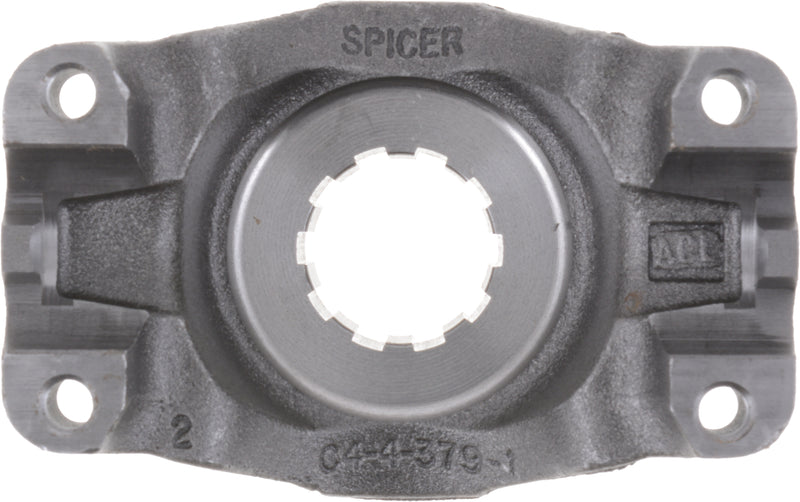

Spicer 4-4-2051-1 Coupling Shaft End Yoke

Vendor: Spicer/Dana, Sku: 4-4-2051-1

Product Description

Coupling Shaft End Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



Manufacturer: Spicer/Dana
Manufacturer Part Number: 4-4-2051-1
U-Joint Series: 1550
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.375 Inch
U-Joint Width (B): 4.969 Inch
End Yoke Length(C) :
- Center Line to End of Spline
3.775 Inch
Hub Diameter (D): 2.312 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.500 Inch
Number of Splines (F): 10
Bore Length (G): 2.000 Inch
Joint Angle:
22.0 Degree

VMRS: 022003072


How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****


This part is compatible with:
Spicer 3-70-38X U-Joint Strap Kit
Spicer SPL70X U-Joint

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
