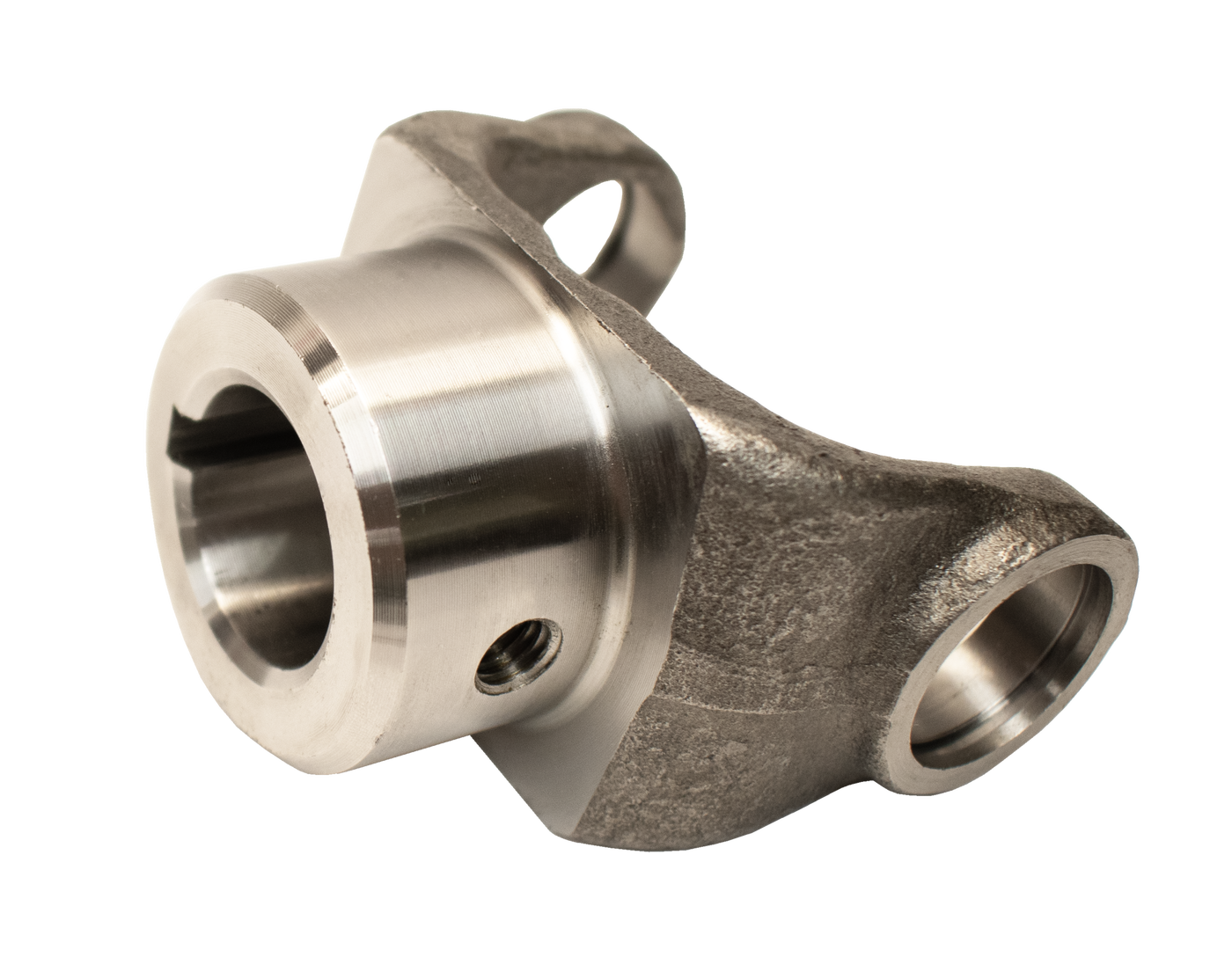

AMI 2-4-503 PTO End Yoke

Vendor: Action Machine Inc., Sku: AMI_2-4-503

Product Description

Drive Shaft End Yoke / PTO

The PTO end yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

U-Joint Series: 1310
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.063 Inch
U-Joint Width (B): 3.219 Inch
End Yoke Length(C) :
- Center Line to End of Spline
2.562 Inch
Hub Diameter (D): 2.125 Inch
Hole Diameter - Max/Min:
1.1255/1.1245 Inch
Keyway Width - Max/Min: 0.253/0.251 Inch
Keyway Location: 12
Set Screw Hole Diameter: 0.375 Inch
Set Screw Location: 6
Joint Angle:
17.0 Degree

VMRS: 056002014

Application:

PTO

This part is compatible with:
Spicer 5-153X U-Joint

Alternate Part Number:
Spicer 2-4-503 PTO End Yoke
Neapco N2-4-503 PTO End Yoke
PTI P2-4-503 PTO End Yoke

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:
CONTACT US |  CHAT | (574) 287-9650

Sku: AMI_2-4-503
$60.62
